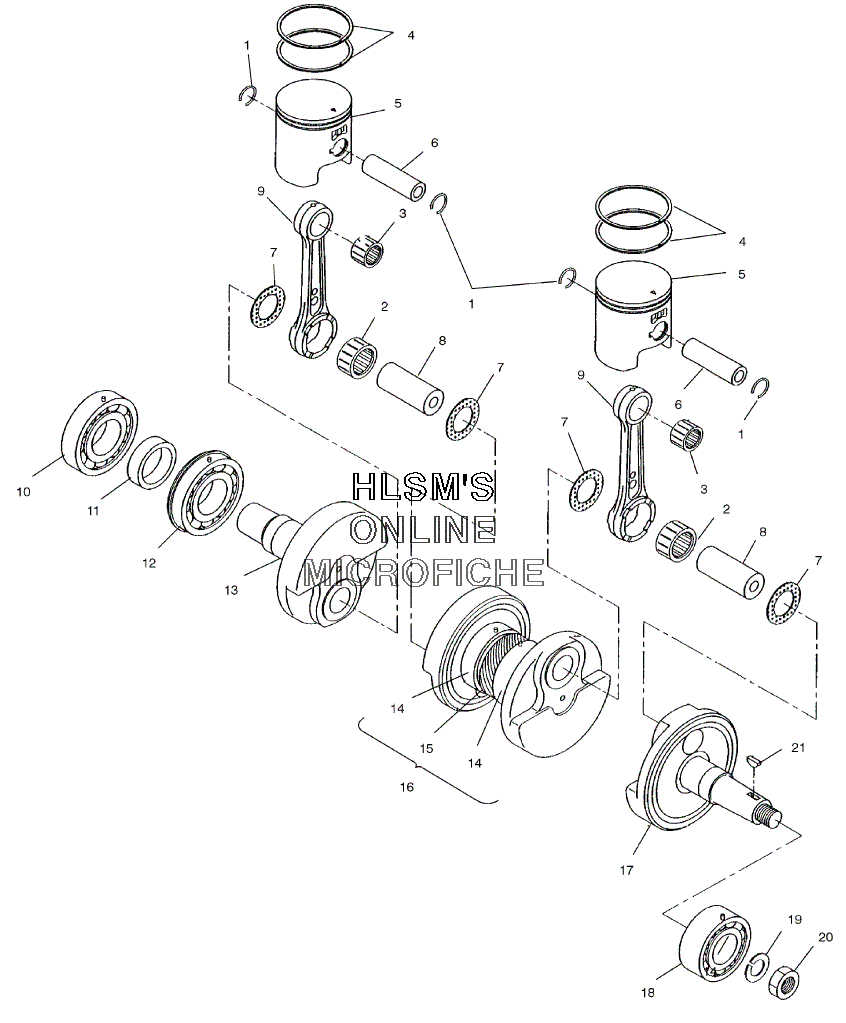

PISTON AND CRANKSHAFT для Polaris SUPERSPORT (WHITE) (S00SB5BS) - 2000 года выпуска
-
№АртикулНазвание
-
13084167 CLIP,CLIP,
-
23086390 BEARING-END, LARGEBEARING-END, LARGE
-
33083216 BEARING, SMALL ENDBEARING, SMALL END
-
43085708 RING, PISTON (STANDARD)RING, PISTON (STANDARD)
-
43085709 RING, PISTON (0.25MM/.010''O/S)RING, PISTON (0.25MM/.010''O/S)
-
43085710 RING, PISTON (0.50MM/.020''O/S)RING, PISTON (0.50MM/.020''O/S)
-
53085937 PISTON SET (STANDARD)PISTON SET (STANDARD)
-
53085939 PISTON SET (0.25 0/S) (0.25M/.010''O/S)PISTON SET (0.25 0/S) (0.25M/.010''O/S)
-
53085941 PISTON SET (0.50M/.020''O/S)PISTON SET (0.50M/.020''O/S)
-
63083838 PIN, PISTONPIN, PISTON
-
73083277 SPACER (CRANKPIN)SPACER (CRANKPIN)
-
83083456 PIN, CRANK, 2PIN, CRANK, 2
-
93240083 ROD, CONNECTINGROD, CONNECTING
-
103085754 BEARING, BALLBEARING, BALL
-
113085677 SPACERSPACER
-
123085753 BEARING, BALLBEARING, BALL
-
133085675 CRANKSHAFT #3, PTO SIDE (PTO SIDE)CRANKSHAFT #3, PTO SIDE (PTO SIDE)
-
143084586 BEARING, BALLBEARING, BALL
-
153083780 DRIVEGEAR, OILPUMPDRIVEGEAR, OILPUMP
-
163085674 CRANKSHAFT #2 (INCL. 8, 14, 15)CRANKSHAFT #2 (INCL. 8, 14, 15)
-
173085672 ASSY., CRANKSHAFT (INCL. 7-9, 10, 14-16)ASSY., CRANKSHAFT (INCL. 7-9, 10, 14-16)
-
173085673 CRANKSHAFT #1, MAG SIDE (MAG SIDE)CRANKSHAFT #1, MAG SIDE (MAG SIDE)
-
183084681 BEARING, BALLBEARING, BALL
-
193083094 WASHER, SPRINGWASHER, SPRING
-
203083093 NUTNUT
-
213080130 KEY WOODRUFFKEY WOODRUFF
