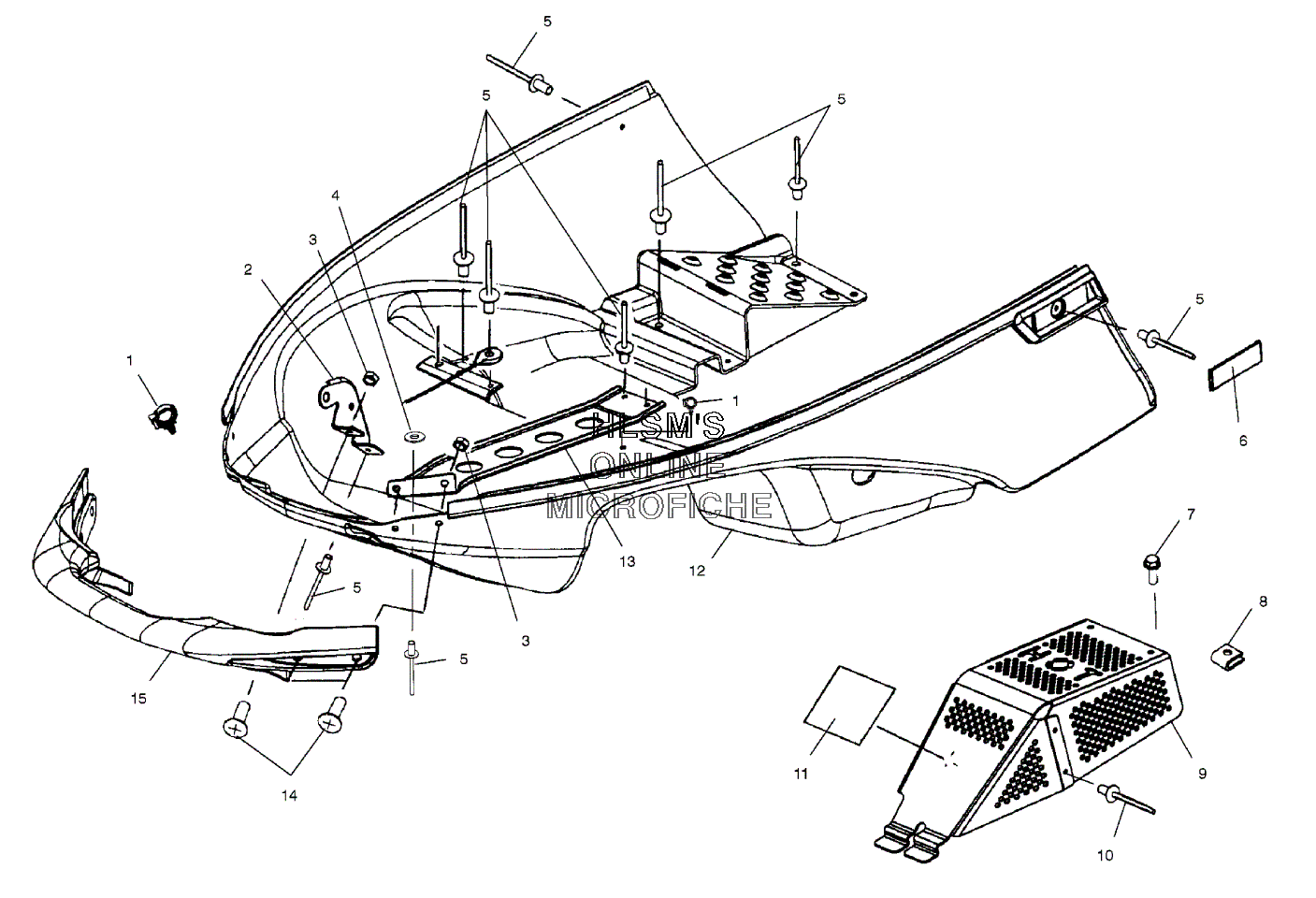

NOSEPAN ASSEMBLY для Polaris 120 XC SP (S01WB1AS) - 2001 года выпуска
-
№АртикулНазвание
-
17670102 CLIP, SILENCERCLIP, SILENCER
-
25244894 BRACKET, HINGE, NOSEPAN (LEFT)BRACKET, HINGE, NOSEPAN (LEFT)
-
25244895 BRACKET, HINGE, NOSEPAN (RIGHT)BRACKET, HINGE, NOSEPAN (RIGHT)
-
37542122 NUT, LOCKNUT, LOCK
-
47558212 WASHERWASHER
-
57621467 RIVET, BLINDRIVET, BLIND
-
62670134 REFLECTOR ASSY., AMBERREFLECTOR ASSY., AMBER
-
77512283 SCREW, SEMSSCREW, SEMS
-
87670096 NUTNUT
-
91013048 CLUTCH, GUARD/CHAIN, ASSY.CLUTCH, GUARD/CHAIN, ASSY.
-
107661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
117078389 DECAL, ENGINE AND CLUTCHDECAL, ENGINE AND CLUTCH
-
125433526-293 NOSEPAN-XJR (RED)NOSEPAN-XJR (RED)
-
135244079 BRACE-BUMPER (LEFT/FRONT)BRACE-BUMPER (LEFT/FRONT)
-
135244080 BRACE-BUMPER (RIGHT/FRONT)BRACE-BUMPER (RIGHT/FRONT)
-
147515166 SCREWSCREW
-
155433536-070 BUMPER (BLACK/FRONT)BUMPER (BLACK/FRONT)
