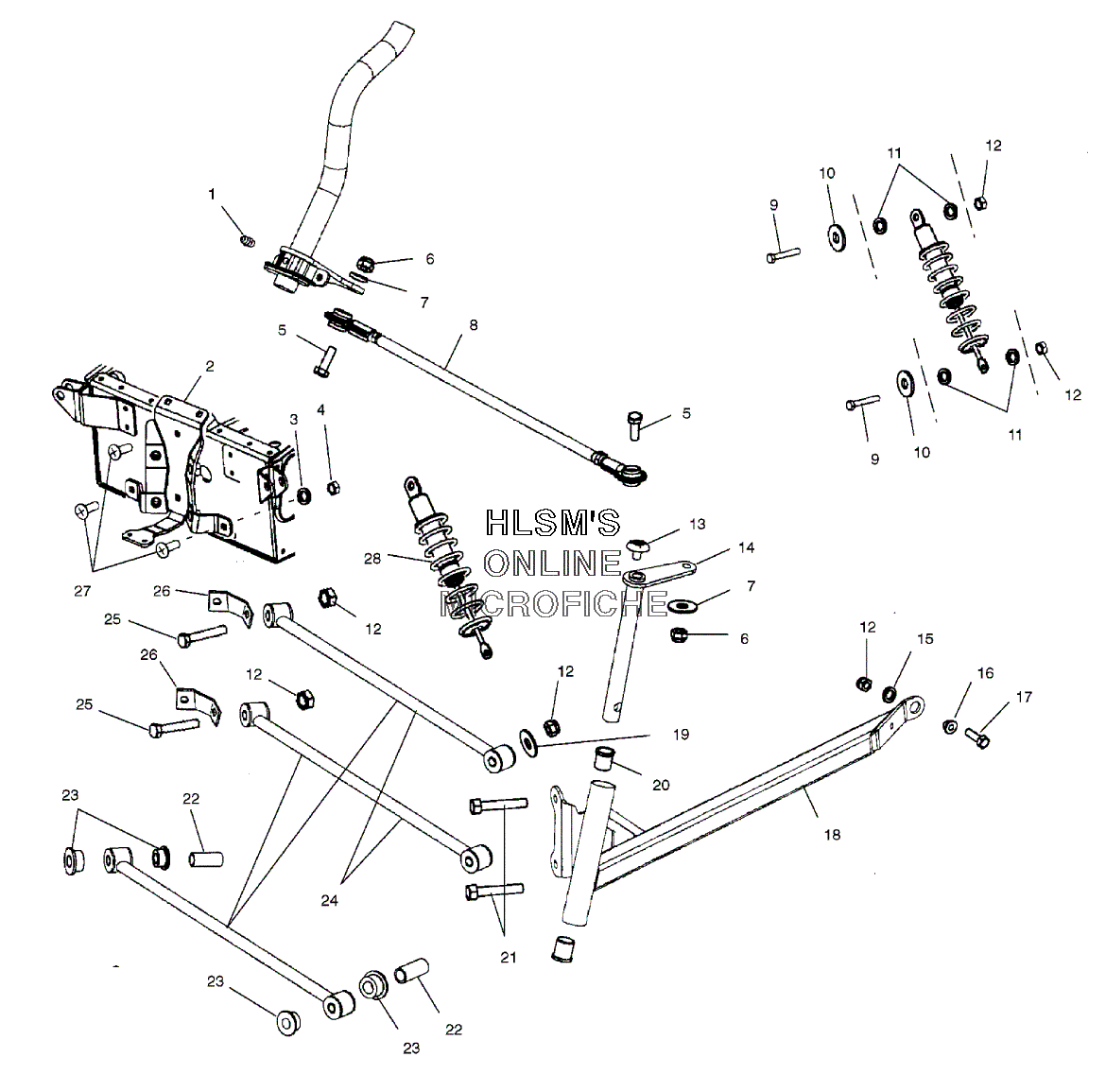

SUSPENSION - FRONT W/ STEERING для Polaris 120 XC SP (S01WB1AS) - 2001 года выпуска
-
№АртикулНазвание
-
17080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
25243858-067 BRKT, RADIUS ROD/STRPST MOUNT (BLACK)BRKT, RADIUS ROD/STRPST MOUNT (BLACK)
-
37558301 WASHERWASHER
-
47542122 NUT, LOCKNUT, LOCK
-
57515534 BOLTBOLT
-
67542451 NUT, NYLOCNUT, NYLOC
-
77558403 WASHER WROUGHTWASHER WROUGHT
-
81820767 TIE ROD ASSY.TIE ROD ASSY.
-
97517745 BOLT, SHLDR, 3/8X3/4X5/16BOLT, SHLDR, 3/8X3/4X5/16
-
107556160 WASHERWASHER
-
115433624 BUSHING, SHOCK MOUNTBUSHING, SHOCK MOUNT
-
127542324 NUTNUT
-
135433481 CAP, SPINDLECAP, SPINDLE
-
141820764 SPINDLESPINDLE
-
155433593 BUSHING (.78X.50X.134) EUROTHANEBUSHING (.78X.50X.134) EUROTHANE
-
165132329 BUSHING (.75 X .325) SSBUSHING (.75 X .325) SS
-
177512310 SCREWSCREW
-
181820774-293 TRAIL ARM (LEFT/RED)TRAIL ARM (LEFT/RED)
-
181820775-293 TRAIL ARM (RIGHT/RED)TRAIL ARM (RIGHT/RED)
-
197555734 WASHERWASHER
-
203514343 BUSHING, SPINDLE, 120XCRBUSHING, SPINDLE, 120XCR
-
217512329 BOLTBOLT
-
225333834 SPACER (.437X.322X.945)SPACER (.437X.322X.945)
-
235433547 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
241820780-293 RADIUS ROD (RED)RADIUS ROD (RED)
-
257517778 BOLT, 5/16-18X13/4BOLT, 5/16-18X13/4
-
265244330-067 BRACKET, SUPPORT, RADIUS ROD (BLACK)BRACKET, SUPPORT, RADIUS ROD (BLACK)
-
277512193 BOLTBOLT
-
281820768-293 SHOCK, IFS (RED)SHOCK, IFS (RED)
