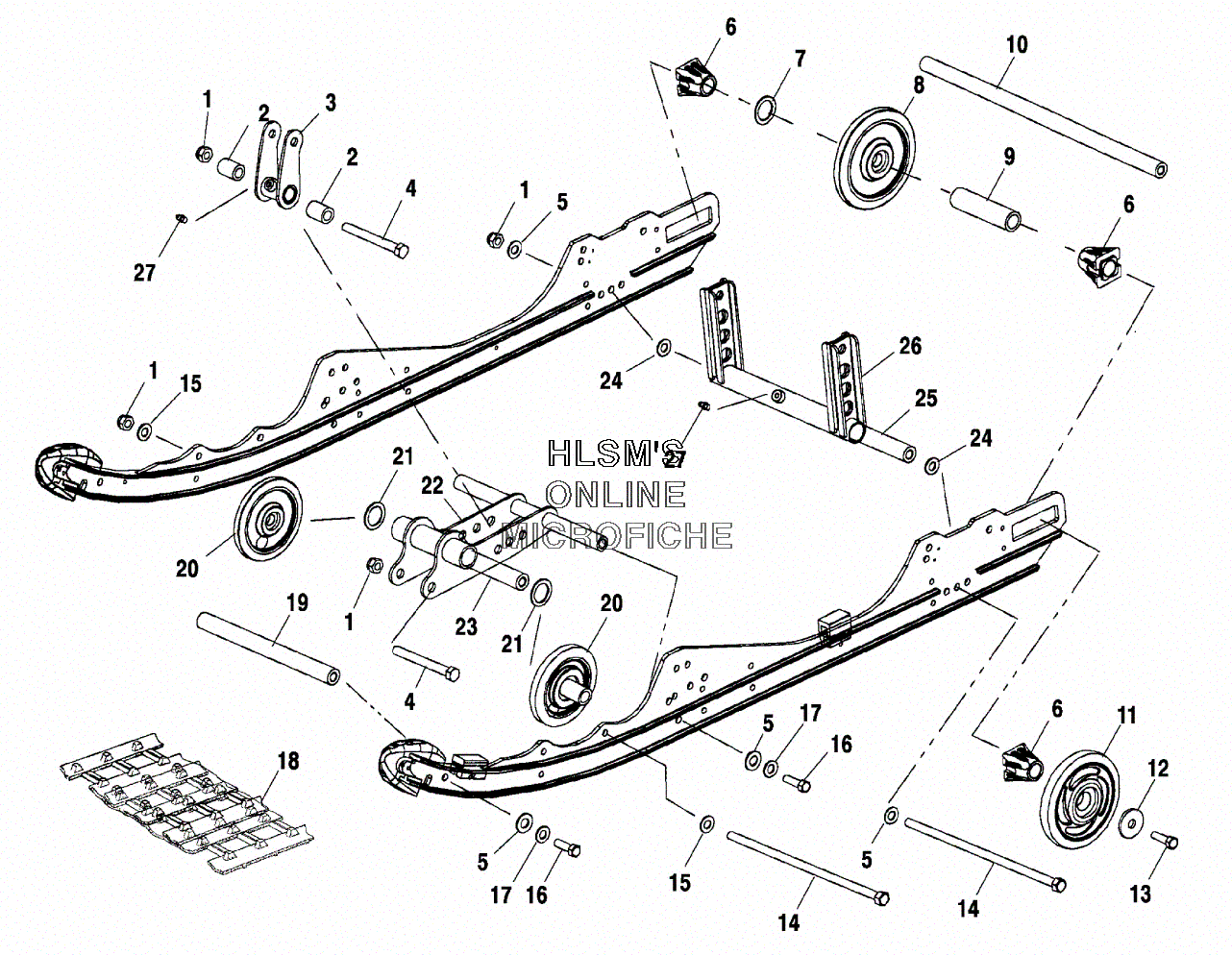

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris 500 INDY (S01NB4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25131940 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM, 2.5 (BLACK)SHOCK PIVOT ARM, 2.5 (BLACK)
-
47515417 BOLTBOLT
-
57555806 WASHERWASHER
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-293 WHEEL, IDLER, HP (RED)WHEEL, IDLER, HP (RED)
-
113514012 BEARINGBEARING
-
117710444 RING, RETAININGRING, RETAINING
-
127556130 WASHERWASHER
-
137517731 BOLT, 3/8-16X1.25BOLT, 3/8-16X1.25
-
147517353 SCREWSCREW
-
157555797 WASHERWASHER
-
167517247 SCREWSCREW
-
177552603 WASHERWASHER
-
185241473 CLIP, SLIDECLIP, SLIDE
-
185241474 CLIP, GUIDECLIP, GUIDE
-
185411593 TRACK, 121X.82TRACK, 121X.82
-
195020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
201541485 WHEEL, 5.35, .984 ID, W/ HOLEWHEEL, 5.35, .984 ID, W/ HOLE
-
217556301 MACHINERY BUSHINGMACHINERY BUSHING
-
221541463-067 SHOCK MOUNT (BLACK)SHOCK MOUNT (BLACK)
-
235132490 SHAFT, .390X.750X.8665SHAFT, .390X.750X.8665
-
247555893 WASHERWASHER
-
255333404 SHAFTSHAFT
-
261541478-067 PIVOT ARM, 3.75 (BLACK/REAR)PIVOT ARM, 3.75 (BLACK/REAR)
-
277080424 FITTING, LUBE.FITTING, LUBE.
