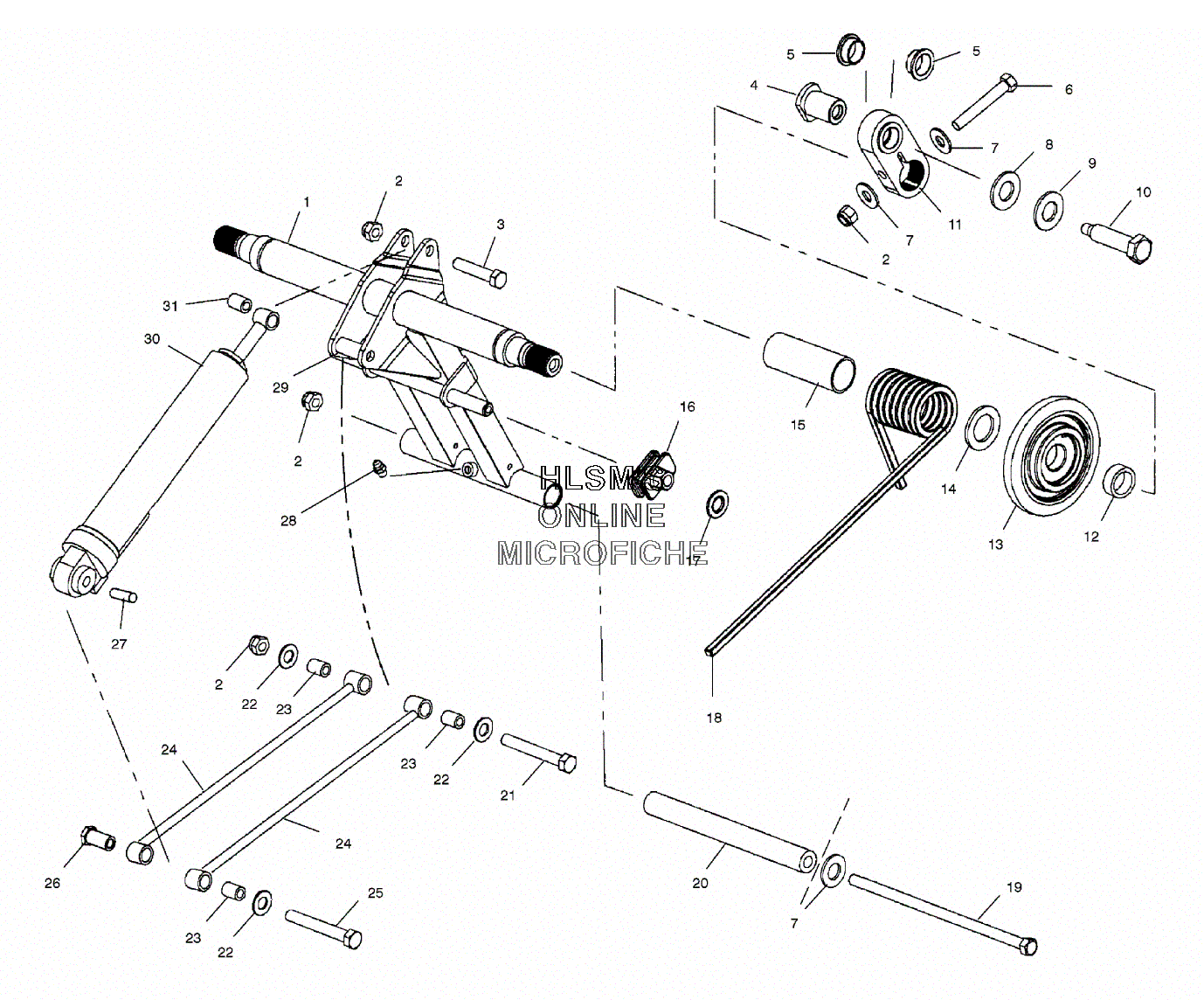

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 500 INDY (S01NB4BS) - 2001 года выпуска
-
№АртикулНазвание
-
11541561-067 WELD, REAR TORQUE ARM (BLACK)WELD, REAR TORQUE ARM (BLACK)
-
27542439 NUT, NYLOKNUT, NYLOK
-
37512410 BOLTBOLT
-
45333758 SHAFT, ARMSHAFT, ARM
-
53514331 BUSHING, ARMBUSHING, ARM
-
67515415 BOLTBOLT
-
77555806 WASHERWASHER
-
87555893 WASHERWASHER
-
97552603 WASHERWASHER
-
107517435 BOLTBOLT
-
111541461 ARM, ASSY., RTA (INCL. 5)ARM, ASSY., RTA (INCL. 5)
-
125132388 SPACER, WHEELSPACER, WHEEL
-
131590278 WHEEL ASSY., PLAIN (BLACK)WHEEL ASSY., PLAIN (BLACK)
-
147555787 WASHER, REVERSEWASHER, REVERSE
-
155431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
165432983 ROLLER, SPRING, ADJUST, SQUAREROLLER, SPRING, ADJUST, SQUARE
-
177080394 CLIPCLIP
-
187041629-067 SPRING, TORSION (OPT) (.359/77) (BLACK/LEFT)SPRING, TORSION (OPT) (.359/77) (BLACK/LEFT)
-
187041630-067 SPRING, TORSION (OPT) (.359/77) (BLACK/RIGHT)SPRING, TORSION (OPT) (.359/77) (BLACK/RIGHT)
-
187041940-067 SPRING-TORS (OPT) (.405/77) (BLACK/LEFT)SPRING-TORS (OPT) (.405/77) (BLACK/LEFT)
-
187041941-067 SPRING-TORS (OPT) (.405/77) (BLACK/RIGHT)SPRING-TORS (OPT) (.405/77) (BLACK/RIGHT)
-
187041942-067 SPRING-TORS (STD) (.375/77) (LEFT)SPRING-TORS (STD) (.375/77) (LEFT)
-
187041943-067 SPRING-TORS (STD) (.375/77) (RIGHT)SPRING-TORS (STD) (.375/77) (RIGHT)
-
197517232 SCREWSCREW
-
205333873 SHAFT, .740X.390X7.055, 6066SHAFT, .740X.390X7.055, 6066
-
217515514 BOLTBOLT
-
227555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
235132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
241541479-067 SHOCK ROD, 12.850 (BLACK)SHOCK ROD, 12.850 (BLACK)
-
257517851 SCREWSCREW
-
265132390 BUSHING, NUT.616X1.12X.875BUSHING, NUT.616X1.12X.875
-
275333907 SLEEVE, .385X.560X1.30SLEEVE, .385X.560X1.30
-
287080424 FITTING, LUBE.FITTING, LUBE.
-
295333904 SPACER, .397X.562X1.250SPACER, .397X.562X1.250
-
307041846 SHOCK, R/T, PPSSHOCK, R/T, PPS
-
315010422 BUSHINGBUSHING
