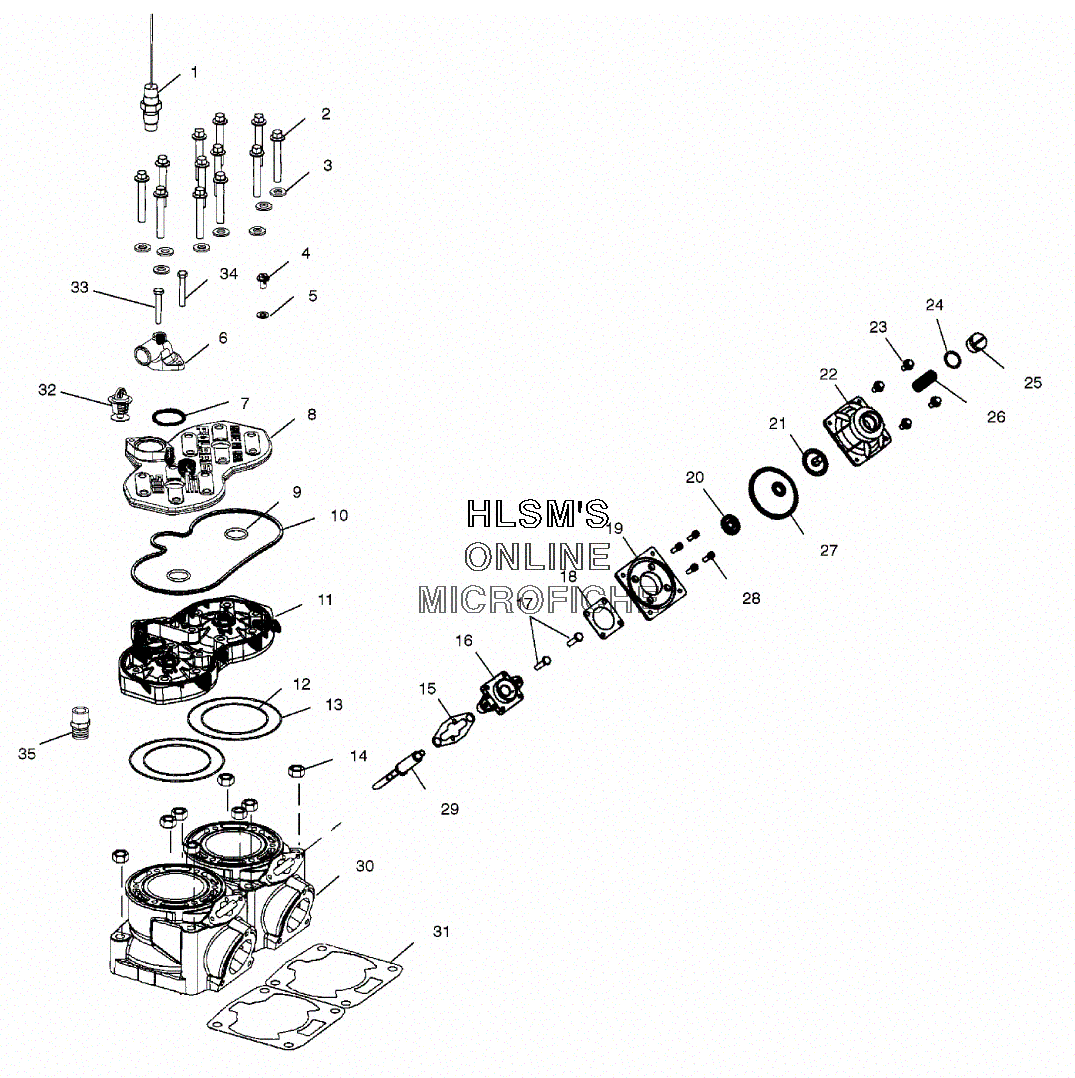

CYLINDER ASSEMBLY для Polaris 500 XC SP (RED) (S01NP5CS) - 2001 года выпуска
-
№АртикулНазвание
-
14010251 SENSOR, THERMISTER, ESX8477ASENSOR, THERMISTER, ESX8477A
-
27517281 SCREWSCREW
-
37556082 WASHERWASHER
-
47517679 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
65630992 COVER, THERMOSTAT, M6 BLEED LGCOVER, THERMOSTAT, M6 BLEED LG
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85630937-070 COVER, HEAD, 70.5MM W/BY PASS BLOCKCOVER, HEAD, 70.5MM W/BY PASS BLOCK
-
95411411 O-RINGO-RING
-
105411465 SEAL, MLDD.HEAD, TWINSEAL, MLDD.HEAD, TWIN
-
113021040 HEAD, CYL 70.5MM W/BY PASSHEAD, CYL 70.5MM W/BY PASS
-
125411199 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
155812087 GASKET, GEN 3.5 EV BASEGASKET, GEN 3.5 EV BASE
-
161201919 ASSY-EV 3.5 HSNG W/BUSH H.DOWELASSY-EV 3.5 HSNG W/BUSH H.DOWEL
-
177516823 SCREWSCREW
-
185433375 GASKET, HOUSING EVGASKET, HOUSING EV
-
195132187 KIT, ADAPTER EV W/CAPKIT, ADAPTER EV W/CAP
-
203086124 WASHERWASHER
-
213086118 CAP, VALVE EXHAUSTCAP, VALVE EXHAUST
-
223086120 COVER, VALVE EXHAUSTCOVER, VALVE EXHAUST
-
233086125 BOLT, FLANGEBOLT, FLANGE
-
243086126 O-RINGO-RING
-
253085744 ADJUSTER, SPRINGADJUSTER, SPRING
-
267041786-07 SPRING, COMP GEN3.5EV (PURPLE/WHITE)SPRING, COMP GEN3.5EV (PURPLE/WHITE)
-
273086119 BELLOWS, VALVE, EXHAUSTBELLOWS, VALVE, EXHAUST
-
287517314 SCREWSCREW
-
291201959 VALVE GUILLOTINE 3.5, 500EV, ASSY.VALVE GUILLOTINE 3.5, 500EV, ASSY.
-
303021185 CYLINDER, 70.5 SNO NICASILCYLINDER, 70.5 SNO NICASIL
-
315811916 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
327052267 THERMOSTAT-50C TBYS SS STEMTHERMOSTAT-50C TBYS SS STEM
-
337516818 SCREWSCREW
-
347516822 SCREWSCREW
-
357052234 FITTING 3/4NPT-1''HOSE BRASSFITTING 3/4NPT-1''HOSE BRASS
