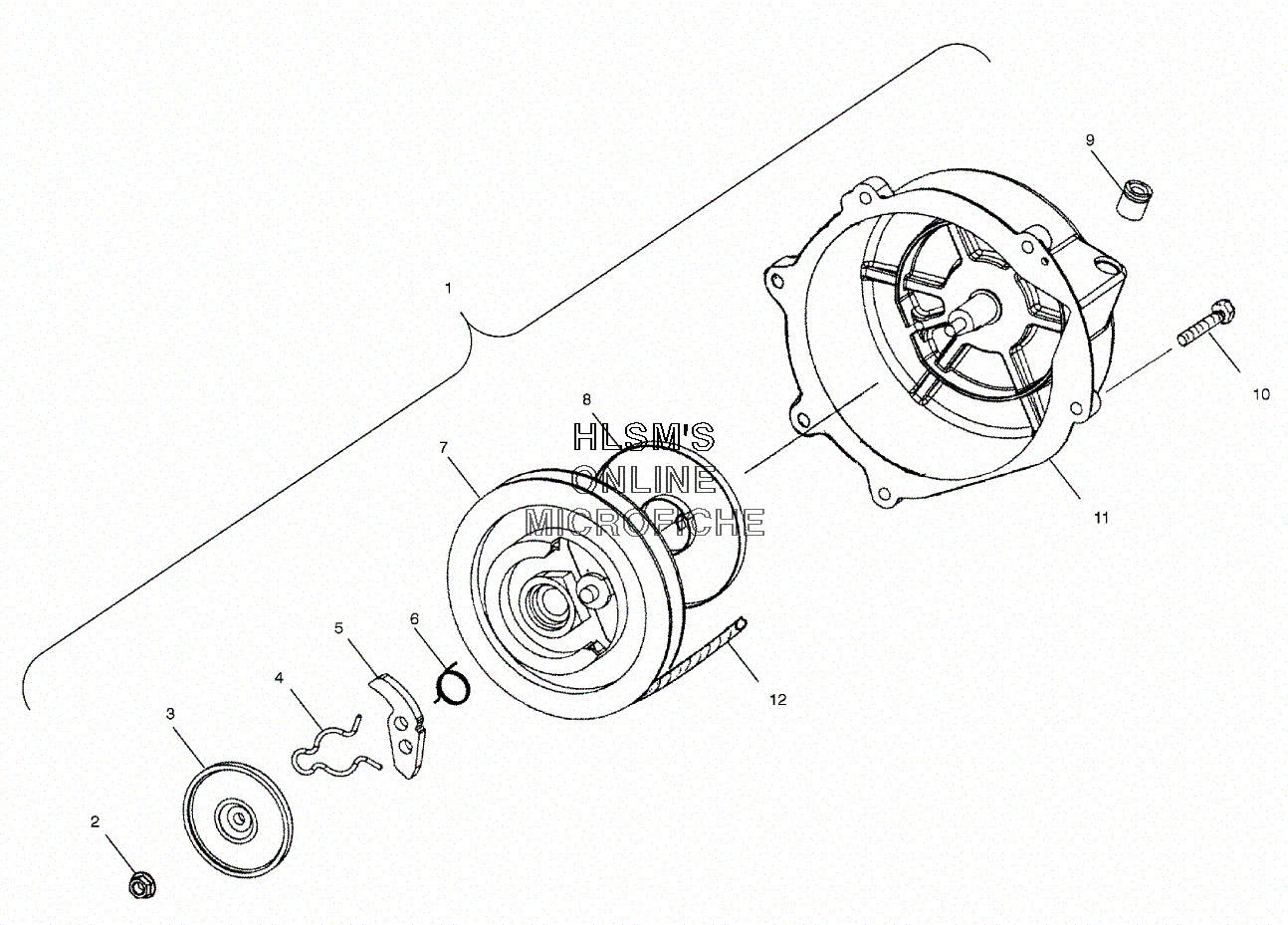

STARTER - RECOIL ASSEMBLY для Polaris 500 XC SP (RED) (S01NP5CS) - 2001 года выпуска
-
№АртикулНазвание
-
11201815 RECOIL ASSY. (INCL. 2-8, 11, 12)RECOIL ASSY. (INCL. 2-8, 11, 12)
-
23040163 NUT, FLANGENUT, FLANGE
-
33040164 PLATE, FRICTIONPLATE, FRICTION
-
43040167 SPRING, FRICTIONSPRING, FRICTION
-
53040165 RATCHETRATCHET
-
63040166 SPRING, RETURNSPRING, RETURN
-
73040168 REELREEL
-
83040170 SPRING, SPIRALSPRING, SPIRAL
-
93040171 GUIDE, ROPEGUIDE, ROPE
-
107516827 SCREWSCREW
-
115630645 RECOIL ASSY.RECOIL ASSY.
-
123040169 ROPE, STARTERROPE, STARTER
