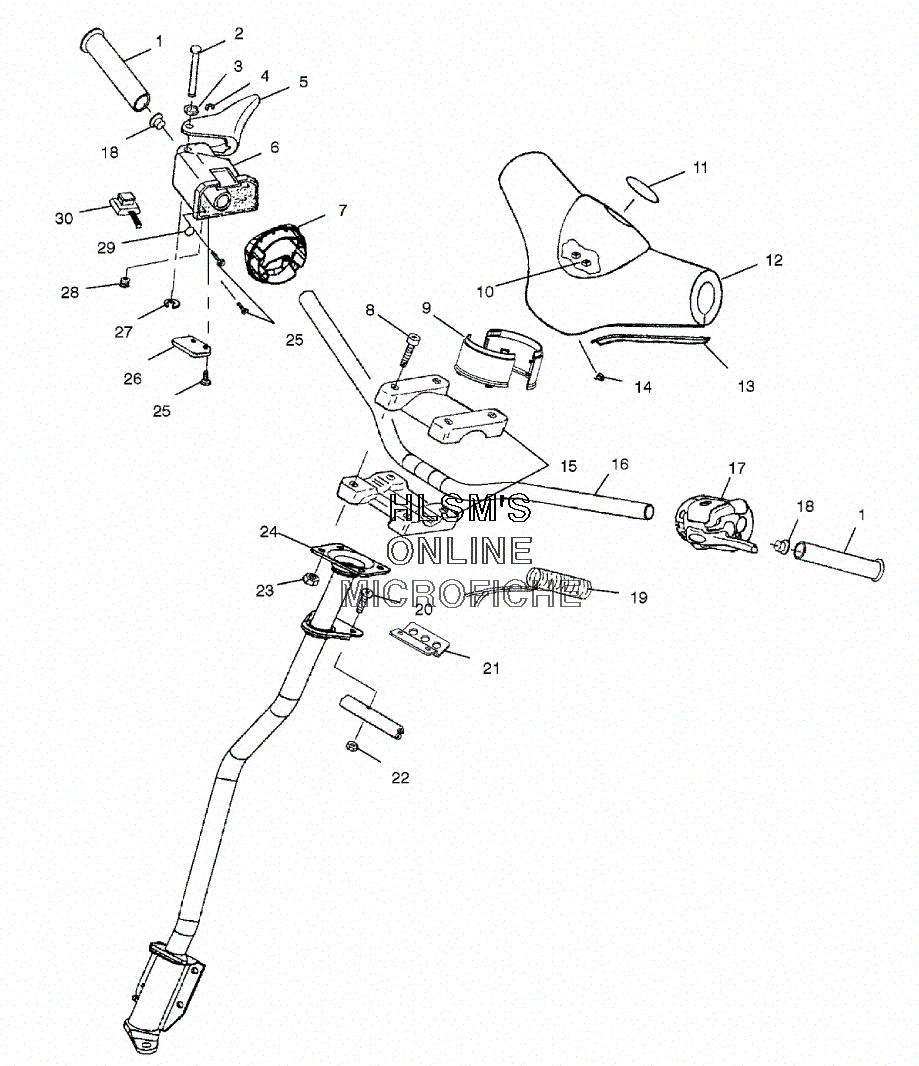

HANDLEBAR ASSEMBLY для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, H'BAR, SNOWGRIP, H'BAR, SNOW
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING RINGRETAINING RING
-
55432970 THROTLE, LEVER, 35.5MMTHROTLE, LEVER, 35.5MM
-
52010171 LEVER ASSY., HTR, HI/LO 35.5MMLEVER ASSY., HTR, HI/LO 35.5MM
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER-BLOCK, THROTTLEADAPTER-BLOCK, THROTTLE
-
87517238 SCREW,SCREW,
-
95433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
107670106 NUT-PUSH ON, .170-.180-YNUT-PUSH ON, .170-.180-Y
-
115433754 EMBLEM-''STAR'', CHR.BEZEL, HANDLEBAREMBLEM-''STAR'', CHR.BEZEL, HANDLEBAR
-
125433159 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
135433160 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
135433161 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
144010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
165243355-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
207517377 SCREWSCREW
-
215242553-067 BRACKET, RETENTION (BLACK)BRACKET, RETENTION (BLACK)
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT, LOCKNUT, LOCK
-
241820663-067 STEERING POST, FMD, RMK (BLACK)STEERING POST, FMD, RMK (BLACK)
-
257511848 SCREW, SEMSSCREW, SEMS
-
265432261 HOLDER, WIREHOLDER, WIRE
-
277710401 E-RINGE-RING
-
287512465 SCREWSCREW
-
297555727 RIVET BURRRIVET BURR
-
304110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
