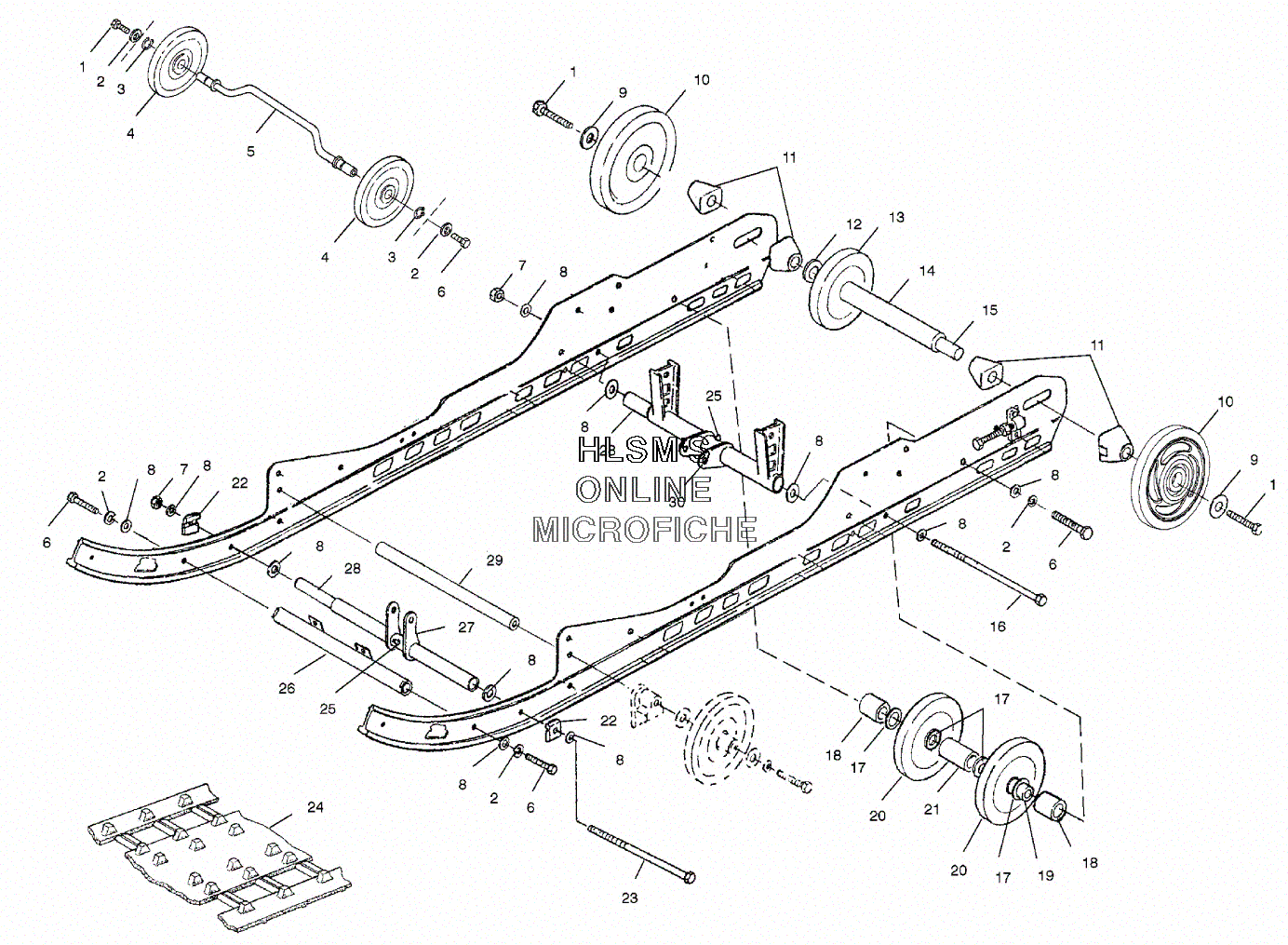

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска
-
№АртикулНазвание
-
17517331 SCREWSCREW
-
27552603 WASHERWASHER
-
37710439 RING, RETAININGRING, RETAINING
-
41594067 WHEEL, BOGIEWHEEL, BOGIE
-
51541025-067 TENSIONER, SHAFT (BLACK)TENSIONER, SHAFT (BLACK)
-
67517247 SCREWSCREW
-
77542411 NUT LOCKNUT LOCK
-
87555893 WASHERWASHER
-
97556130 WASHERWASHER
-
101594083-256 WHEEL, IDLER, SCRL (C.RED)WHEEL, IDLER, SCRL (C.RED)
-
115432535 SPACER, IDLERSPACER, IDLER
-
127555918 BUSHINGBUSHING
-
131594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
145333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
155020744 SHAFT, IDLERSHAFT, IDLER
-
167517353 SCREWSCREW
-
177556301 MACHINERY BUSHINGMACHINERY BUSHING
-
185332784 SPACER (OUTER)SPACER (OUTER)
-
195020415 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
215332783 TUBE, SUSPENSIONTUBE, SUSPENSION
-
225131112 BOSS, BOLT HEADBOSS, BOLT HEAD
-
237517380 SCREWSCREW
-
245411687 TRACK, 133''X.82 LIGHTNINGTRACK, 133''X.82 LIGHTNING
-
245241473 CLIP, SLIDECLIP, SLIDE
-
245241474 CLIP, GUIDECLIP, GUIDE
-
257080424 FITTING, LUBE.FITTING, LUBE.
-
261012267-067 SHAFT, LIMITER STRAP (BLACK)SHAFT, LIMITER STRAP (BLACK)
-
271540968-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
285333404 SHAFTSHAFT
-
295020649 SHAFT, SHOCK BRACKET. (REAR)SHAFT, SHOCK BRACKET. (REAR)
-
301541141-067 ARM, PIVOT (BLACK/REAR)ARM, PIVOT (BLACK/REAR)
