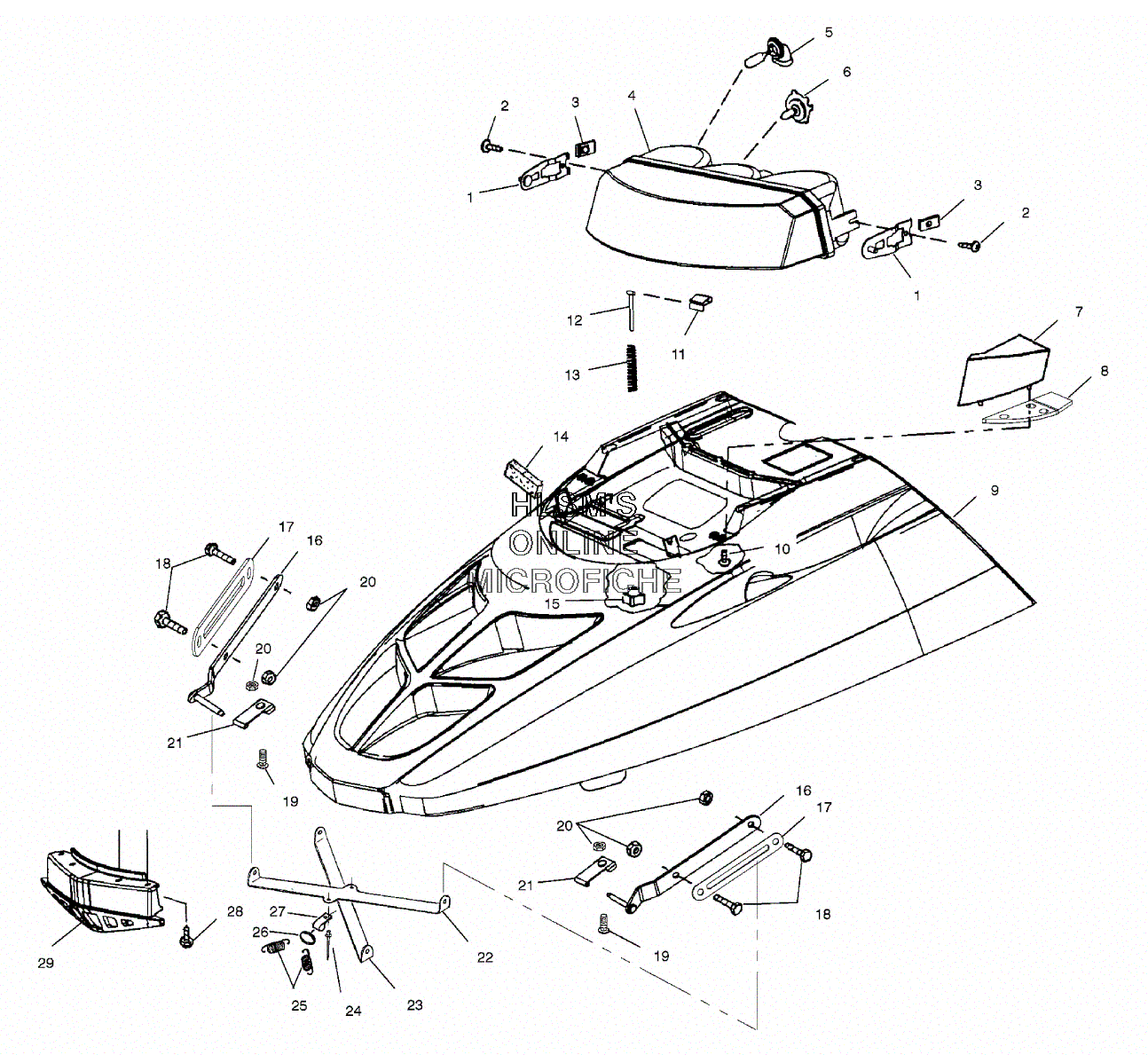

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 RMK 144'' (S01SM8BS) - 2001 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, HEADLIGHTMOUNT, HEADLIGHT
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 HEADLAMP ASSY., THREE BULB (INCL. BULBS)HEADLAMP ASSY., THREE BULB (INCL. BULBS)
-
54010253 BULB, HEADLIGHT (50 WATT)BULB, HEADLIGHT (50 WATT)
-
62870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
75431855 LENS, REFLECTOR (LEFT/CLEAR)LENS, REFLECTOR (LEFT/CLEAR)
-
75431856 LENS, REFLECTOR (RIGHT/CLEAR)LENS, REFLECTOR (RIGHT/CLEAR)
-
85811907 SEAL, REFLECTORSEAL, REFLECTOR
-
92632172-246 HOOD, SVC, BLUE, W/O SCREENS (INCL. FOAM/FOIL)HOOD, SVC, BLUE, W/O SCREENS (INCL. FOAM/FOIL)
-
107512048 SCREWSCREW
-
117670040 CLIP, U TYPECLIP, U TYPE
-
127517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
137041308 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
145811886 FOAM, HEADLIGHT SEAL (W/PSA SRP)FOAM, HEADLIGHT SEAL (W/PSA SRP)
-
157080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
161012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
161012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
175242948 PLATE, BOLTPLATE, BOLT
-
187512247 BOLTBOLT
-
197512193 BOLTBOLT
-
207542122 NUT, LOCKNUT, LOCK
-
215244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
225242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
235242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
247661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
257041732 SPRING, EXT.SPRING, EXT.
-
267041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
277080372 CLAMP, RETAINERCLAMP, RETAINER
-
287517441 SCREWSCREW
-
295432931 SCREEN, FRONTSCREEN, FRONT
