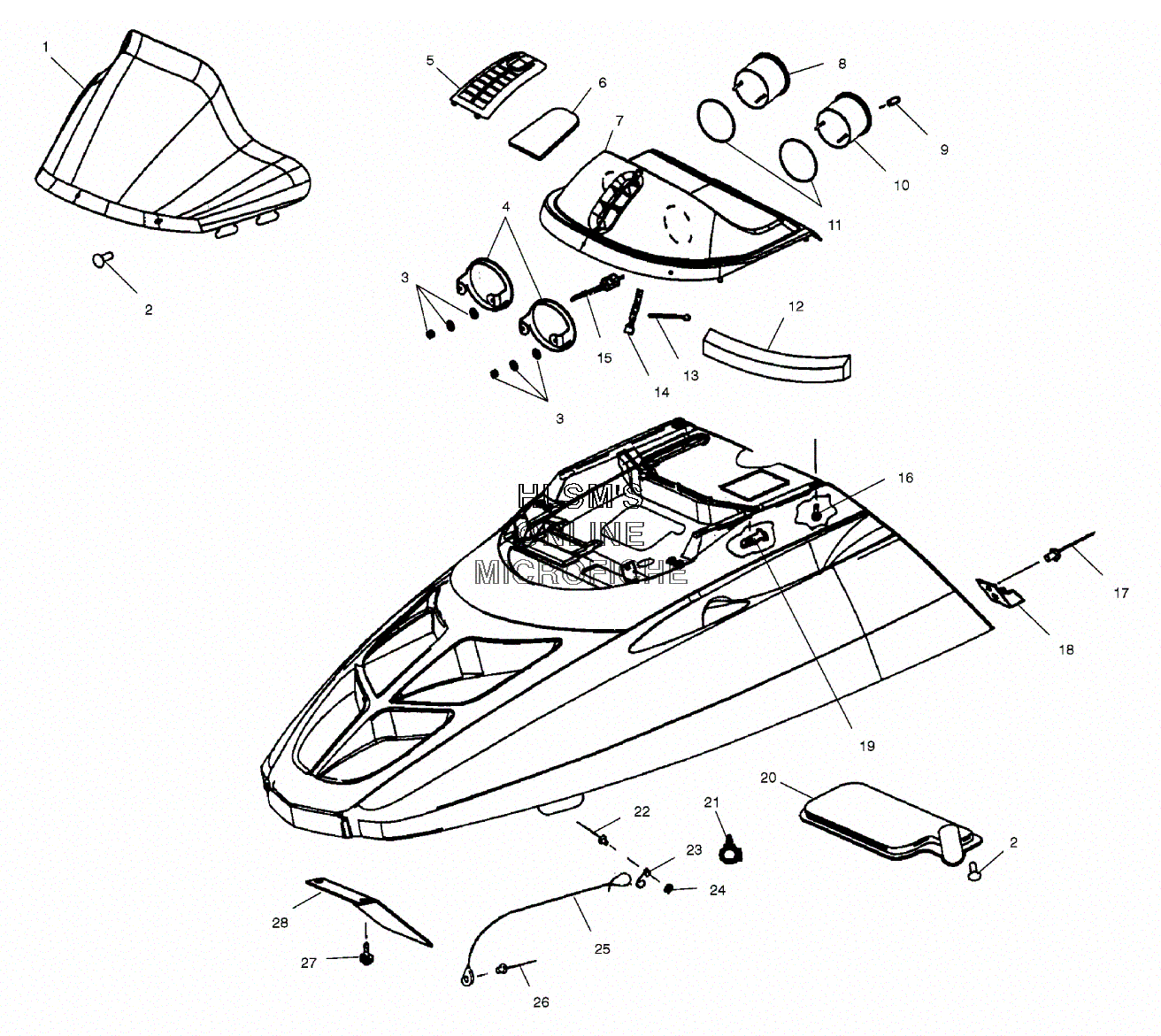

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 800 RMK 144'' (S01SM8BS) - 2001 года выпуска
-
№АртикулНазвание
-
15433165 WINDSHIELD GEN 2, FLR (14'' SMOKE)WINDSHIELD GEN 2, FLR (14'' SMOKE)
-
27621509 RIVET, PLASTI LOC.RIVET, PLASTI LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET, TACH/SPEEDO (5'')BRACKET, TACH/SPEEDO (5'')
-
55433419 COVER, INTAKE INSTRUMENT HOUSINGCOVER, INTAKE INSTRUMENT HOUSING
-
65811821 FOAM, PREFILTERFOAM, PREFILTER
-
72632106 INSTR HOUSING ASSY., 45TH ANV (INCL. WARNING DECALS)INSTR HOUSING ASSY., 45TH ANV (INCL. WARNING DECALS)
-
83280308 TACH (5'', 6 PULSE, W/FUEL LT)TACH (5'', 6 PULSE, W/FUEL LT)
-
84030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
93280186 KNOB, TRIP ODOMETER (LEFT THREAD)KNOB, TRIP ODOMETER (LEFT THREAD)
-
103280304 SPEEDO ASSY. (5'', 120MPH, 90DEG.)SPEEDO ASSY. (5'', 120MPH, 90DEG.)
-
104030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
113280209 CUSHION, TACH/SPEEDO RUBBERCUSHION, TACH/SPEEDO RUBBER
-
125811822 FOAM, HEADLIGHT/POD SEAL SRPFOAM, HEADLIGHT/POD SEAL SRP
-
137080138 STRAP PANDUITSTRAP PANDUIT
-
142460732 HARNESS, HEADLIGHT (G2 COMMON)HARNESS, HEADLIGHT (G2 COMMON)
-
153280341 CABLE, SPEEDO (90 IN.)CABLE, SPEEDO (90 IN.)
-
167517441 SCREWSCREW
-
177621334 RIVETRIVET
-
185430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
195410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
205433723 COVER, ACCESS, HDLIGHTCOVER, ACCESS, HDLIGHT
-
217080886 CLIP (ROSEBUD/GRAY)CLIP (ROSEBUD/GRAY)
-
227661084 RIVETRIVET
-
235242893 CLIP, PIGTAILCLIP, PIGTAIL
-
247555904 BURR, RIVETBURR, RIVET
-
257080764 CABLE, HOODCABLE, HOOD
-
267621402 POP, RIVETPOP, RIVET
-
277512068 SCREWSCREW
-
285243393 DEFLECTOR, AIRDEFLECTOR, AIR
