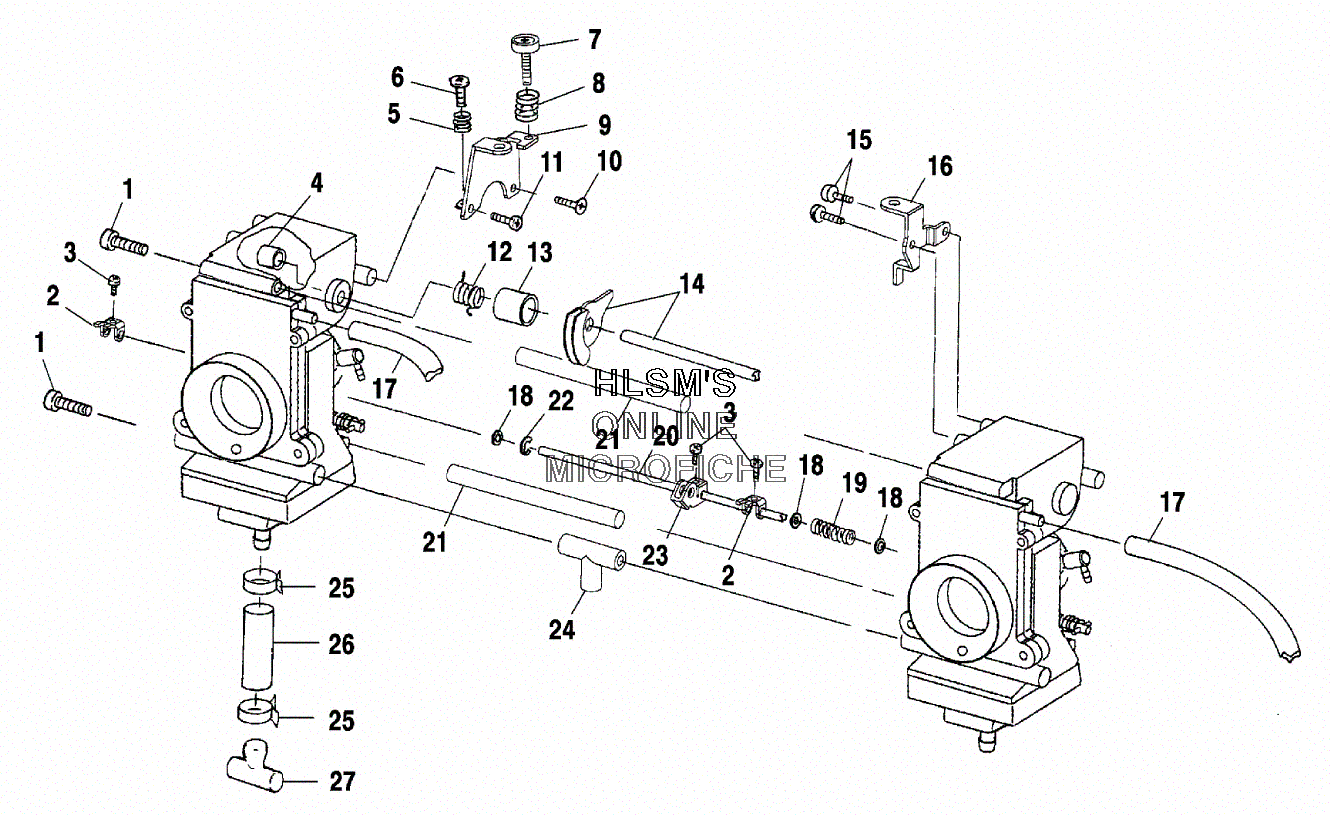

CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE для Polaris 800 RMK 151'' (S01SM8BSA) - 2001 года выпуска
-
№АртикулНазвание
-
13130834 BOLT, RACKBOLT, RACK
-
23130832 LEVER, STARTERLEVER, STARTER
-
33130833 SCREW, STARTERSCREW, STARTER
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73131285 ADJUSTERADJUSTER
-
83131284 SPRINGSPRING
-
93130815 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130950 SPRINGSPRING
-
133130853 RINGRING
-
143131234 SHAFT ASSY. (INCL. LEVER)SHAFT ASSY. (INCL. LEVER)
-
153130821 SCREWSCREW
-
163130820 BRACKETBRACKET
-
173130826 HOSEHOSE
-
183130842 PACKING, STARTER SHAFTPACKING, STARTER SHAFT
-
193130841 SPRING, STARTER SHAFTSPRING, STARTER SHAFT
-
203131233 SHAFTSHAFT
-
213131232 RING, RACK STYLERING, RACK STYLE
-
223130839 E, RINGE, RING
-
233130819 LEVER, STARTERLEVER, STARTER
-
243130823 NIPPLE ASSY., FUEL INLETNIPPLE ASSY., FUEL INLET
-
257080003 CLAMP, HOSECLAMP, HOSE
-
268350017-160 FUEL, LINE (5/16'') (RED) (OPT)FUEL, LINE (5/16'') (RED) (OPT)
-
275431893 PLUG, TRAPPLUG, TRAP
