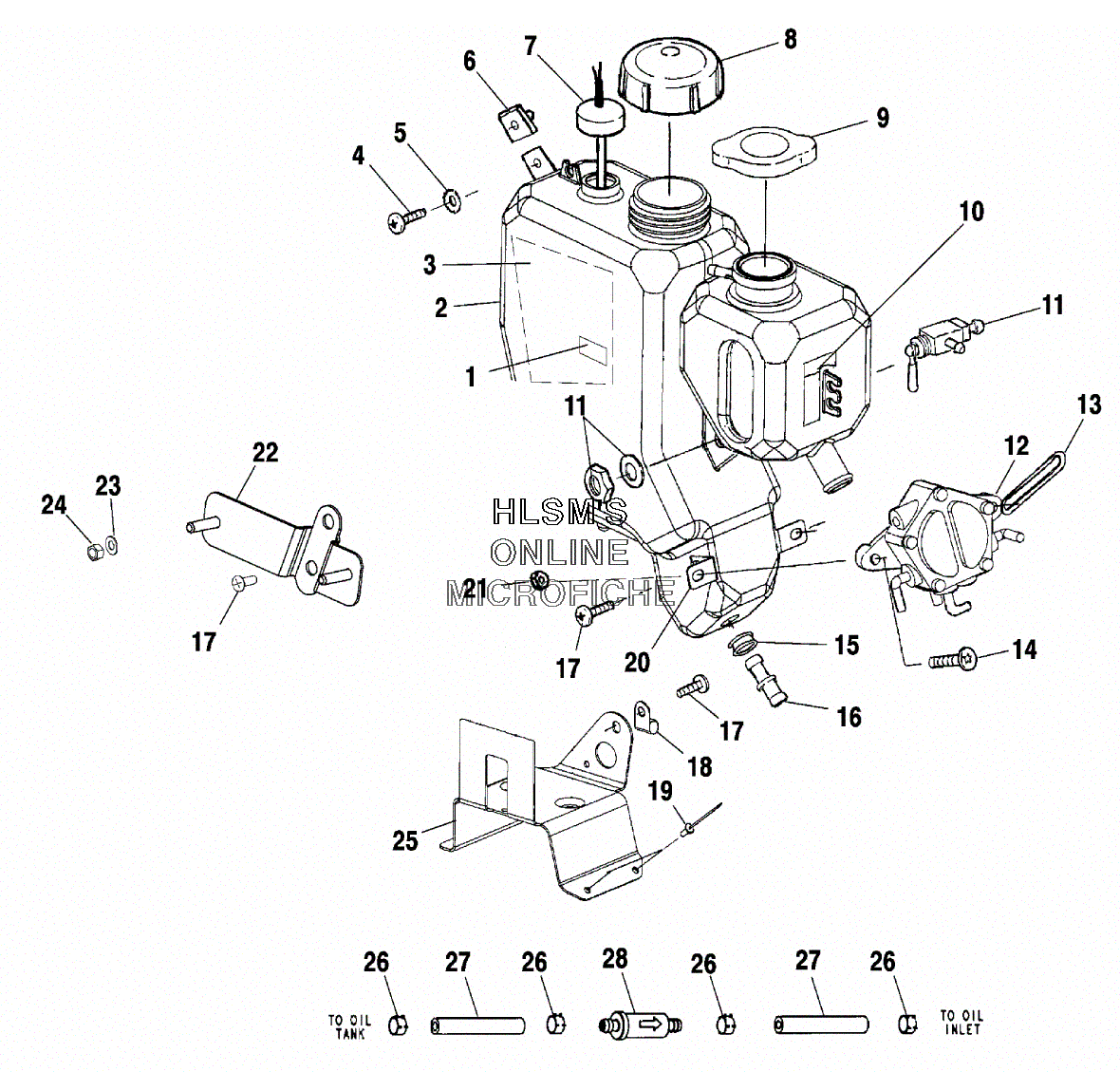

OIL TANK ASSEMBLY для Polaris 800 RMK 151'' (S01SM8BSA) - 2001 года выпуска
-
№АртикулНазвание
-
17077442 DECAL, FUEL SHUT, OFFDECAL, FUEL SHUT, OFF
-
21253353 OIL TANK ASSY. (W/FOIL)OIL TANK ASSY. (W/FOIL)
-
35811934 FOIL, OIL TANKFOIL, OIL TANK
-
47512276 BOLTBOLT
-
57558302 WASHER, WROUGHTWASHER, WROUGHT
-
67670096 NUTNUT
-
74110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
81240094 CAP, OIL, (VENTED/CUSTOM COLOR)CAP, OIL, (VENTED/CUSTOM COLOR)
-
92511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
107078369 DECAL, SURGE TANK ''FULL COLD''DECAL, SURGE TANK ''FULL COLD''
-
137080654 RETAINERRETAINER
-
147517455 SCREWSCREW
-
157052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
167052207 FITTING, STRAIGHT PRESS INFITTING, STRAIGHT PRESS IN
-
177517615 SCREWSCREW
-
187080885 CLIP, JCLIP, J
-
197621432 RIVETRIVET
-
205242680 BRACKET, FUEL PUMP MOUNT ZBRACKET, FUEL PUMP MOUNT Z
-
217542122 NUT, LOCKNUT, LOCK
-
221012947 BRACKET, CDI MOUNTBRACKET, CDI MOUNT
-
237555904 BURR, RIVETBURR, RIVET
-
247541925 NUTNUT
-
255244339 BRACKET, OIL TANK W/BRIDGEBRACKET, OIL TANK W/BRIDGE
-
267080307 CLAMPCLAMP
-
278450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
282530009 FILTER, IN-LINEFILTER, IN-LINE
