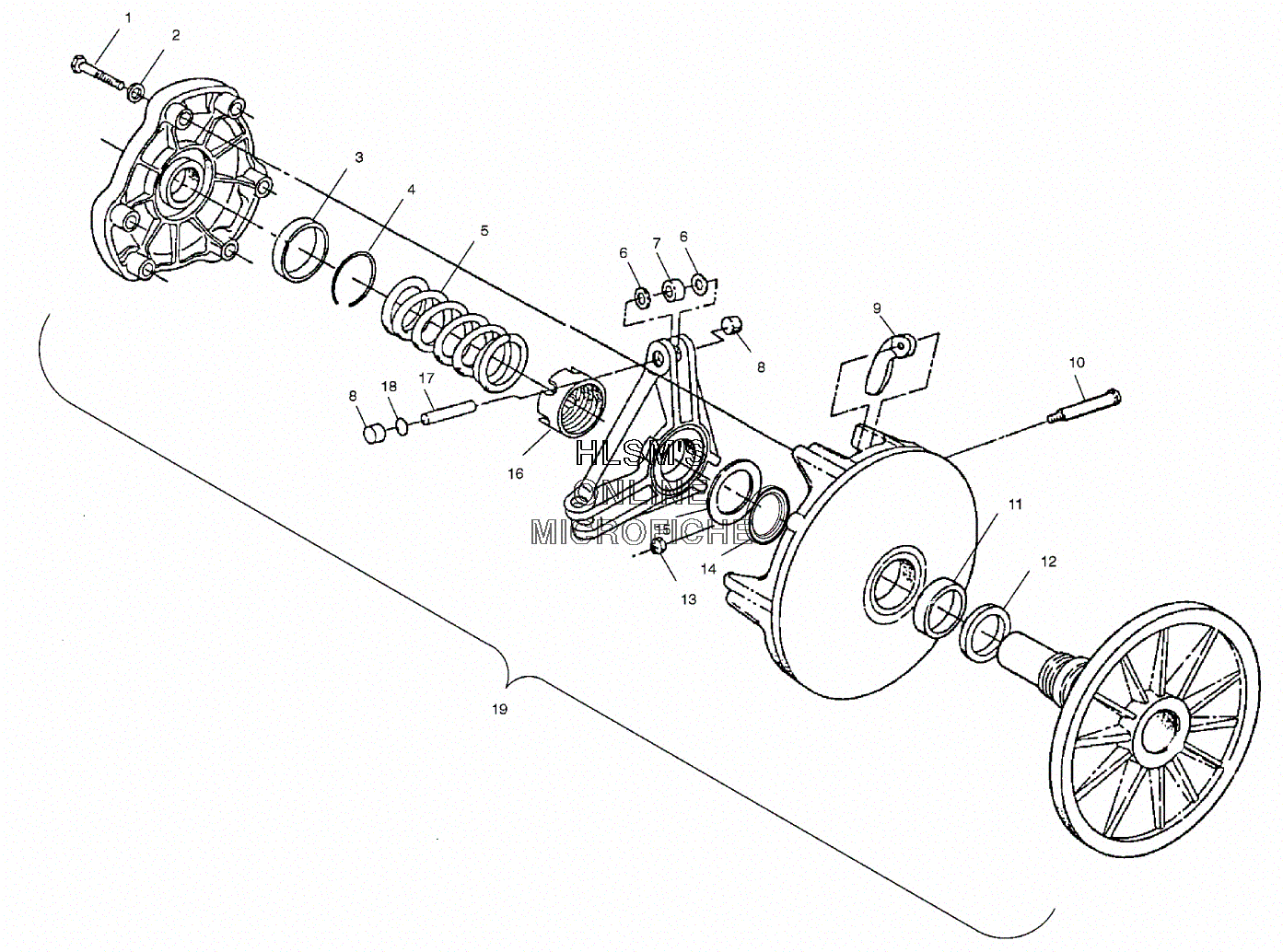

CLUTCH - DRIVE для Polaris 800 RMK SP 151'' (S01SM8BSB) - 2001 года выпуска

№

Артикул

Название
1

7512265 BOLT

BOLT

630 ₽
2

7552801 LOCK WASHER

LOCK WASHER

460 ₽
3

3514347 COVER, BEARING, GARMAX

COVER, BEARING, GARMAX

6 030 ₽
4

7710417 RING, RETAINING, BOLT

RING, RETAINING, BOLT

150 ₽
5

7041945 SPRING, CLUTCH (ALMOND/ROUND)

SPRING, CLUTCH (ALMOND/ROUND)

9 780 ₽
6

5430945 WASHER

WASHER

420 ₽
7

1321622 ROLLER AND BUSHING ASSY.

ROLLER AND BUSHING ASSY.

8 110 ₽
8

5434188 BUTTON, GUIDE, TWIN

BUTTON, GUIDE, TWIN

2 500 ₽
9

1321587 WT/BUSH. ASSY., (10, 60)

WT/BUSH. ASSY., (10, 60)

6 240 ₽
10

7515105 PIN, WT., HARDENED

PIN, WT., HARDENED

1 870 ₽
11

3576502 SLEEVE, BEARING

SLEEVE, BEARING

4 990 ₽
12

5010188 BUSHING, RETAINER

BUSHING, RETAINER

1 520 ₽
13

7541906 NUT FLEX LOC

NUT FLEX LOC

250 ₽
14

5132542 SPACER, CLUTCH, DRIVE, (.130)

SPACER, CLUTCH, DRIVE, (.130)

3 640 ₽
15

5210754 SPACER (.050MM)

SPACER (.050MM)

580 ₽
15

5210753 SPACER (.032MM)

SPACER (.032MM)

420 ₽
15

5242981 SPACER (.025 MM)

SPACER (.025 MM)

260 ₽
15

5210752 SPACER (.020MM)

SPACER (.020MM)

110 ₽
16

5020425 NUT, JAM

NUT, JAM

4 370 ₽
17

5020422 PIN, ROLLER

PIN, ROLLER

670 ₽
18

2200387 SHIM, DRIVE CLUTCH KIT

SHIM, DRIVE CLUTCH KIT

2 910 ₽
19

1321880 DRVCLUTCH, ASSY., BASIC.108 (INCL. ALL LESS 5, 9)

DRVCLUTCH, ASSY., BASIC.108 (INCL. ALL LESS 5, 9)

118 460 ₽
19

2201169 REBUILD, WIDE ROLLER KIT, (INCL. 6, 8, 10, 17, 18)

REBUILD, WIDE ROLLER KIT, (INCL. 6, 8, 10, 17, 18)

33 280 ₽
