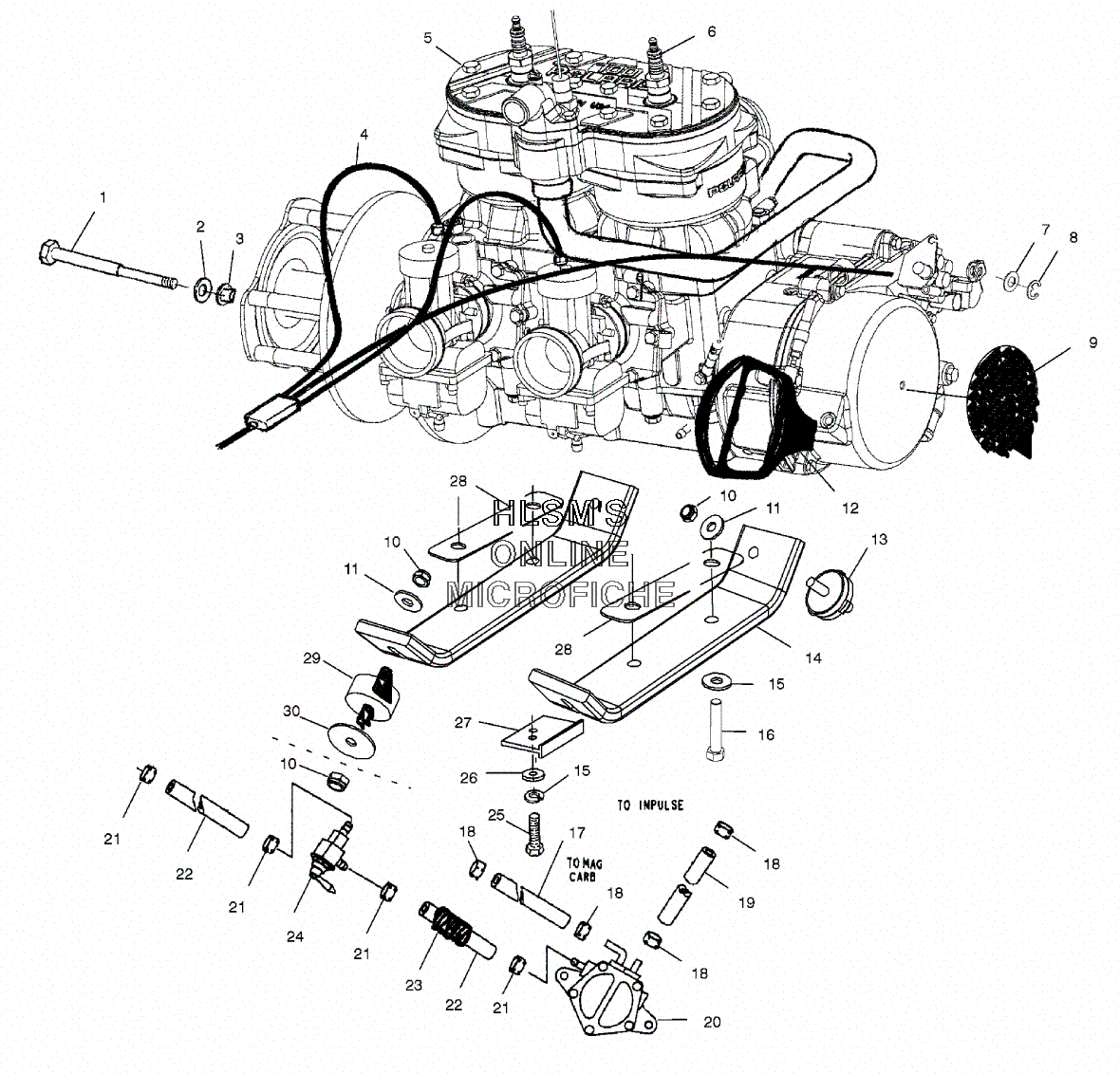

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 RMK SP 151'' (S01SM8BSB) - 2001 года выпуска
-
№АртикулНазвание
-
17517501 SCREW, (M14X1.5X215)SCREW, (M14X1.5X215)
-
27556003 WASHERWASHER
-
35132441 WASHER, CLUTCH (RET, M14)WASHER, CLUTCH (RET, M14)
-
47080840 CABLE, THROTTLE, (W/OIL, 40 MM)CABLE, THROTTLE, (W/OIL, 40 MM)
-
52201673 SHORT BLOCK ASSY.SHORT BLOCK ASSY.
-
63070190 SPARK PLUG, CHAMPION RN57Y CCSPARK PLUG, CHAMPION RN57Y CC
-
77555944 WASHERWASHER
-
87710427 RING, E, RET.RING, E, RET.
-
95811485 FOIL, TAPE, (5.5''DIA)FOIL, TAPE, (5.5''DIA)
-
107547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
117555893 WASHERWASHER
-
125431499-070 HANDLE, RECOILHANDLE, RECOIL
-
133021099 MOUNT, ENGINE, (3/8, 16, 3, TAB)MOUNT, ENGINE, (3/8, 16, 3, TAB)
-
145242644 STRAP, (LEFT), ENG.MT, (SN70)STRAP, (LEFT), ENG.MT, (SN70)
-
145242645 STRAP, (RIGHT), ENG.MT, (SN70)STRAP, (RIGHT), ENG.MT, (SN70)
-
157553101 WASHER LOCKWASHER LOCK
-
167512575 BOLTBOLT
-
178350017-160 FUEL, LINE, (ETHER, RED, 5/16'')FUEL, LINE, (ETHER, RED, 5/16'')
-
187080003 CLAMP, HOSECLAMP, HOSE
-
198450040-600 FUEL LINE, 1/4 ID (600 CM.)FUEL LINE, 1/4 ID (600 CM.)
-
202520160 PUMP, FUEL, (1 OUTLET, 3/8'')PUMP, FUEL, (1 OUTLET, 3/8'')
-
217080544 CLAMP, HOSECLAMP, HOSE
-
228350016-160 FUEL, LINE, (ETHER, RED, 3/8')FUEL, LINE, (ETHER, RED, 3/8')
-
237041952 SPRING, HOSE PROTECTORSPRING, HOSE PROTECTOR
-
247052255 VALVE, FUEL SHUTOFF, (3/8 ID HOSE)VALVE, FUEL SHUTOFF, (3/8 ID HOSE)
-
257512515 BOLTBOLT
-
265210748 WASHERWASHER
-
275244171 BRACE, ENGINE MOUNTBRACE, ENGINE MOUNT
-
285211894 PLATE, SHIM, (SN70, ENGINE)PLATE, SHIM, (SN70, ENGINE)
-
293110062 MOUNT, ENGINEMOUNT, ENGINE
-
307555915 WASHER, FLATWASHER, FLAT
