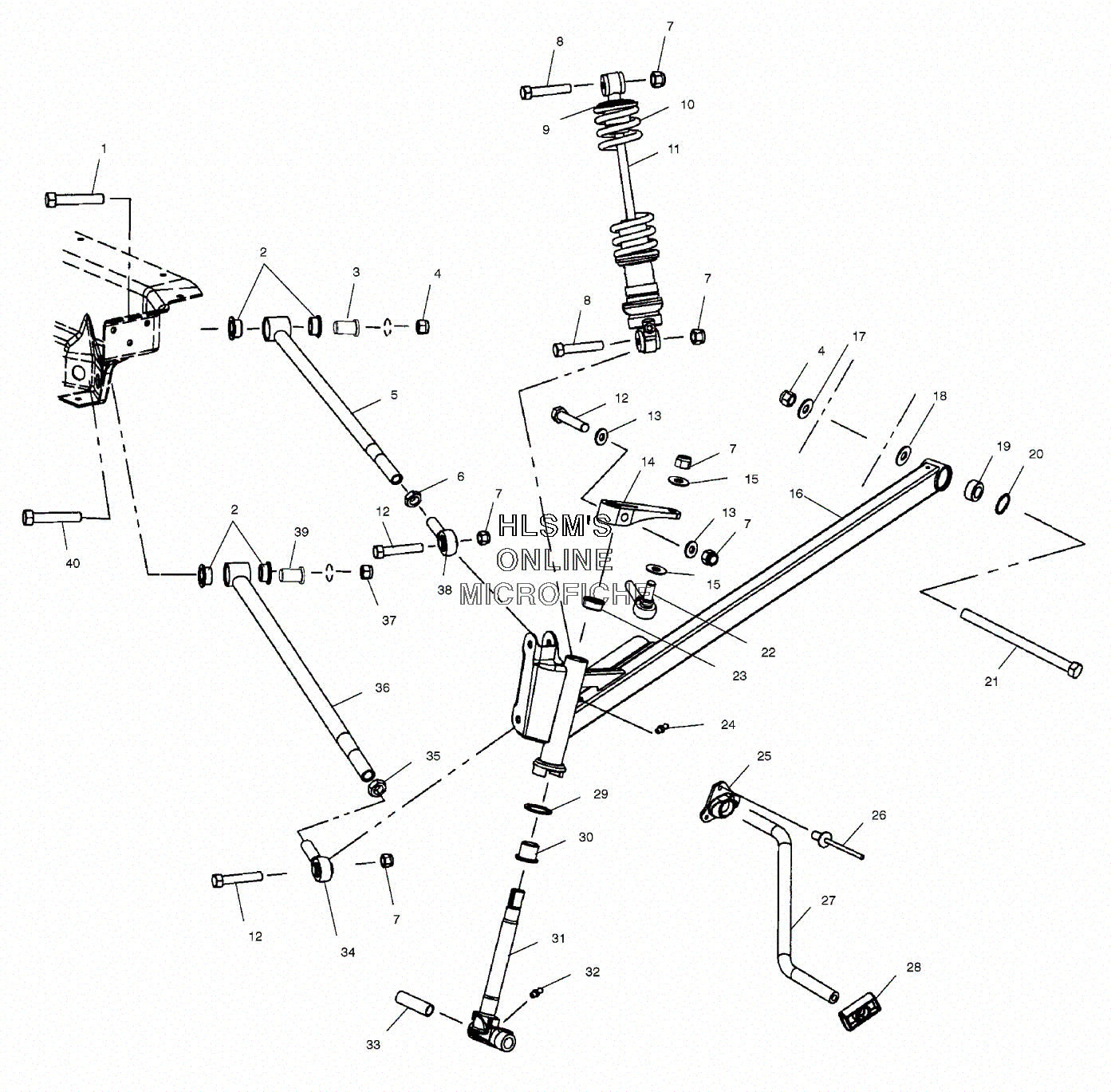

SUSPENSION - FRONT для Polaris 800 XC SP (BLACK) (S01NP8BSA) - 2001 года выпуска
-
№АртикулНазвание
-
17512597 BOLTBOLT
-
25434036 BUSHING RADIUS ROD PIVOT (INNER)BUSHING RADIUS ROD PIVOT (INNER)
-
35132779 BUSHING SHOULDERBUSHING SHOULDER
-
47547066 NUT, NYLOK (7/16 20)NUT, NYLOK (7/16 20)
-
51820679-067 RADIUS ROD (UPPER/BLK)RADIUS ROD (UPPER/BLK)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 BOLTBOLT
-
95630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
107041950-067 SPRING COMP, 68/160# (11.5) (BLK)SPRING COMP, 68/160# (11.5) (BLK)
-
117041926 SHOCK, GAS, IFP (11.02X16.25)SHOCK, GAS, IFP (11.02X16.25)
-
127517583 SCR 3/8 24X2 HX/CP GR5 Y SPSCR 3/8 24X2 HX/CP GR5 Y SP
-
137555832 WASHERWASHER
-
145132728 ARM STEERING, MACHINED, EDGEARM STEERING, MACHINED, EDGE
-
157555797 WASHERWASHER
-
161820962-067 TRAILING ARM ASSY., SVC (LEFT/BLK) (INC 19,20)TRAILING ARM ASSY., SVC (LEFT/BLK) (INC 19,20)
-
161820963-067 TRAILING ARM ASSY., SVC (RIGHT/BLK) (INC 19,20)TRAILING ARM ASSY., SVC (RIGHT/BLK) (INC 19,20)
-
177555820 WASHERWASHER
-
185132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
197061042 BEARING SPHERICAL (PLASTIC) (7/16)BEARING SPHERICAL (PLASTIC) (7/16)
-
207710437 RING, RETAININGRING, RETAINING
-
217512099 BOLTBOLT
-
227061057 ROD, END (3/8, PL, 75Ш) (1.00) (RIGHT)ROD, END (3/8, PL, 75Ш) (1.00) (RIGHT)
-
233573909 BUSHING FLANGEBUSHING FLANGE
-
247080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
255433234 BUSHING TORSION BARBUSHING TORSION BAR
-
267621477 RIVET,RIVET,
-
275244415-067 BAR, TORSION (1/2, 42.5 EDGE) (BLK)BAR, TORSION (1/2, 42.5 EDGE) (BLK)
-
285433329 SLIDE TORSION BARSLIDE TORSION BAR
-
297556509 WASHER SPECIALWASHER SPECIAL
-
303574208 BUSHING, SPINDLE HOUSING,BUSHING, SPINDLE HOUSING,
-
316230160-067 SHAFT SPINDLE, HARDENED (BLK)SHAFT SPINDLE, HARDENED (BLK)
-
327080306 FITTING, LUBE.W/BALL CHECK.FITTING, LUBE.W/BALL CHECK.
-
335010158 BUSHING, PIVOTBUSHING, PIVOT
-
347061060 ROD END, RADIUS (1/2)ROD END, RADIUS (1/2)
-
357542711 NUT JAMNUT JAM
-
361820677-067 RADIUS ROD (LOWER/BLK)RADIUS ROD (LOWER/BLK)
-
377542703 NUT FLEX,NUT FLEX,
-
387061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
395132780 BUSHING SHOULDER (.505X.750X1.215)BUSHING SHOULDER (.505X.750X1.215)
-
407512684 BOLTBOLT
