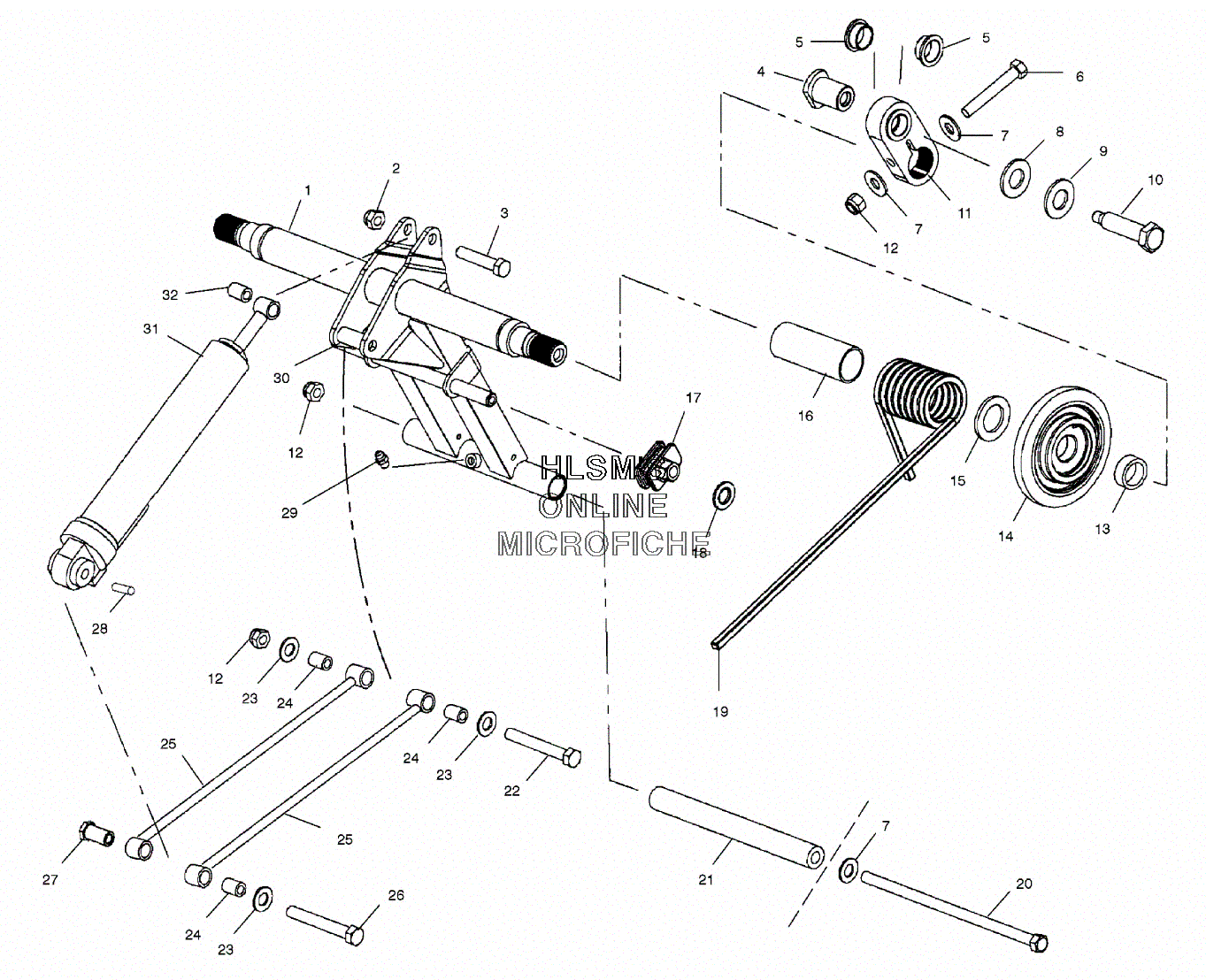

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 XC SP (BLACK) (S01NP8BSA) - 2001 года выпуска
-
№АртикулНазвание
-
11541561-067 WELD, TORQUE ARM (REAR/BLK)WELD, TORQUE ARM (REAR/BLK)
-
27542411 NUT LOCKNUT LOCK
-
37512410 BOLTBOLT
-
45333758 SHAFT ARMSHAFT ARM
-
53514331 BUSHING ARMBUSHING ARM
-
67515415 BOLTBOLT
-
77555806 WASHERWASHER
-
87555893 WASHERWASHER
-
97552603 WASHERWASHER
-
107517435 SCREWSCREW
-
111541461 ARM ASSY., RTA (INCL. 5)ARM ASSY., RTA (INCL. 5)
-
127542439 NUT, NYLOKNUT, NYLOK
-
135132388 SPACER, WHEELSPACER, WHEEL
-
141590278 WHEEL ASSY., PLAIN (BLK).WHEEL ASSY., PLAIN (BLK).
-
157555787 WASHER, REVERSEWASHER, REVERSE
-
165431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
175432983 ROLLER, SPRING, ADJUSTER SQUARE (XTRA 10)ROLLER, SPRING, ADJUSTER SQUARE (XTRA 10)
-
187080394 CLIPCLIP
-
197041942-067 SPRING TORSION (LEFT) (STD)(.375/77)SPRING TORSION (LEFT) (STD)(.375/77)
-
197041943-067 SPRING TORS (RIGHT) (STD)(.375/77)SPRING TORS (RIGHT) (STD)(.375/77)
-
197041629-067 SPRING TORS (RIGHT/BLK) (OPT)(.359/77)SPRING TORS (RIGHT/BLK) (OPT)(.359/77)
-
197041630-067 SPRING TORS (RIGHT/BLK) (OPT) (.359/77)SPRING TORS (RIGHT/BLK) (OPT) (.359/77)
-
197041940-067 SPRING TORS (LEFT/BLK) (OPT) (.405/77)SPRING TORS (LEFT/BLK) (OPT) (.405/77)
-
197041941-067 SPRING TORS (RIGHT/BLK) (OPT) (.405/77)SPRING TORS (RIGHT/BLK) (OPT) (.405/77)
-
207517232 SCREWSCREW
-
215333873 SHAFT (.740X.390X7.055)SHAFT (.740X.390X7.055)
-
227515514 BOLTBOLT
-
237555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
245132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
251541479-067 SHOCK ROD (12.850) (BLK)SHOCK ROD (12.850) (BLK)
-
267517851 SCREWSCREW
-
275132390 BUSHING, NUT (.616X1.12X.875)BUSHING, NUT (.616X1.12X.875)
-
285333907 SLEEVE (.385X.560X1.30)SLEEVE (.385X.560X1.30)
-
297080424 FITTING, LUBE.FITTING, LUBE.
-
305333904 SPACER (.397X.562X1.250)SPACER (.397X.562X1.250)
-
317041846 SHOCK, R/T, FOX, PPSSHOCK, R/T, FOX, PPS
-
325010422 BUSHINGBUSHING
