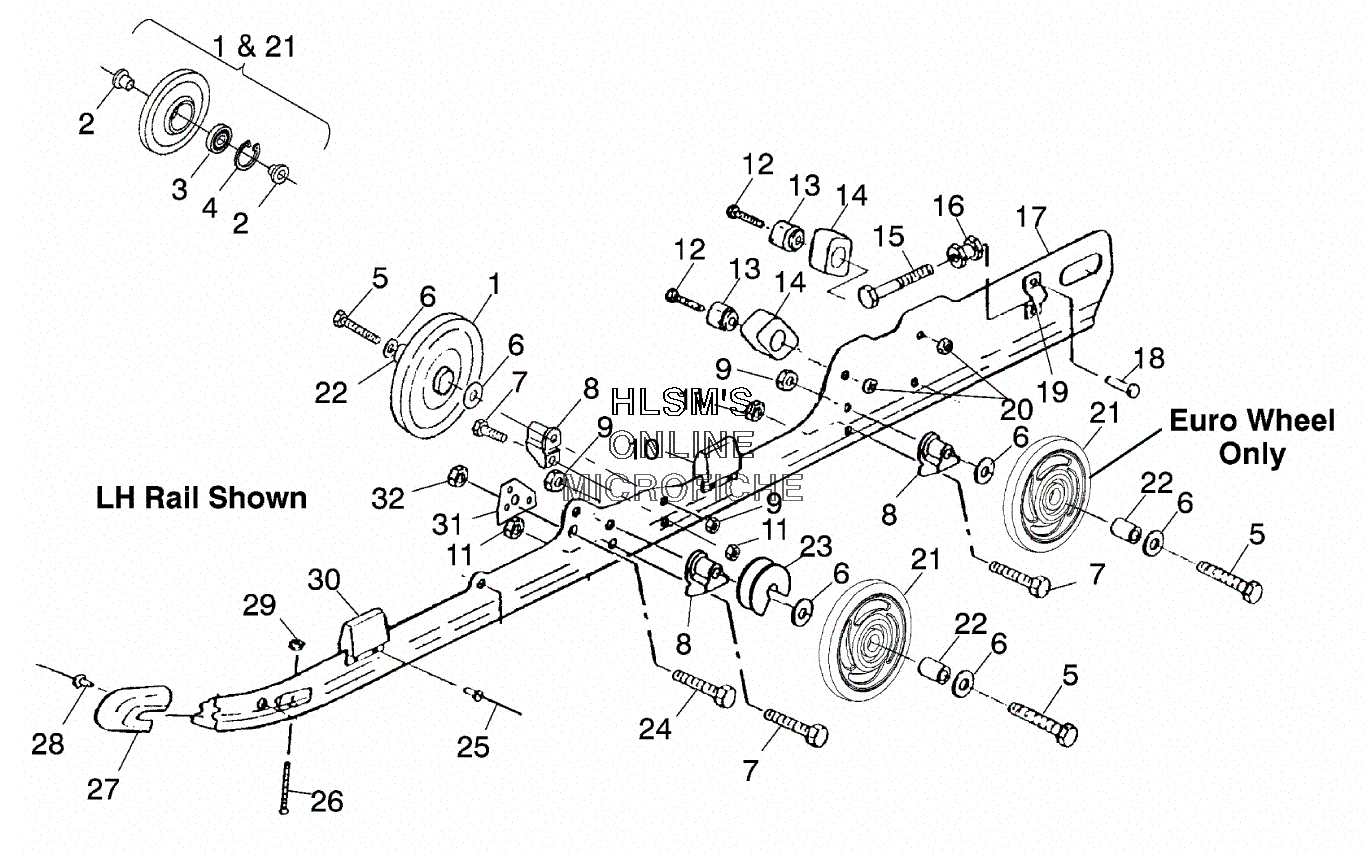

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris EURO SPORT TOURING (E01SD5BU) - 2001 года выпуска`
-
№АртикулНазвание
-
11543018 WHEEL, IDLER (INCL. 2, 3, 4)WHEEL, IDLER (INCL. 2, 3, 4)
-
25431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
33514305 BEARING, CHAINCASE (1 PER WHEEL)BEARING, CHAINCASE (1 PER WHEEL)
-
47718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
57512538 BOLTBOLT
-
67555852 WASHER, FLATWASHER, FLAT
-
77512404 BOLTBOLT
-
85630399 SPACERSPACER
-
97542525 NUT, NYLOCKNUT, NYLOCK
-
105222629 REINFORCEMENT, BUMPERREINFORCEMENT, BUMPER
-
105811097 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
117542439 NUT, NYLOKNUT, NYLOK
-
127515545 BOLT,BOLT,
-
135131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
145410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
157517227 SCREW,SCREW,
-
167542404 NUTNUT
-
171541155 RAIL ASSY (LEFT) ( X-10 ) (136) (INCL. 10, 18, 19, 25, 27, 28, 30)RAIL ASSY (LEFT) ( X-10 ) (136) (INCL. 10, 18, 19, 25, 27, 28, 30)
-
171541156 RAIL ASSY (RIGHT) (X-10) (136) (INCL. 10, 18, 19, 25, 27, 28, 30)RAIL ASSY (RIGHT) (X-10) (136) (INCL. 10, 18, 19, 25, 27, 28, 30)
-
187621501 RIVET,RIVET,
-
195130530 BLOCK, IDLER BOLT ADJUSTERBLOCK, IDLER BOLT ADJUSTER
-
207542411 NUT LOCKNUT LOCK
-
211594082-256 WHEEL, BOGIE, SCRL (C.RED) (INCL. 2, 3, 4)WHEEL, BOGIE, SCRL (C.RED) (INCL. 2, 3, 4)
-
225333116 SPACER, WHEELSPACER, WHEEL
-
235433575 SPRING, ROLLER, SQUARESPRING, ROLLER, SQUARE
-
247512457 BOLTBOLT
-
257621476 RIVETRIVET
-
267515175 BOLTBOLT
-
275433005 COVER, RAIL TIPCOVER, RAIL TIP
-
287621435 RIVETRIVET
-
297542122 NUT, LOCKNUT, LOCK
-
305222629 REINF., BUMPERREINF., BUMPER
-
305810554 BUMPER, RAILBUMPER, RAIL
-
315211843 PLATE, RAIL SUPPORT (136'')PLATE, RAIL SUPPORT (136'')
-
327542403 NUT LOCKNUT LOCK
