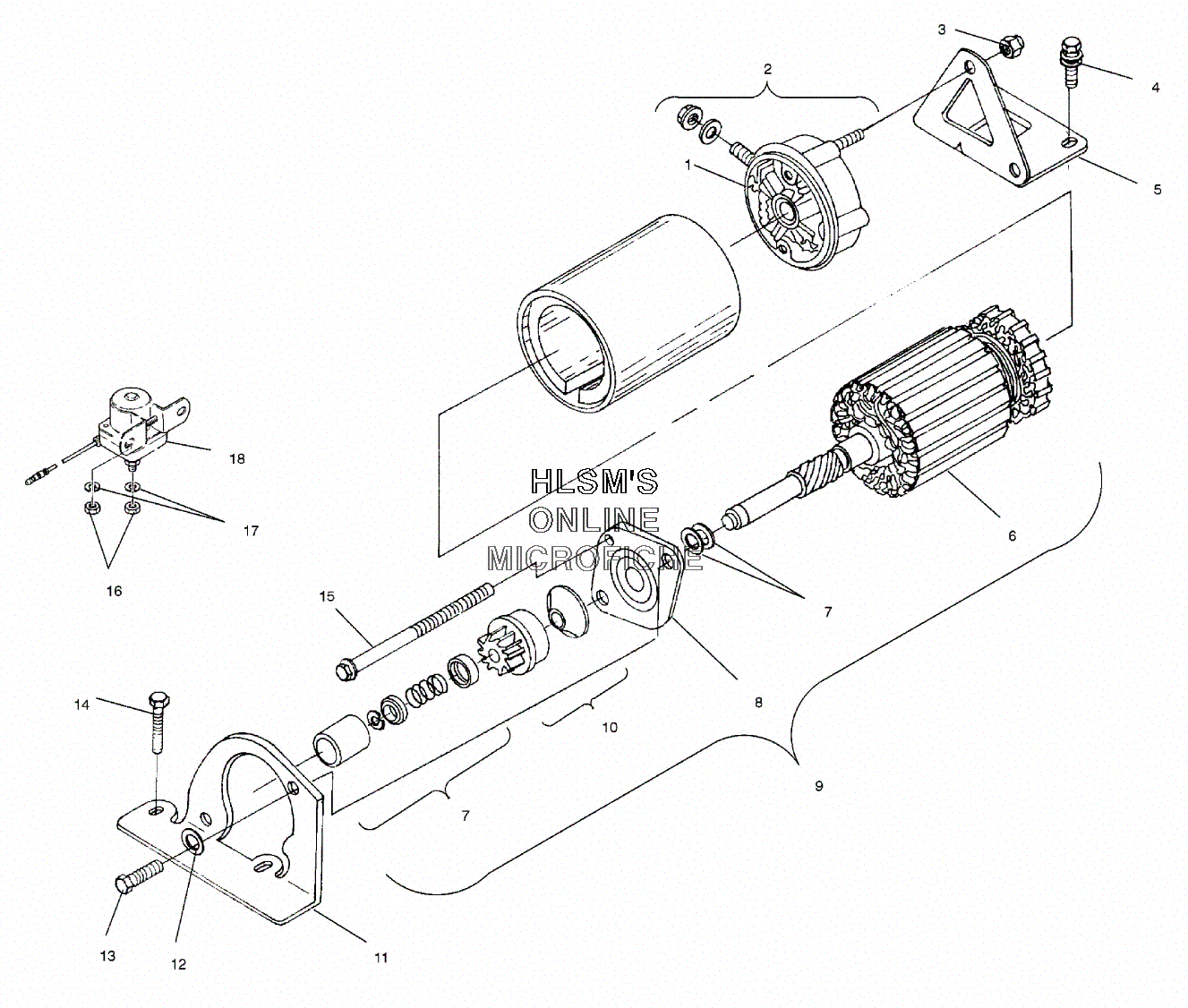

STARTING MOTOR (OPT) для Polaris EURO SPORT TOURING (E01SD5BU) - 2001 года выпуска
-
№АртикулНазвание
-
12200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
22200758 COMMUTATOR CAP ASSY KIT (INCL. 1)COMMUTATOR CAP ASSY KIT (INCL. 1)
-
37542153 NUTNUT
-
47516815 SCREWSCREW
-
55240956 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
62200756 ARMATURE ASSY KITARMATURE ASSY KIT
-
72200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
82200757 DRIVECAP ASSY KITDRIVECAP ASSY KIT
-
94170006 MOTOR, STARTER (DOMESTIC)MOTOR, STARTER (DOMESTIC)
-
102200754 DRIVE ASSY KITDRIVE ASSY KIT
-
115241271 BRACKET, STARTER (2 CYL) (FRONT)BRACKET, STARTER (2 CYL) (FRONT)
-
127552603 WASHERWASHER
-
137512492 SCREWSCREW
-
147516730 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
152200753 SCREW KITSCREW KIT
-
163082939 NUTNUT
-
173080077 WASHER SPRINGWASHER SPRING
-
183083211 SWITCH MAGNETIC (INCL. 16, 17)SWITCH MAGNETIC (INCL. 16, 17)
