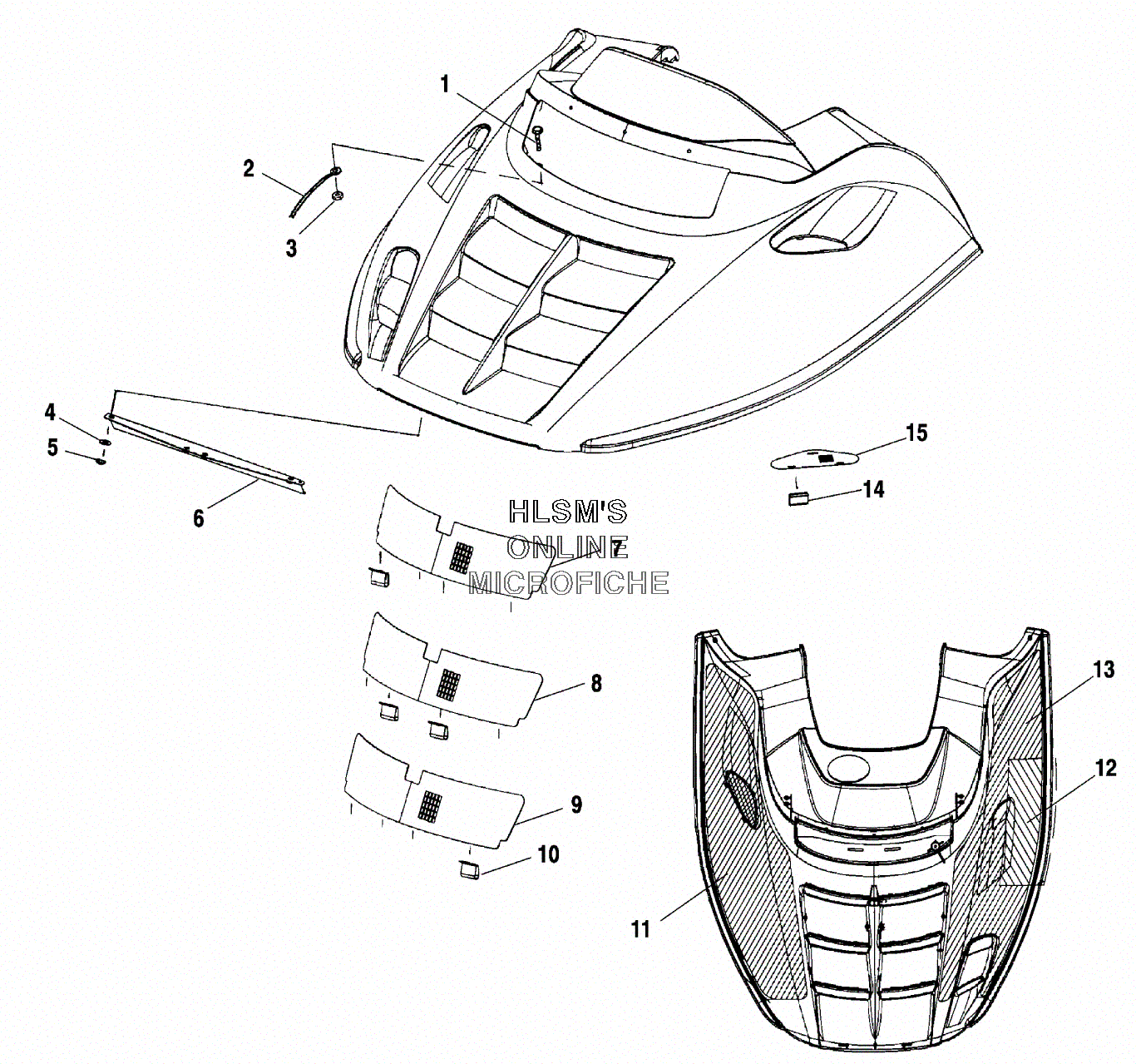

HOOD ASSEMBLY WO/ WINDSHIELD для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска
-
№АртикулНазвание
-
17512103 BOLTBOLT
-
27080414 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
37542122 NUT LOCKNUT LOCK
-
47555806 WASHERWASHER
-
57670017 PUSH ON NUTPUSH ON NUT
-
65243932 DEFLECTOR AIR, LITE (340/440)DEFLECTOR AIR, LITE (340/440)
-
75243629-067 SCREEN HOOD (UPPER/BLK)SCREEN HOOD (UPPER/BLK)
-
85243628-067 SCREEN HOOD (CENTER/BLK)SCREEN HOOD (CENTER/BLK)
-
95243627-067 SCREEN HOOD, LOWER, (BLK)SCREEN HOOD, LOWER, (BLK)
-
107670082 SPEEDCLIP, 'U'TYPESPEEDCLIP, 'U'TYPE
-
115811772 FOAM, HOOD, PSA, 1 (LEFT)FOAM, HOOD, PSA, 1 (LEFT)
-
125811563 FOIL, HOOD, #2 (RIGHT)FOIL, HOOD, #2 (RIGHT)
-
135811773 FOAM, HOOD, PSA1 (RIGHT)FOAM, HOOD, PSA1 (RIGHT)
-
147670040 CLIP- U TYPECLIP- U TYPE
-
155243630-067 SCREEN HOOD, SIDE (BLK)SCREEN HOOD, SIDE (BLK)
