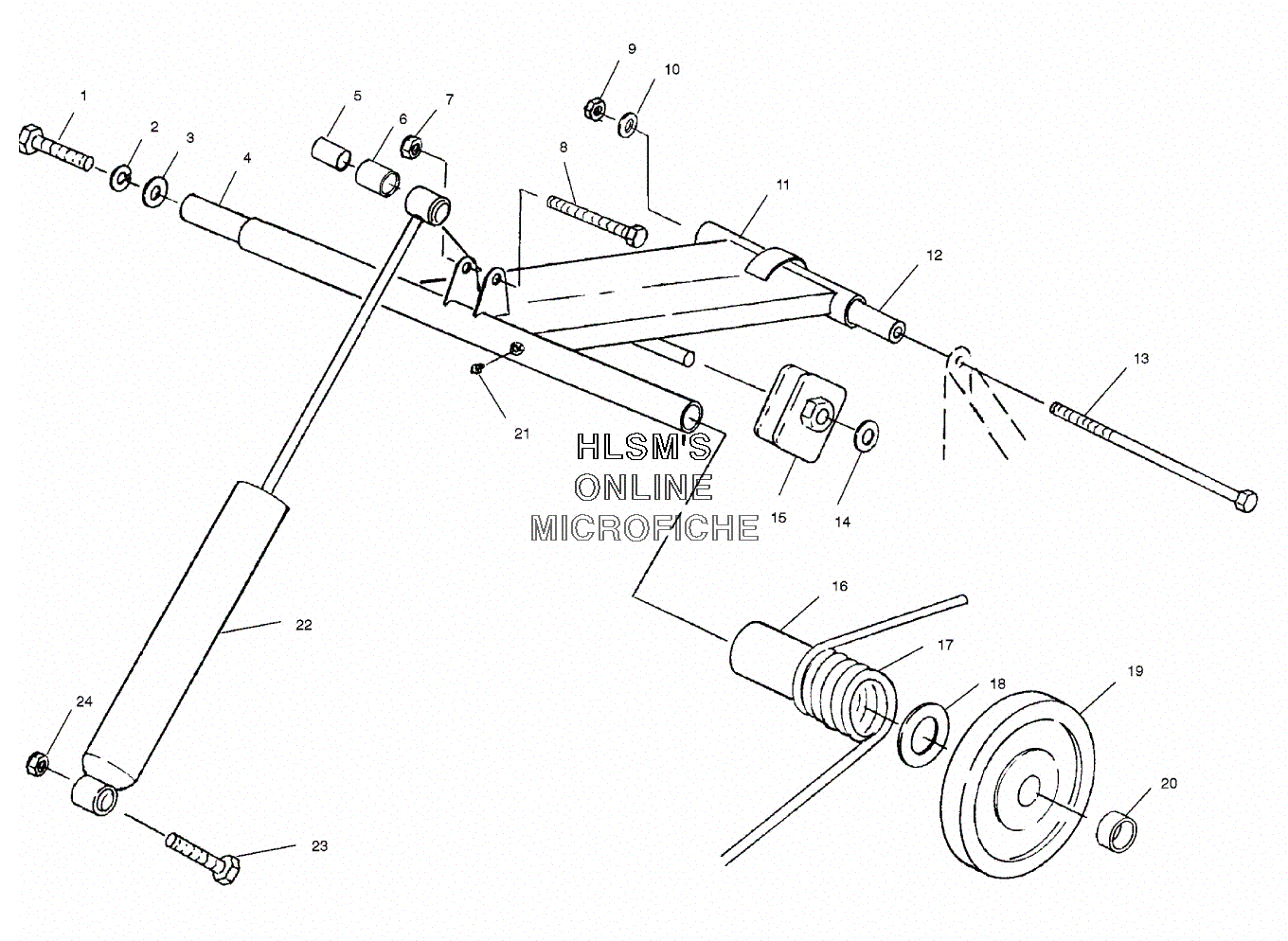

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45131996 SHAFT, MOUNTING (REAR)SHAFT, MOUNTING (REAR)
-
55430537 BUSHINGBUSHING
-
65333030 BUSHING, SHOCK (REAR)BUSHING, SHOCK (REAR)
-
77542324 NUTNUT
-
87512329 BOLTBOLT
-
97542319 NUT FLEX LOC,NUT FLEX LOC,
-
107558402 WASHER STEELWASHER STEEL
-
111541105-067 ARM, TORQUE ARM, XL (REAR/BLK)ARM, TORQUE ARM, XL (REAR/BLK)
-
125333483 TUBETUBE
-
137517757 SCREWSCREW
-
147080394 CLIPCLIP
-
155433211 ROLLER SPRING, ADJUSTER, SQ, RMK, SKSROLLER SPRING, ADJUSTER, SQ, RMK, SKS
-
165521234 TUBE, SPRINGTUBE, SPRING
-
177041856-067 SPRING TORSION (359SQ85Ш) (LEFT/BLK)SPRING TORSION (359SQ85Ш) (LEFT/BLK)
-
177041857-067 SPRING TORSION (359SQ85Ш) (RIGHT/BLK)SPRING TORSION (359SQ85Ш) (RIGHT/BLK)
-
187555877 WASHER, THRUSTWASHER, THRUST
-
191543022 WHEEL, CARRIER ASSYWHEEL, CARRIER ASSY
-
193513504 BEARING (5/8I.D) (1 PER)BEARING (5/8I.D) (1 PER)
-
197710403 RETAINER (1 PER)RETAINER (1 PER)
-
205332730 SPACER CARR.WHEELSPACER CARR.WHEEL
-
217080424 FITTING, LUBE.FITTING, LUBE.
-
227041740 SHOCK, TRACK (REAR)SHOCK, TRACK (REAR)
-
237515433 BOLTBOLT
-
247542439 NUT, NYLOKNUT, NYLOK
