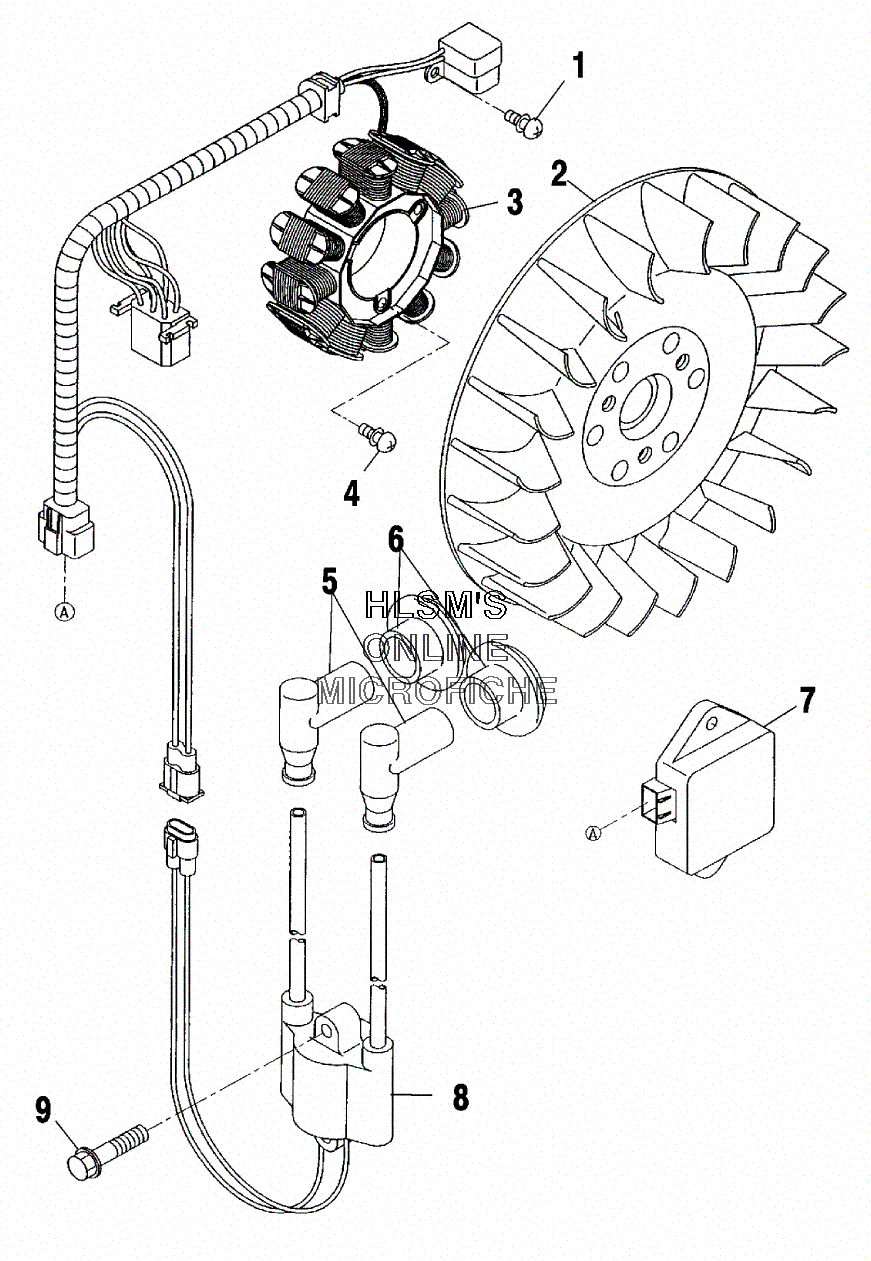

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris SPORT TOURING ES (S01ST5BS) - 2001 года выпуска`
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23085727 FLYWHEEL ASSY.FLYWHEEL ASSY.
-
33085934 STATORSTATOR
-
43085697 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
54020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
63085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
73087106 CDI SYSTEMCDI SYSTEM
-
83085905 IGNITION COIL COMPLIGNITION COIL COMPL
-
93084177 BOLT - FLANGEBOLT - FLANGE
