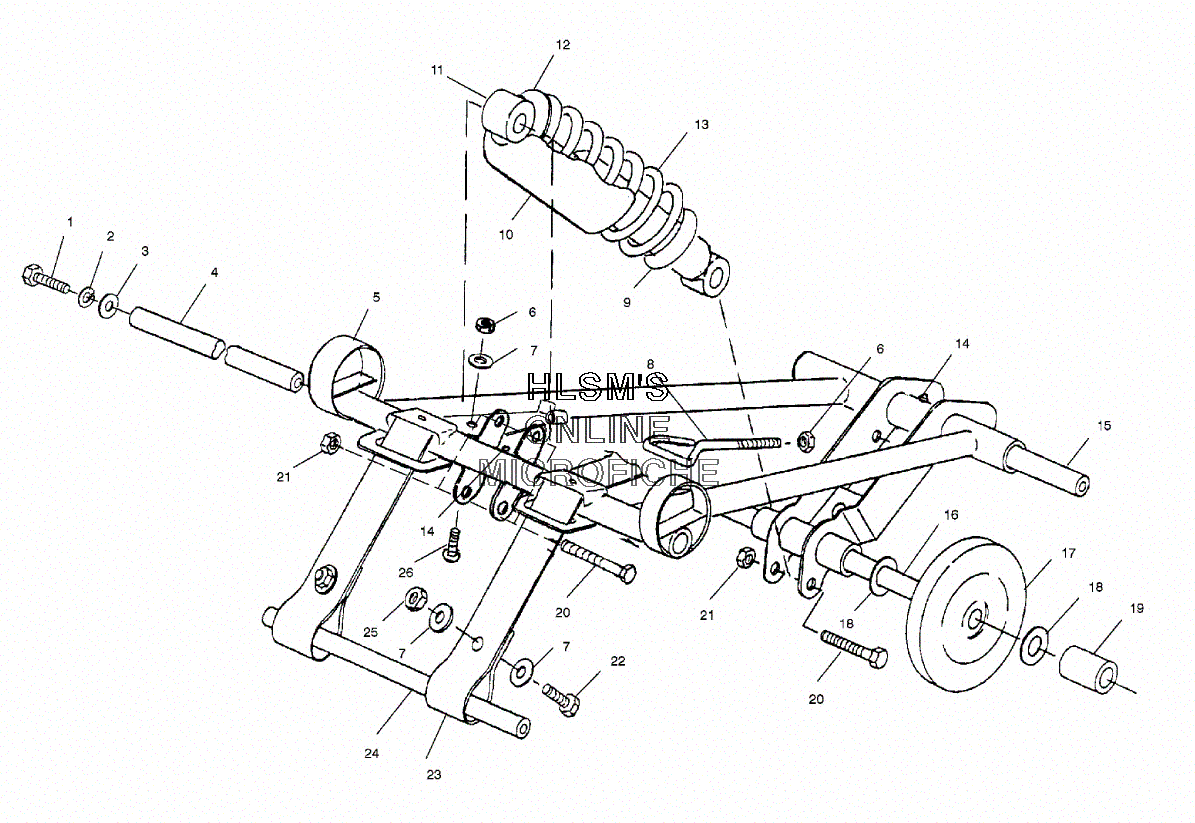

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris SPORT TOURING ES (S01ST5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45020908 SHAFTSHAFT
-
51541466-067 TORQUE ARM (X10) (FRONT/BLK)TORQUE ARM (X10) (FRONT/BLK)
-
67542324 NUTNUT
-
77555716 WASHERWASHER
-
87010050 BOLT, EYEBOLT, EYE
-
95245067 RETAINER, SPRING, GAB, PLATEDRETAINER, SPRING, GAB, PLATED
-
105430671 SHIELD, SPRINGSHIELD, SPRING
-
117041745 SHOCK, TRACK (X10, 136) (FRONT)SHOCK, TRACK (X10, 136) (FRONT)
-
125630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
137041253-067 SPRING, BLACK, COMP.SPRING, BLACK, COMP.
-
147080424 FITTING, LUBEFITTING, LUBE
-
171543018 WHEEL, IDLERWHEEL, IDLER
-
187556301 MACHINERY BUSHINGMACHINERY BUSHING
-
195332784 SPACER (OUTER)SPACER (OUTER)
-
207515433 BOLTBOLT
-
217542411 NUT LOCKNUT LOCK
-
227517313 SCREWSCREW
-
235411045 STRAP, LIMITER (FRONT)STRAP, LIMITER (FRONT)
-
257542344 NUT, NYLOCNUT, NYLOC
-
267512377 BOLTBOLT
