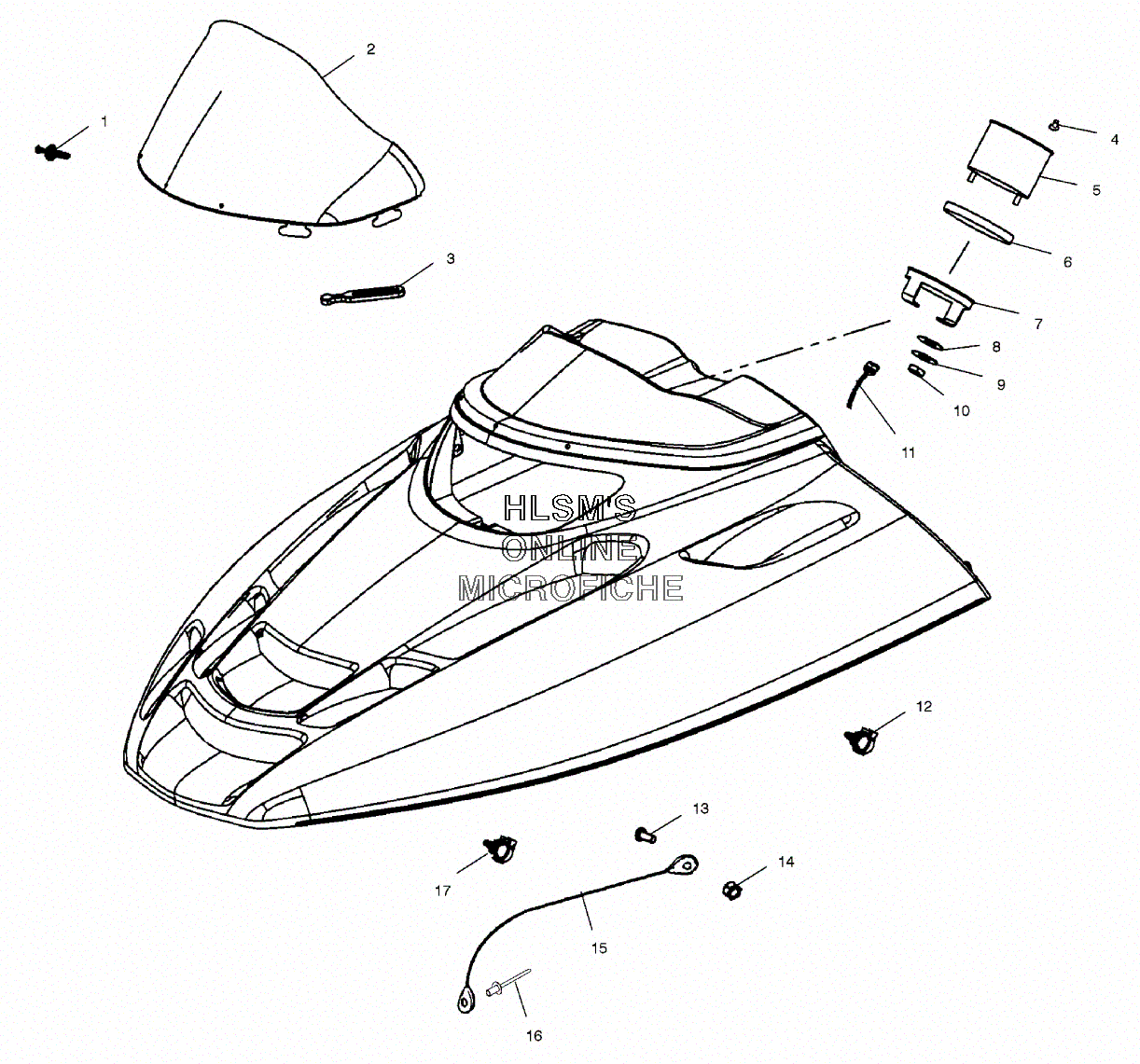

HOOD ASSEMBLY W/ WINDSHIELD для Polaris SUPERSPORT EDGE (BLACK) (S01NB5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI, LOC.RIVET, PLASTI, LOC.
-
25433517 WINDSHIELD, 15''FLR SMK, EDGEWINDSHIELD, 15''FLR SMK, EDGE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280186 KNOB, TRIP ODOMETER, THD (LEFT)KNOB, TRIP ODOMETER, THD (LEFT)
-
53280254 SPEEDO, BACKLIT, 5IN, 120MPHSPEEDO, BACKLIT, 5IN, 120MPH
-
54030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
63280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
73280210 BRACKET, TACH/SPEEDO, 5''BRACKET, TACH/SPEEDO, 5''
-
83280157 WASHER, FLATWASHER, FLAT
-
93280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
103280158 NUTNUT
-
113280139 CABLE, SPEEDO W/FOILCABLE, SPEEDO W/FOIL
-
124020139 CLIP, PLASTICCLIP, PLASTIC
-
137512018 SCREWSCREW
-
147541925 NUTNUT
-
157080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
167621467 RIVET, BLINDRIVET, BLIND
-
174020149 CLIP (ROSEBUD)CLIP (ROSEBUD)
