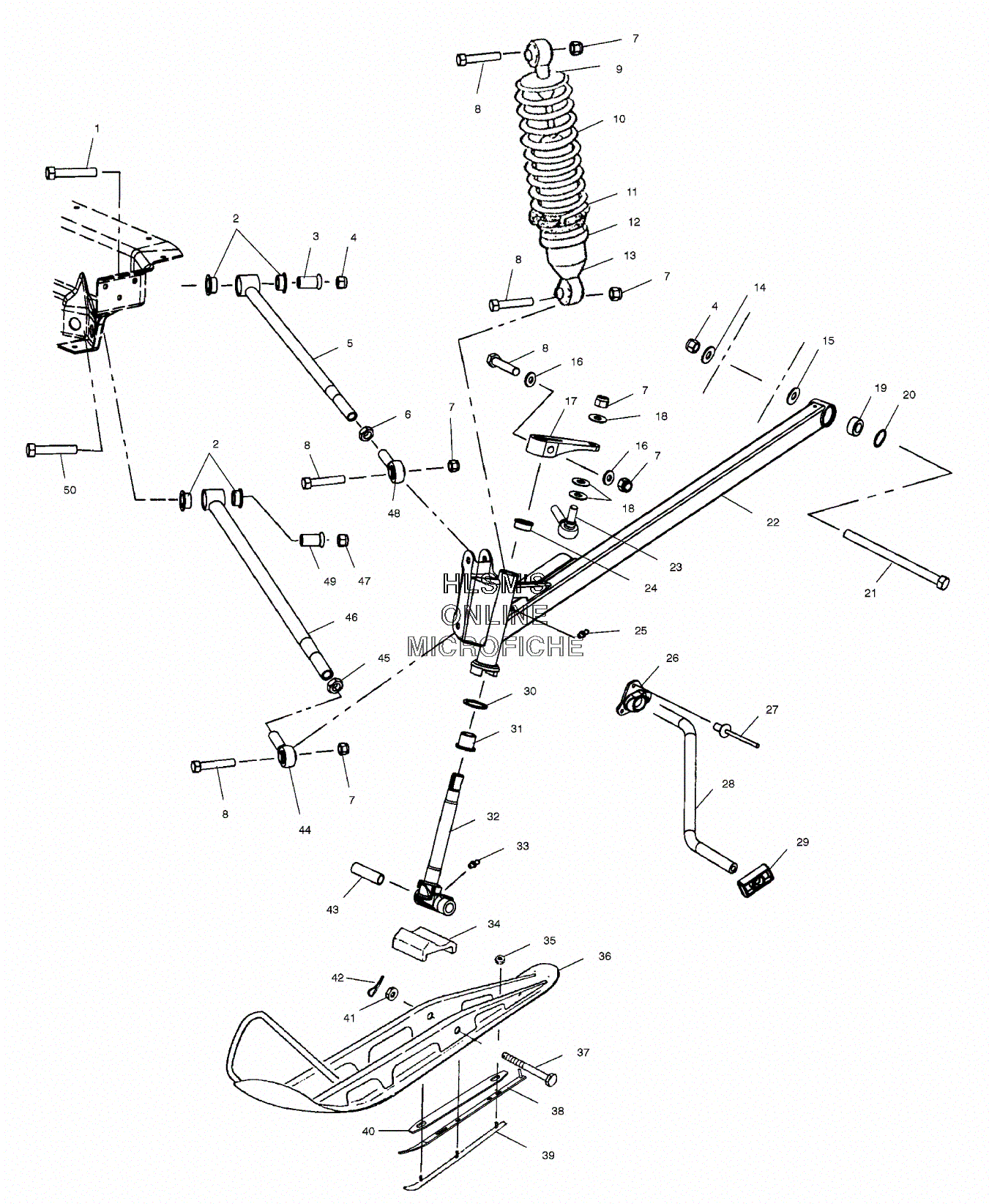

SUSPENSION - FRONT W/ SKI для Polaris SUPERSPORT EDGE (BLACK) (S01NB5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512597 BOLTBOLT
-
25434036 BUSHING, RAD ROD PIVOT (INNER)BUSHING, RAD ROD PIVOT (INNER)
-
35132779 BUSHING, SHLOUDER (.443X.750X1.215)BUSHING, SHLOUDER (.443X.750X1.215)
-
47547066 NUT, NYLOKNUT, NYLOK
-
51820679-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87517583 SCREWSCREW
-
95630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
107041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
115431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
121500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
137041932 SHOCK, IFS, NITREX 11.09X16.35SHOCK, IFS, NITREX 11.09X16.35
-
147555820 WASHERWASHER
-
155132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
167555832 WASHERWASHER
-
175132728 ARM, STEERING MACHINED EDGEARM, STEERING MACHINED EDGE
-
187555797 WASHERWASHER
-
197061042 BEARING, SPHERICAL, 7/16, PLASTICBEARING, SPHERICAL, 7/16, PLASTIC
-
207710437 RING, RETAININGRING, RETAINING
-
217512099 BOLTBOLT
-
221820962-067 TRAILING ARM ASSY., SVC (LEFT/BLACK) (INCL. 19, 20)TRAILING ARM ASSY., SVC (LEFT/BLACK) (INCL. 19, 20)
-
221820963-067 TRAILING ARM ASSY., SVC (RIGHT, BLACK) (INCL. 19, 20)TRAILING ARM ASSY., SVC (RIGHT, BLACK) (INCL. 19, 20)
-
243573909 BUSHING, FLANGEBUSHING, FLANGE
-
257080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
265433234 BUSHING, TORSION BARBUSHING, TORSION BAR
-
277621477 RIVETRIVET
-
285244415-067 BAR, TORSION, 1/2, 42.5 EDGE (BLACK)BAR, TORSION, 1/2, 42.5 EDGE (BLACK)
-
295433884 SLIDE, TORSION BAR 1/2SLIDE, TORSION BAR 1/2
-
307556509 WASHER SPECIALWASHER SPECIAL
-
313574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
326230160-067 SHAFT, SPINDLE HARDENED (BLACK)SHAFT, SPINDLE HARDENED (BLACK)
-
337080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
345411083 STOP, RUBBERSTOP, RUBBER
-
357542324 NUTNUT
-
361820430-067 SKI WELDSKI WELD
-
377515462 BOLTBOLT
-
381011829-067 PLATE, SKAGPLATE, SKAG
-
382870976 SKAG, PR, 3'' CARBIDE E-Z STEER (INCL. SKAG AND PLATE)SKAG, PR, 3'' CARBIDE E-Z STEER (INCL. SKAG AND PLATE)
-
391820318-067 SKAG (BLACK)SKAG (BLACK)
-
405245145-067 SHIM, SKAG PLATE (BLACK)SHIM, SKAG PLATE (BLACK)
-
417542438 NUT, CASTLENUT, CASTLE
-
427661209 PIN, COTTERPIN, COTTER
-
435010158 BUSHING, PIVOTBUSHING, PIVOT
-
447061060 ROD END RADIUS 1/2ROD END RADIUS 1/2
-
457542711 NUT-JAMNUT-JAM
-
461820677-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
477542703 NUT FLEXNUT FLEX
-
487061061 ROD END, RADIUS, 7/16ROD END, RADIUS, 7/16
-
495132780 BUSHING, SHOULDER (.505X.750X1.215)BUSHING, SHOULDER (.505X.750X1.215)
-
507512684 BOLTBOLT
