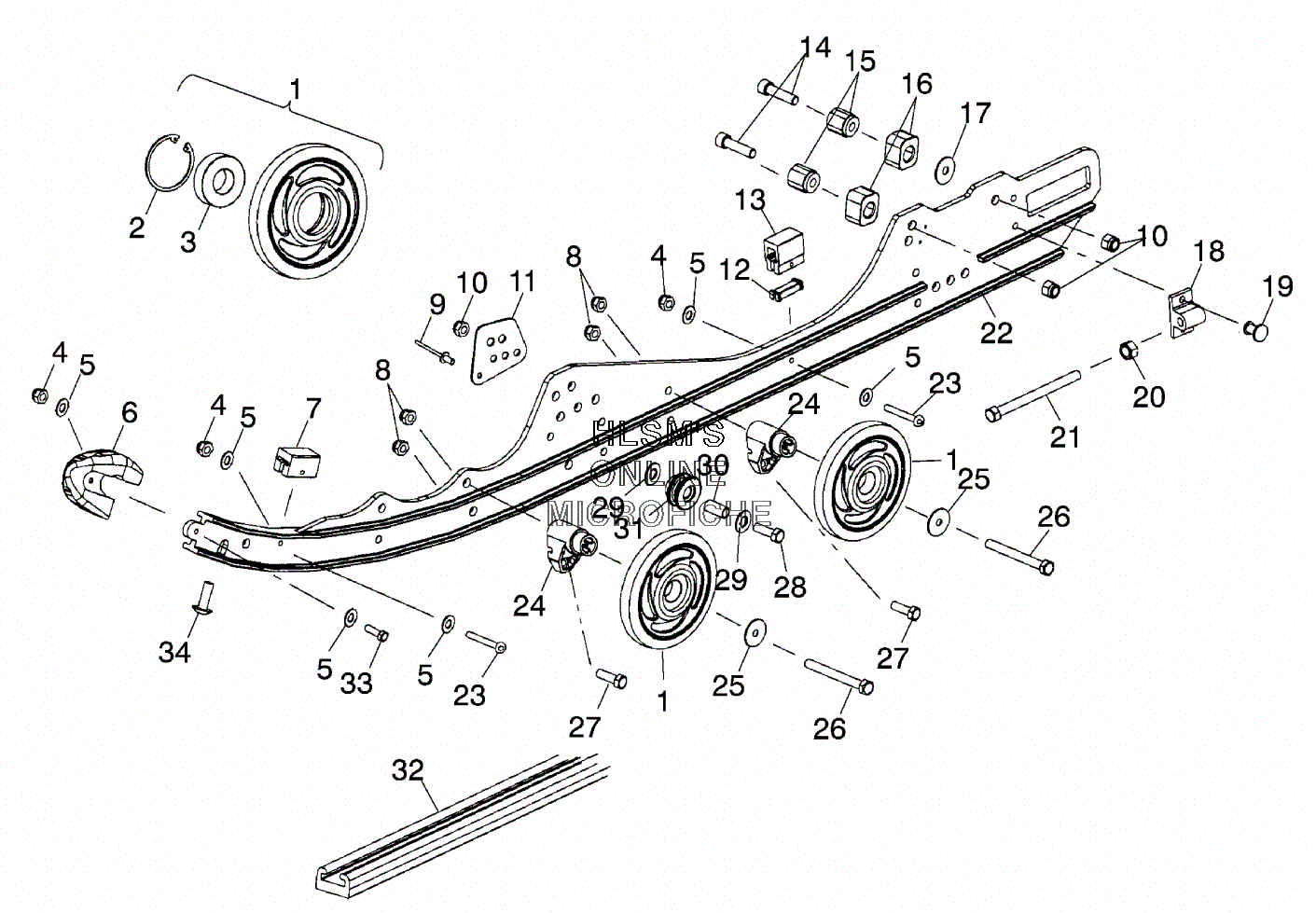

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris SUPERSPORT EDGE (BLUE) (S01NB5BSA) - 2001 года выпуска
-
№АртикулНазвание
-
11590275-293 WHEEL, ADM (INDY RED) (INCL. 2, 3)WHEEL, ADM (INDY RED) (INCL. 2, 3)
-
27718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47541925 NUTNUT
-
57555783 WASHERWASHER
-
65433735 CAP, RAIL TIPCAP, RAIL TIP
-
75521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
87542324 NUTNUT
-
97661845 RIVETRIVET
-
107542439 NUT, NYLOKNUT, NYLOK
-
115244677 BRACKET, RAIL REINFBRACKET, RAIL REINF
-
125432946 LINER, BUMPERLINER, BUMPER
-
135521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
147515537 BOLTBOLT
-
155131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
165410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
175244371 SPACER, 1.00X.390X.105SPACER, 1.00X.390X.105
-
185132444 BLOCK, IDLER BOLT ADJUST 7/16BLOCK, IDLER BOLT ADJUST 7/16
-
197621501 RIVETRIVET
-
207547156 NUT-7/16-14-JAMNUT-7/16-14-JAM
-
217517773 SCREWSCREW
-
221541480 RAIL, ASSY., 121 (INCL. 6, 7, 13, 16, 18) (LEFT)RAIL, ASSY., 121 (INCL. 6, 7, 13, 16, 18) (LEFT)
-
221541481 RAIL, ASSY., 121 (INCL. 6, 7, 13, 16, 18) (RIGHT)RAIL, ASSY., 121 (INCL. 6, 7, 13, 16, 18) (RIGHT)
-
237510504 SCREWSCREW
-
245631065 BLOCK, WHEEL MOUNT, LWTBLOCK, WHEEL MOUNT, LWT
-
257571618 WASHERWASHER
-
267515346 BOLTBOLT
-
277515317 BOLTBOLT
-
287515438 BOLTBOLT
-
297555983 WASHER, FLATWASHER, FLAT
-
305333948 SPACER-.407X.625X1.33SPACER-.407X.625X1.33
-
315433959 ROLLER-SPRING, SQUAREROLLER-SPRING, SQUARE
-
325521528 HI-FAX, XL, SERVICE BASICHI-FAX, XL, SERVICE BASIC
-
337511930 SCREWSCREW
-
347515199 SCREWSCREW
