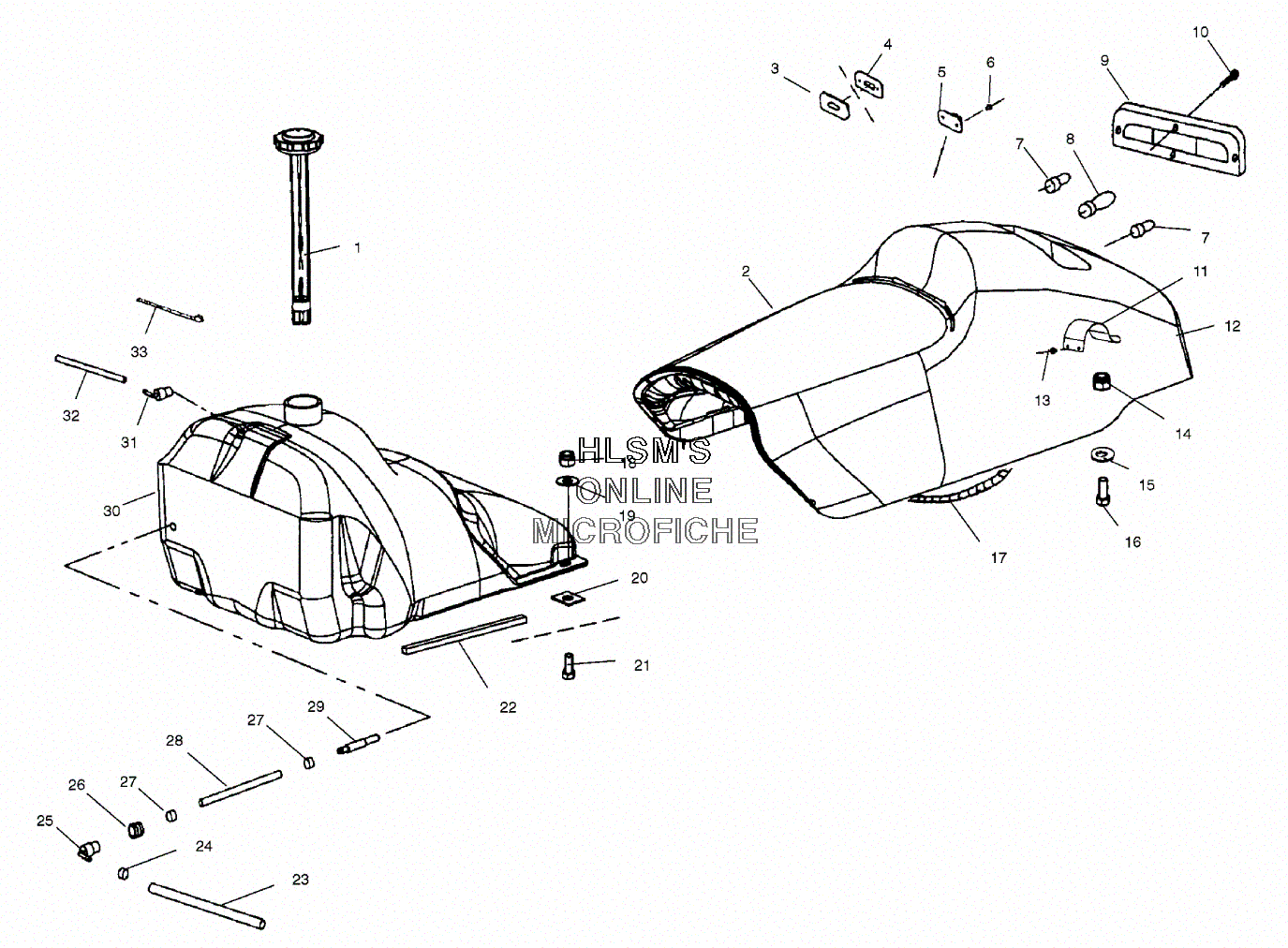

SEAT W/ GAS TANK ASSEMBLY для Polaris SUPERSPORT EDGE (BLUE) (S01NB5BSA) - 2001 года выпуска
-
№АртикулНазвание
-
11240066 CAP, FUEL, 12.5, W/GAUGECAP, FUEL, 12.5, W/GAUGE
-
22682587 CUSHION, ASSY., SEAT (INCL. 2-12, 17)CUSHION, ASSY., SEAT (INCL. 2-12, 17)
-
22682588 SEAT COVER ASSY.SEAT COVER ASSY.
-
37080550 GROMMET, RELATCH, 1'', BOTT.GROMMET, RELATCH, 1'', BOTT.
-
47080549 GROMMET, RELATCH, 1'', TOPGROMMET, RELATCH, 1'', TOP
-
57080548 TWISTLOCK, RELATCH, 1'', W/HOLETWISTLOCK, RELATCH, 1'', W/HOLE
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
84030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
95430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
107511840 SCREWSCREW
-
115243185 RETAINER-CLIP, TOOL POUCHRETAINER-CLIP, TOOL POUCH
-
125433341 HOUSING-TAILLIGHTHOUSING-TAILLIGHT
-
137621472 RIVETRIVET
-
147547114 NUT, WELD, TAB 1/4-20T-L0KNUT, WELD, TAB 1/4-20T-L0K
-
157558301 WASHERWASHER
-
167512276 BOLTBOLT
-
172460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
187542122 NUT-LOCKNUT-LOCK
-
197555960 WASHERWASHER
-
207670021 SPEED NUTSPEED NUT
-
217512193 BOLTBOLT
-
225810063 PAD-GAS TANKPAD-GAS TANK
-
228360033 TAPE, FOAMTAPE, FOAM
-
238350018-600 TUBING, ETHER ERETHNE 160CM SVCTUBING, ETHER ERETHNE 160CM SVC
-
247080307 CLAMPCLAMP
-
257052259 FITTING, 1/4'' 90Ш DEXFITTING, 1/4'' 90Ш DEX
-
267052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
277080402 RING, COMPRESSIONRING, COMPRESSION
-
288350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
297052301 PICK-UP-FUEL, W/FILTER 105MICRNPICK-UP-FUEL, W/FILTER 105MICRN
-
302520173 TANK, FUEL, EDGE (INCL. 29-31)TANK, FUEL, EDGE (INCL. 29-31)
-
317052095 FITTING, 90 DEG 1/8FITTING, 90 DEG 1/8
-
328450061-600 FUELLINE, 3MMX7MMFUELLINE, 3MMX7MM
-
337080804 CABLE TIE-RELEASABLE, 5 1/2''CABLE TIE-RELEASABLE, 5 1/2''
