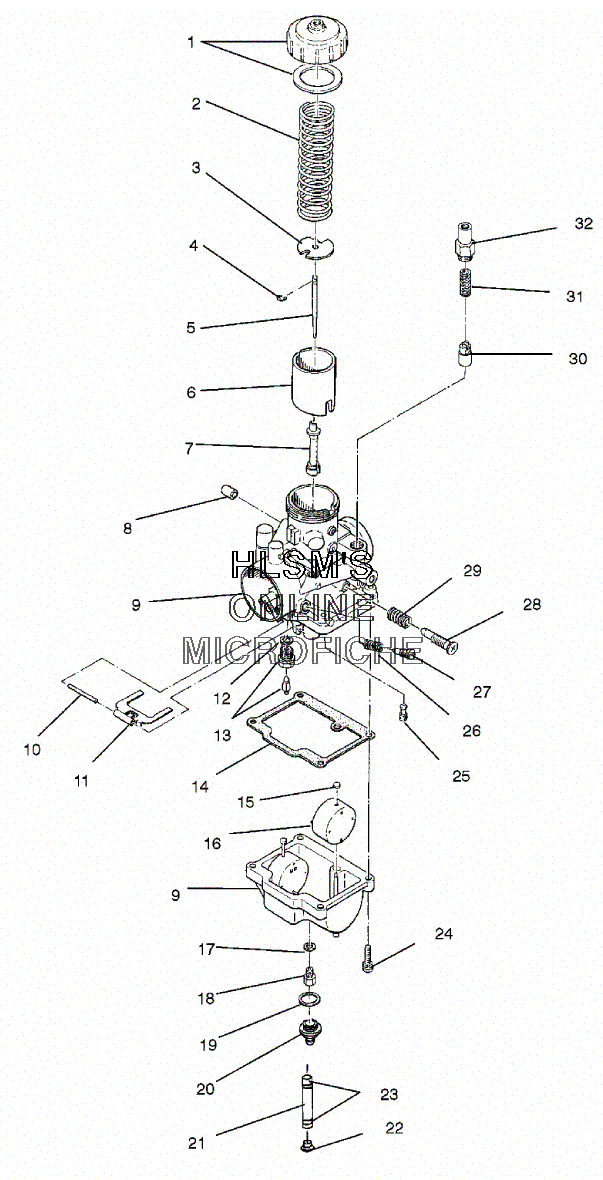

CARBURETOR ASSEMBLY для Polaris WIDETRAK LX (S01SU4BS) - 2001 года выпуска
-
№АртикулНазвание
-
13130184 TOP ASSY.TOP ASSY.
-
23130318 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATEPLATE
-
43130508 E-RINGE-RING
-
53130423 NEEDLE, JET (6EJ26-2)NEEDLE, JET (6EJ26-2)
-
63130372 VALVE, THROTTLE (3.0)VALVE, THROTTLE (3.0)
-
73130160 JET NEEDLE (166)JET NEEDLE (166)
-
83130479 CAPCAP
-
93130711 CARBURETOR (INCL. 1-20, 24-32)CARBURETOR (INCL. 1-20, 24-32)
-
103130361 PIN, FLOATPIN, FLOAT
-
113130018 ARM, FLOATARM, FLOAT
-
123130017 PACKINGPACKING
-
133131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
143130020 PACKING, FLOAT CHAMBERPACKING, FLOAT CHAMBER
-
153130237 CAPCAP
-
163130430 FLOAT ASSY.FLOAT ASSY.
-
173130014 WASHERWASHER
-
183130122 JET, MAIN, HEXAGON HD (#195)JET, MAIN, HEXAGON HD (#195)
-
193130239 O-RINGO-RING
-
205020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
218350017-600 FUEL LINE, ETHER (5/16'') (RED)FUEL LINE, ETHER (5/16'') (RED)
-
225431893 PLUG, TRAPPLUG, TRAP
-
237080003 CLAMP, HOSECLAMP, HOSE
-
243130025 SCREW AND WASHERSCREW AND WASHER
-
253130066 JET, PILOT (#35)JET, PILOT (#35)
-
263130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
273130011 SCREW, AIRSCREW, AIR
-
283130009 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
293130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
303130328 PLUNGER ASSY., STARTERPLUNGER ASSY., STARTER
-
313130006 SPRING, PLUNGERSPRING, PLUNGER
-
323130199 HOLDER, GUIDEHOLDER, GUIDE
