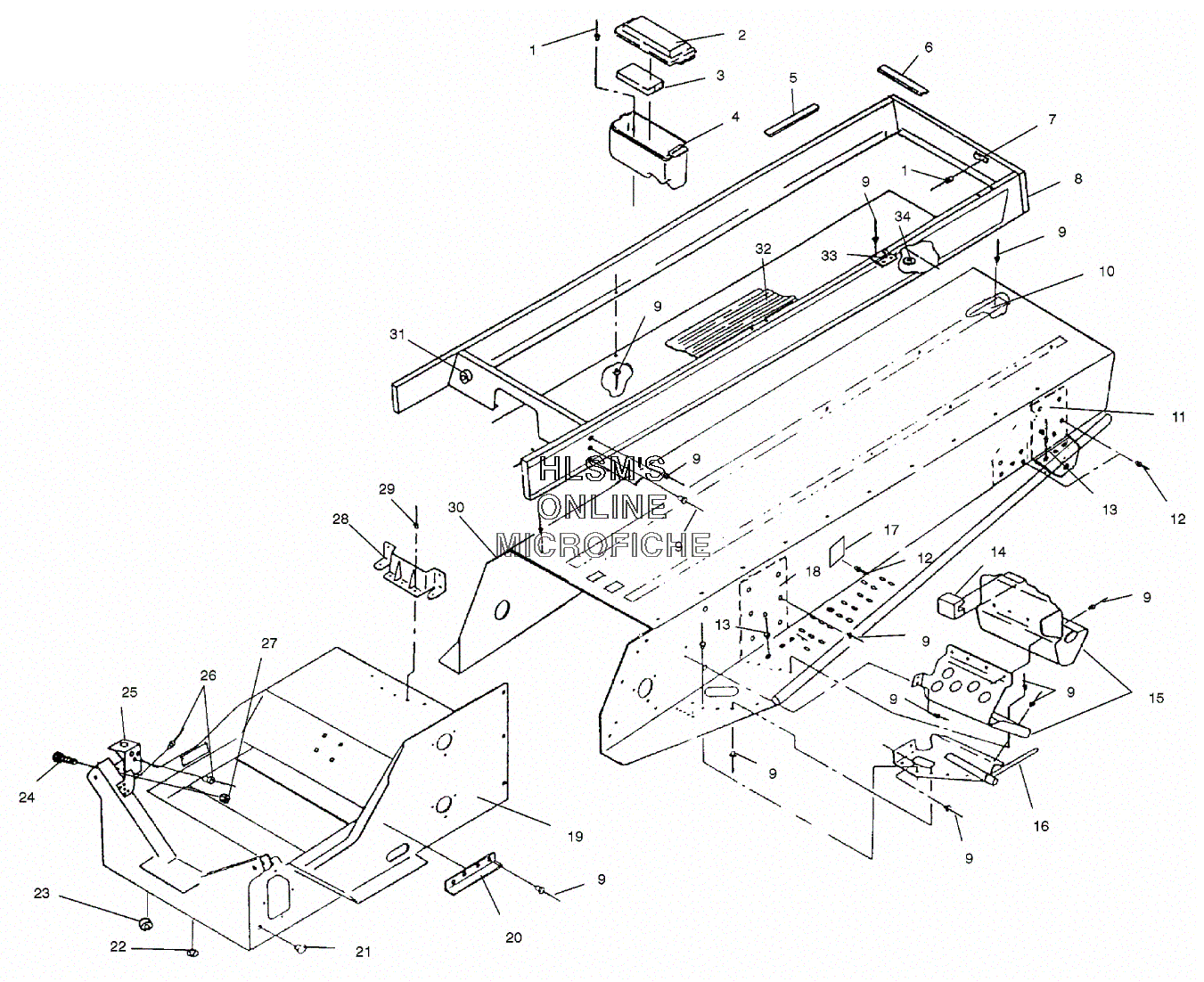

TUNNEL ASSEMBLY для Polaris WIDETRAK LX (S01SU4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17621432 RIVET (3/16X.402)RIVET (3/16X.402)
-
25430719 COVER, TOOL BOXCOVER, TOOL BOX
-
35811051 FOAM, TOOL BOXFOAM, TOOL BOX
-
45430716 TOOL BOXTOOL BOX
-
55410562 SEAL, SEAT RISERSEAL, SEAT RISER
-
65410563 SEAL, SHORT, SEAT RISERSEAL, SHORT, SEAT RISER
-
77080393 CLIP, HALFCLIP, HALF
-
81011947-067 RISER, SEAT ASSY.RISER, SEAT ASSY.
-
97661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
105510233 STRIP, WEARSTRIP, WEAR
-
111012387-067 PAD, HD.SUSPENSION (LEFT)PAD, HD.SUSPENSION (LEFT)
-
111012388-067 PAD, HD.SUSPENSION (RIGHT)PAD, HD.SUSPENSION (RIGHT)
-
127661837 RIVETRIVET
-
137661844 RIVET, SEMI-TUBE.RIVET, SEMI-TUBE.
-
145521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
151012734 FOOTREST ASSY. (LEFT)FOOTREST ASSY. (LEFT)
-
151012735 FOOTREST ASSY. (RIGHT)FOOTREST ASSY. (RIGHT)
-
161012905-067 SUPPORT, TRAILING.ARM (LEFT/BLK).SUPPORT, TRAILING.ARM (LEFT/BLK).
-
161012906-067 SUPPORT, TRAILING.ARM (RIGHT/BLK).SUPPORT, TRAILING.ARM (RIGHT/BLK).
-
175211220-067 PLATE, TUNNEL, CARRIER (BLK).PLATE, TUNNEL, CARRIER (BLK).
-
185211323-067 BRACKET, SUSPENSION (FRONT/BLK).BRACKET, SUSPENSION (FRONT/BLK).
-
191012728-067 BULKHEAD (BLK)BULKHEAD (BLK)
-
205222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
217080416 PLUG, HOLEPLUG, HOLE
-
227080398 PLUG, HOLEPLUG, HOLE
-
237080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
247512307 SCREWSCREW
-
267661639 RIVET (3/16-.214-.420)RIVET (3/16-.214-.420)
-
277542321 NUT LOCKNUT LOCK
-
285221932-067 BRACKET, GASTANKBRACKET, GASTANK
-
297621301 RIVETRIVET
-
301012402 TUNNEL, HD (LX) (INCL. 9-11, 18)TUNNEL, HD (LX) (INCL. 9-11, 18)
-
317080392 BUSHING (OPEN/CLOSE)BUSHING (OPEN/CLOSE)
-
325410561 PROTECTOR, RISERPROTECTOR, RISER
-
337020023 HINGE, FLATHINGE, FLAT
-
345410437 GROMMETGROMMET
