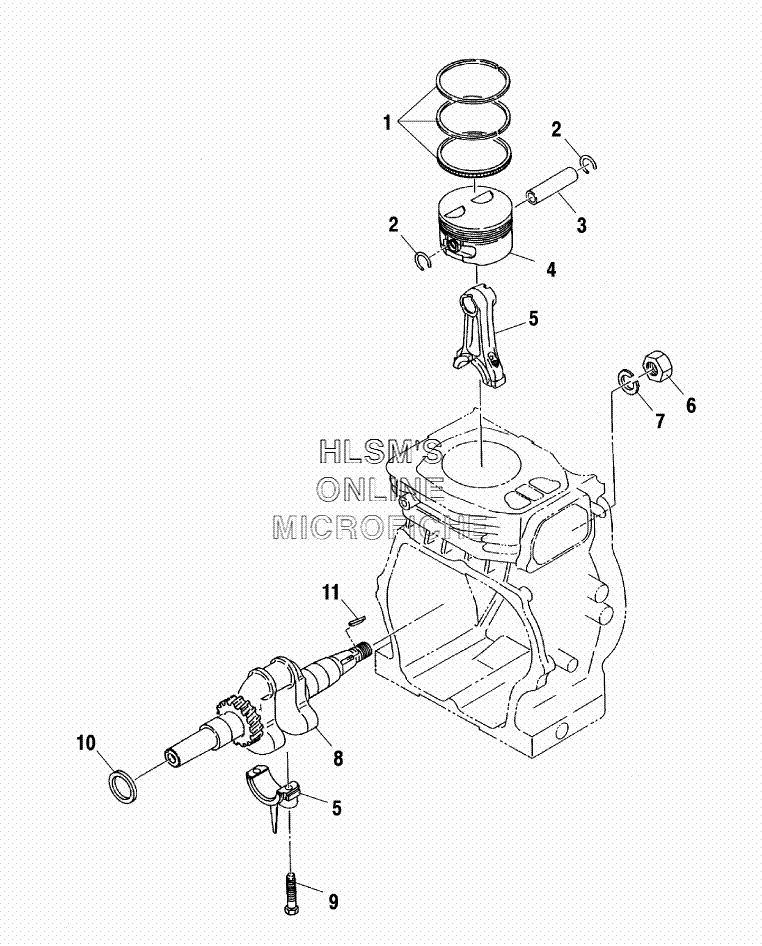

PISTON AND CRANKSHAFT для Polaris 120 XC SP (S02WB1AS) - 2002 года выпуска
-
№АртикулНазвание
-
13086550 RING (STANDARD)RING (STANDARD)
-
13086551 RING (0.25MM O/S) (OPT)RING (0.25MM O/S) (OPT)
-
13086552 RING (0.50MM O/S) (OPT)RING (0.50MM O/S) (OPT)
-
23086553 CLIP, PISTON PINCLIP, PISTON PIN
-
33086546 PIN, PISTONPIN, PISTON
-
43086969 PISTON SET (STANDARD) (INCL. 2)PISTON SET (STANDARD) (INCL. 2)
-
43086970 PISTON SET (0.25MM O/S) (INCL. 2) (OPT)PISTON SET (0.25MM O/S) (INCL. 2) (OPT)
-
43086971 PISTON SET (0.50MM O/S) (INCL. 2) (OPT)PISTON SET (0.50MM O/S) (INCL. 2) (OPT)
-
53086544 ROD, CONNECTING (INCL. 9)ROD, CONNECTING (INCL. 9)
-
63240294 NUTNUT
-
73086540 WASHER, SPRINGWASHER, SPRING
-
83086949 CRANKSHAFTCRANKSHAFT
-
93086545 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
103086537 SPACER (0.6MM)SPACER (0.6MM)
-
103086538 SPACER (0.8MM)SPACER (0.8MM)
-
103086539 SPACER (1.0MM)SPACER (1.0MM)
-
113086536 KEY, WOODRUFFKEY, WOODRUFF
Все узлы модели:
- BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY
- • PISTON AND CRANKSHAFT
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- SPEED CONTROL - GOVERNOR
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
