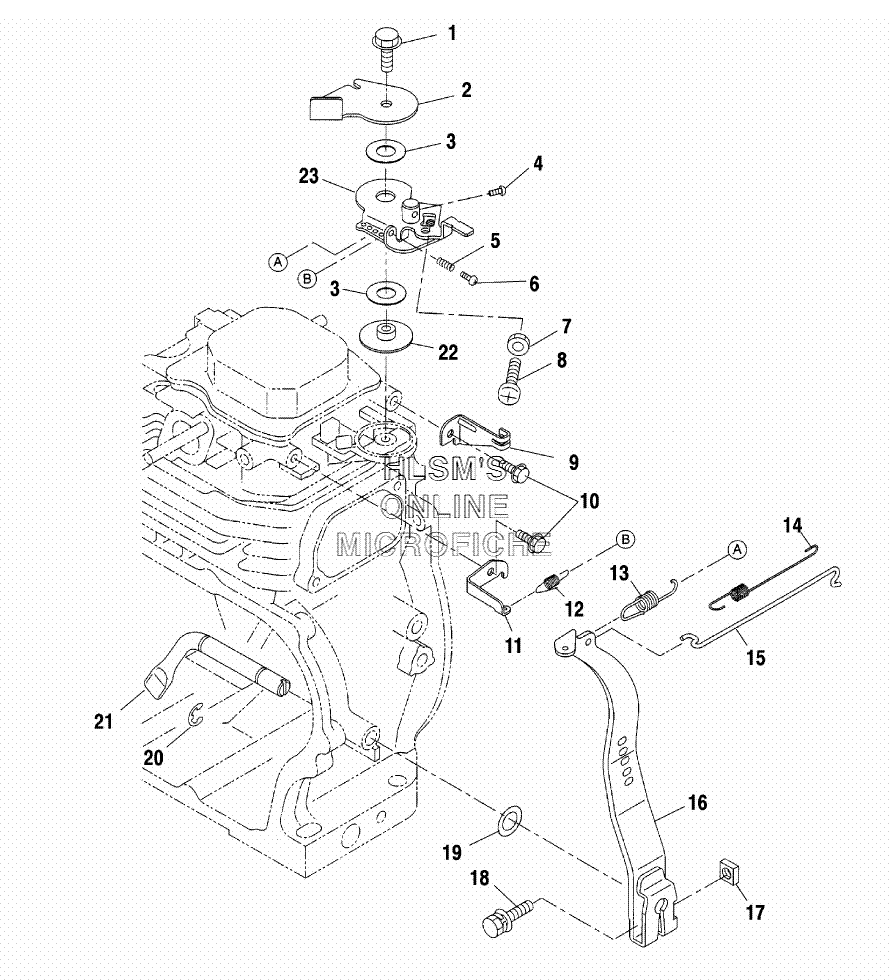

SPEED CONTROL - GOVERNOR для Polaris 120 XC SP (S02WB1AS) - 2002 года выпуска
-
№АртикулНазвание
-
13084566 BOLT, FLANGEBOLT, FLANGE
-
23086605 PLATE, STOPPLATE, STOP
-
33086954 WASHER, FRICTIONWASHER, FRICTION
-
43086609 SCREWSCREW
-
53086606 SPRING, IDLE SETSPRING, IDLE SET
-
63081497 SCREWSCREW
-
73083073 NUTNUT
-
83083784 SCREW AND WASHERSCREW AND WASHER
-
93086973 BRACKET, WIREBRACKET, WIRE
-
103086125 BOLT, FLANGEBOLT, FLANGE
-
113086862 BRACKET, RETURN SPRINGBRACKET, RETURN SPRING
-
123086956 SPRING, RETURNSPRING, RETURN
-
133086599 SPRING, GOVERNORSPRING, GOVERNOR
-
143087145 SPRING, RODSPRING, ROD
-
153086596 ROD, GOVERNORROD, GOVERNOR
-
163086594 LEVER, GOVERNORLEVER, GOVERNOR
-
173086598 NUTNUT
-
183082038 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
193082673 WASHERWASHER
-
203086053 CLIPCLIP
-
213086595 SHAFT, GOVERNORSHAFT, GOVERNOR
-
223086955 SPACERSPACER
-
233086953 CONTROL, SPEEDCONTROL, SPEED
