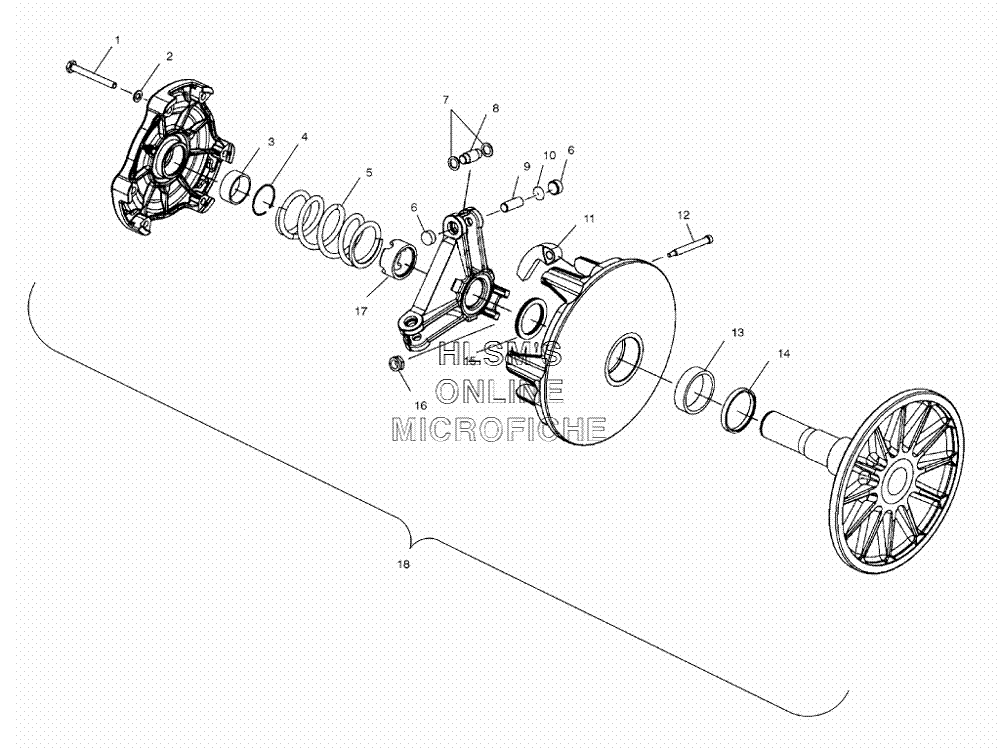

CLUTCH - DRIVE для Polaris 440 PRO X FAN COOLED (S02NX4FS) - 2002 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK, WASHERLOCK, WASHER
-
33576516 COVER, BEARINGCOVER, BEARING
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041988 SPRING, CLUTCH DRIVE (ALMOND/RED)SPRING, CLUTCH DRIVE (ALMOND/RED)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95133079 PIN, ROLLERPIN, ROLLER
-
102200387 SHIM DRIVE CLUTCH KITSHIM DRIVE CLUTCH KIT
-
111322004 WEIGHT/BUSHING ASSY.WEIGHT/BUSHING ASSY.
-
127515105 PIN, WEIGHT HARDENEDPIN, WEIGHT HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155210754 SPACER (.050MM)SPACER (.050MM)
-
155210753 SPACER (.032MM)SPACER (.032MM)
-
155210752 SPACER (.020MM)SPACER (.020MM)
-
167541906 NUT FLEX LOCNUT FLEX LOC
-
175020425 NUT, JAMNUT, JAM
-
181321699 CLUTCH, BASIC (INCL. ALL LESS 5, 11)CLUTCH, BASIC (INCL. ALL LESS 5, 11)
