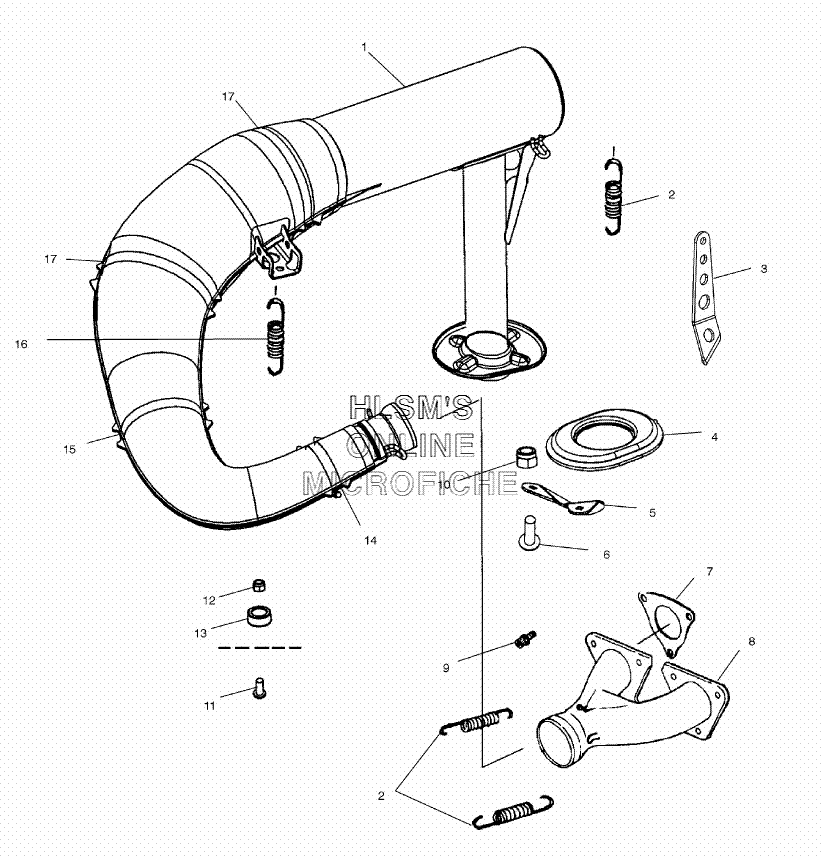

EXHAUST SYSTEM для Polaris 440 PRO X FAN COOLED (S02NX4FS) - 2002 года выпуска
-
№АртикулНазвание
-
11261206 TUNED PIPE ASSY. (INCL. 1, 14, 15, 17)TUNED PIPE ASSY. (INCL. 1, 14, 15, 17)
-
15246152 COVER, TUNED PIPE (TOP)COVER, TUNED PIPE (TOP)
-
15246153 COVER, TUNED PIPE (BOTTOM)COVER, TUNED PIPE (BOTTOM)
-
15830222 MATTE, SOUND (TOP)MATTE, SOUND (TOP)
-
27041687 SPRING, EXHAUSTSPRING, EXHAUST
-
35246202 BRACKET, RETAINER EXHAUSTBRACKET, RETAINER EXHAUST
-
45411902 BOOT, EXHAUST OUTLETBOOT, EXHAUST OUTLET
-
55243929 DEFLECTOR, SNOW EXHAUSTDEFLECTOR, SNOW EXHAUST
-
67512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
73085714 GASKET, EXHAUSTGASKET, EXHAUST
-
81261205-029 WELD, MANIFOLD (BLACK)WELD, MANIFOLD (BLACK)
-
97517555 SCREWSCREW
-
107542321 NUT, FLANGENUT, FLANGE
-
117512377 BOLTBOLT
-
127542324 NUTNUT
-
135433576 DAMPENER, VIBRATIONSDAMPENER, VIBRATIONS
-
147080739 CLAMP, WORMCLAMP, WORM
-
157080741 CLAMP, WORMCLAMP, WORM
-
167042029 SPRING, EXHAUSTSPRING, EXHAUST
-
177080811 CLAMP, WORM DRIVECLAMP, WORM DRIVE
