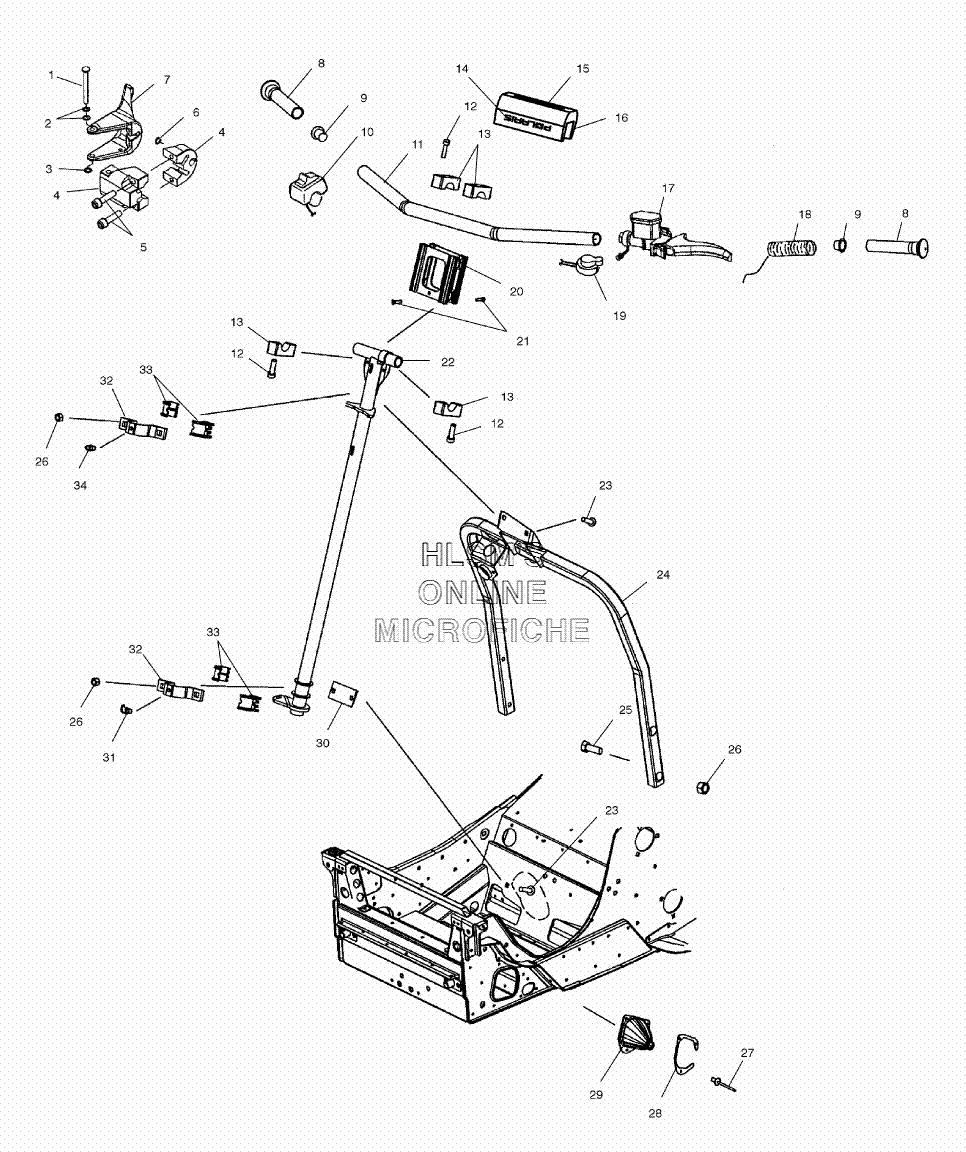

HANDLEBAR ASSEMBLY для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска
-
№АртикулНазвание
-
17661624 PIN, HINGEPIN, HINGE
-
27555730 WASHERWASHER
-
37710401 E-RINGE-RING
-
45132965 BLOCK, THROTTLE (REAR, MACHINED)BLOCK, THROTTLE (REAR, MACHINED)
-
45132966 BLOCK, THROTTLE (FRONT, MACHINED)BLOCK, THROTTLE (FRONT, MACHINED)
-
57512290 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
67710503 RETAINING RINGRETAINING RING
-
75432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
72010171 LEVER ASSY. (HTR, HI/LO 35.5MM)LEVER ASSY. (HTR, HI/LO 35.5MM)
-
72010208 THROTTLE CONTROL ASSY. (34MM, ALUM)THROTTLE CONTROL ASSY. (34MM, ALUM)
-
85432634 GRIP, H'BAR SNOWGRIP, H'BAR SNOW
-
95431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
104110101 SWITCH, AUX.SHUT OFFSWITCH, AUX.SHUT OFF
-
115246007-067 BAR, HANDLERBAR RACE (BLACK)BAR, HANDLERBAR RACE (BLACK)
-
127518004 SCREWSCREW
-
135133297 CLAMP, HANDLEBARCLAMP, HANDLEBAR
-
147170163 DECAL, ''POLARIS'', HANDELBAR PADDECAL, ''POLARIS'', HANDELBAR PAD
-
142200891 DECAL APPLIC. KIT, VINYLDECAL APPLIC. KIT, VINYL
-
152682949 HANDLEBAR COVER ASSY., RACEHANDLEBAR COVER ASSY., RACE
-
165812322 PAD, HANDLEBAR RACEPAD, HANDLEBAR RACE
-
172010207 MASTER CYLINDER ASSY. [SEE BRAKE]MASTER CYLINDER ASSY. [SEE BRAKE]
-
182460311 GRIP, HEATER ASSY., HI/LOWGRIP, HEATER ASSY., HI/LOW
-
194110107 SWITCH, DIMMERSWITCH, DIMMER
-
202900234 BLOCK KIT (RISER, HB, 4.5'')BLOCK KIT (RISER, HB, 4.5'')
-
217670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
221821193-067 WELD, STEERING POST (BLACK)WELD, STEERING POST (BLACK)
-
237512331 BOLTBOLT
-
241013745-067 WELD, STEERING HOOP RACE (BLACK)WELD, STEERING HOOP RACE (BLACK)
-
257512377 BOLTBOLT
-
267542343 NUT, NYLOCKNUT, NYLOCK
-
277621433 RIVETRIVET
-
285244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
295433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
295433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
305132448 SHIM (LWR.STRG POST, LOWER)SHIM (LWR.STRG POST, LOWER)
-
317080510 FITTING, ZERKFITTING, ZERK
-
325132967 BRACKET, STEERING POST (ALUM, .75W)BRACKET, STEERING POST (ALUM, .75W)
-
335434775 BUSHING, STEER POST (.75W, PLAS)BUSHING, STEER POST (.75W, PLAS)
-
347080424 FITTING, LUBEFITTING, LUBE
