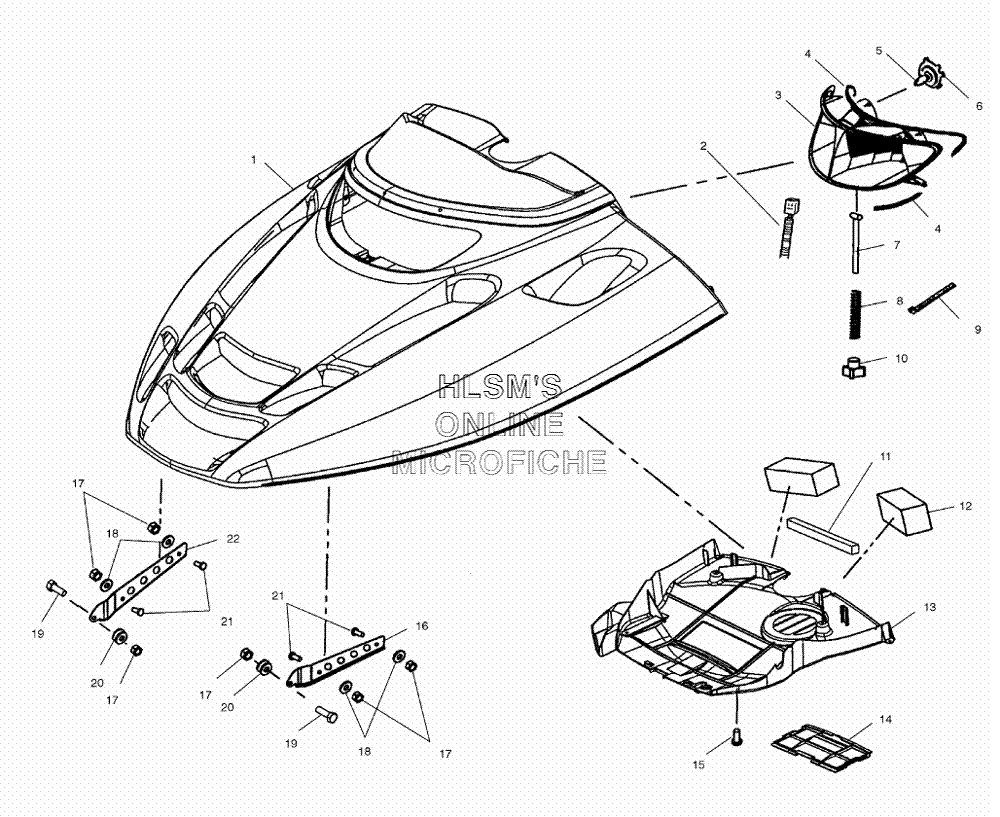

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска
-
№АртикулНазвание
-
12632599-293 HOOD ASSY., RACE (2H, SVC, RED) [INCL. FOAM AND FOIL]HOOD ASSY., RACE (2H, SVC, RED) [INCL. FOAM AND FOIL]
-
22460791 HARNESS, HEADLIGHT EDGE COMMONHARNESS, HEADLIGHT EDGE COMMON
-
32410132 HEADLAMP ASSY., 2, BULB EDGE [INCL. BULBS]HEADLAMP ASSY., 2, BULB EDGE [INCL. BULBS]
-
45812450 FOAM, HEADLIGHT SEAL EDGE (TOP)FOAM, HEADLIGHT SEAL EDGE (TOP)
-
45812450 FOAM, HEADLIGHT SEAL EDGE (BOT)FOAM, HEADLIGHT SEAL EDGE (BOT)
-
52870448 BULB, QUARTZ .HEADLIGHT INDYBULB, QUARTZ .HEADLIGHT INDY
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517872 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
87041954 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
97080138 CABLE TIECABLE TIE
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
115812314 FOAM, PLENUM SEAL FORWARD POSTFOAM, PLENUM SEAL FORWARD POST
-
125811793 FOAM, PREFILTERFOAM, PREFILTER
-
135433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
135811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
135812324 FOIL, PLENUM EDGEFOIL, PLENUM EDGE
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE, UPPER (LEFT BLACK)HINGE, UPPER (LEFT BLACK)
-
177542122 NUT, LOCKNUT, LOCK
-
187558301 WASHERWASHER
-
197512113 SCREWSCREW
-
205332403 SPACER, HINGESPACER, HINGE
-
217512240 BOLTBOLT
-
225243568-067 HINGE, UPPER (RIGHT BLACK)HINGE, UPPER (RIGHT BLACK)
