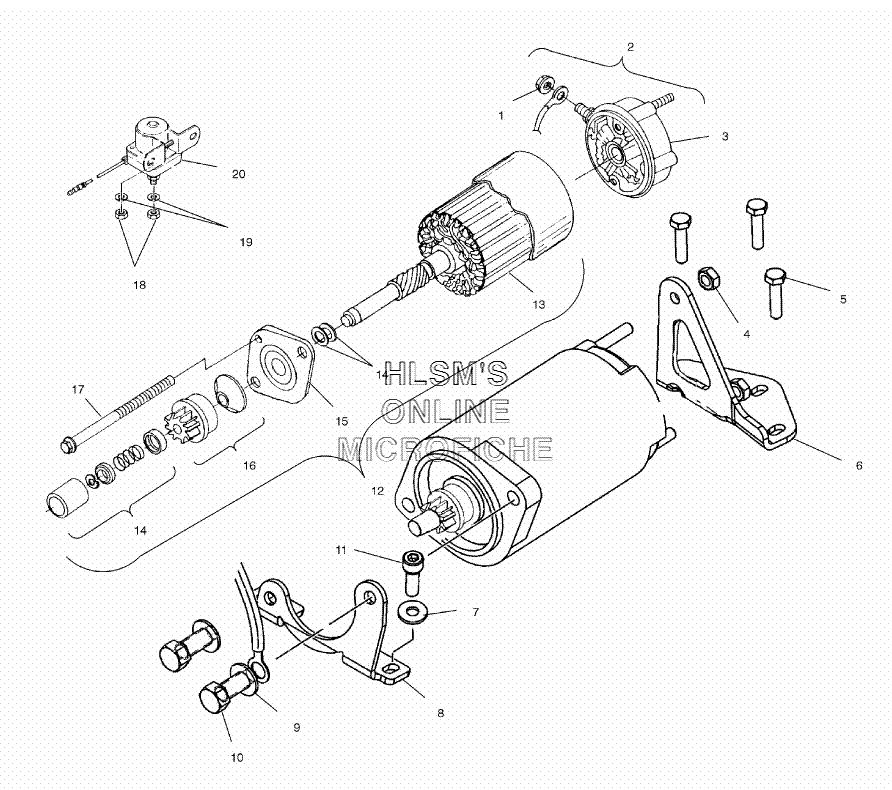

STARTING MOTOR для Polaris 500 XC SP M-10 F/O (S02NE5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17542103 NUT, FLEXLOCNUT, FLEXLOC
-
22200758 COMMUTATOR CAP ASSY. KIT (INCL. 3)COMMUTATOR CAP ASSY. KIT (INCL. 3)
-
32200759 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
47542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
57516823 SCREWSCREW
-
65244250 BRACKET, STARTER, REARBRACKET, STARTER, REAR
-
77555843 WASHER, WROUGHTWASHER, WROUGHT
-
85245467 BRACKET STARTER (FRONT) (S44)BRACKET STARTER (FRONT) (S44)
-
97552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
107512492 SCREWSCREW
-
117517322 SCREWSCREW
-
124170006 MOTOR, STARTER, DOMESTICMOTOR, STARTER, DOMESTIC
-
132200756 ARMATURE ASSY. KITARMATURE ASSY. KIT
-
142200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
152200757 DRIVECAP ASSY. KITDRIVECAP ASSY. KIT
-
162200754 DRIVE ASSY. KITDRIVE ASSY. KIT
-
172200753 SCREW KITSCREW KIT
-
183082939 NUTNUT
-
193080077 WASHER SPRINGWASHER SPRING
-
203083211 SWITCH, MAGNETIC (INCL. 18, 19)SWITCH, MAGNETIC (INCL. 18, 19)
Все узлы модели:
- AIR BOX
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CHAINCASE - REVERSE MODELS
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS (EDGE X)
- DECALS (EDGE)
- DRIVE CLUTCH - MANUAL START
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FRONT TORQUE ARM (M 10)
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL MOUNTING (M 10)
- REAR SUSPENSION (M 10)
- REAR TORQUE ARM (M 10)
- SEAT W/ GAS TANK ASSEMBLY
- SHIFT - REVERSE MODELS
- SHOCK (FRONT TRACK) (M 10)
- SHOCK (IFS) (FOX)
- SHOCK (REAR TRACK) (M 10)
- SKI (M 10)
- STARTER - RECOIL ASSEMBLY
- • STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
