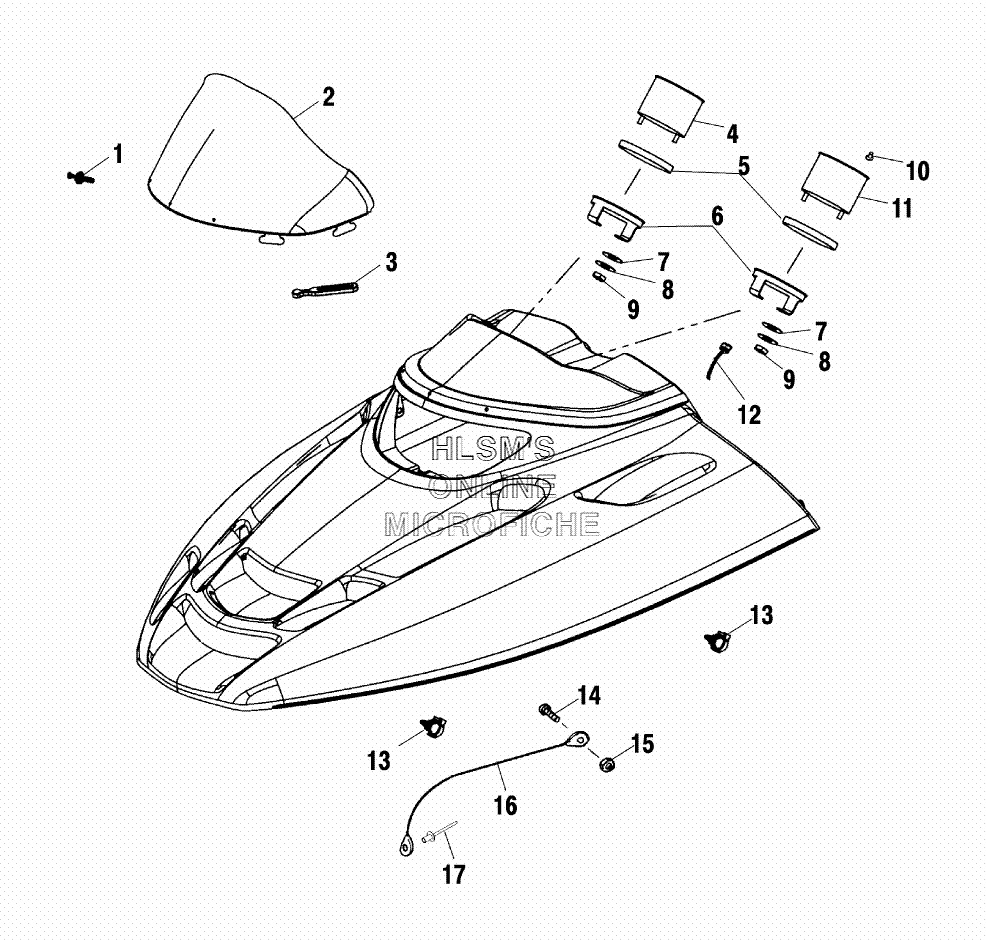

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 500 XC SP M-10 F/O (S02NE5CS) - 2002 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25433517 WINDSHEILD, EDGE SMOKE (15")WINDSHEILD, EDGE SMOKE (15")
-
25434194 WINDSHIELD 13"FLR, SMOKE (EDGE X)WINDSHIELD 13"FLR, SMOKE (EDGE X)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACH, 6 P, W/FUEL LT (WHITE)TACH, 6 P, W/FUEL LT (WHITE)
-
44030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
53280209 CUSHION, TACH/SPEEDOMETER, RUBBERCUSHION, TACH/SPEEDOMETER, RUBBER
-
63280210 BRACKET, TACH/SPEEDOMETER, 5"BRACKET, TACH/SPEEDOMETER, 5"
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER, THREADED (LEFT)KNOB, TRIP ODOMETER, THREADED (LEFT)
-
113280348 SPEEDO, 5", 120MPH, WH, W/OANGSPEEDO, 5", 120MPH, WH, W/OANG
-
114030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
123280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
134010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
147512018 SCREWSCREW
-
157541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
