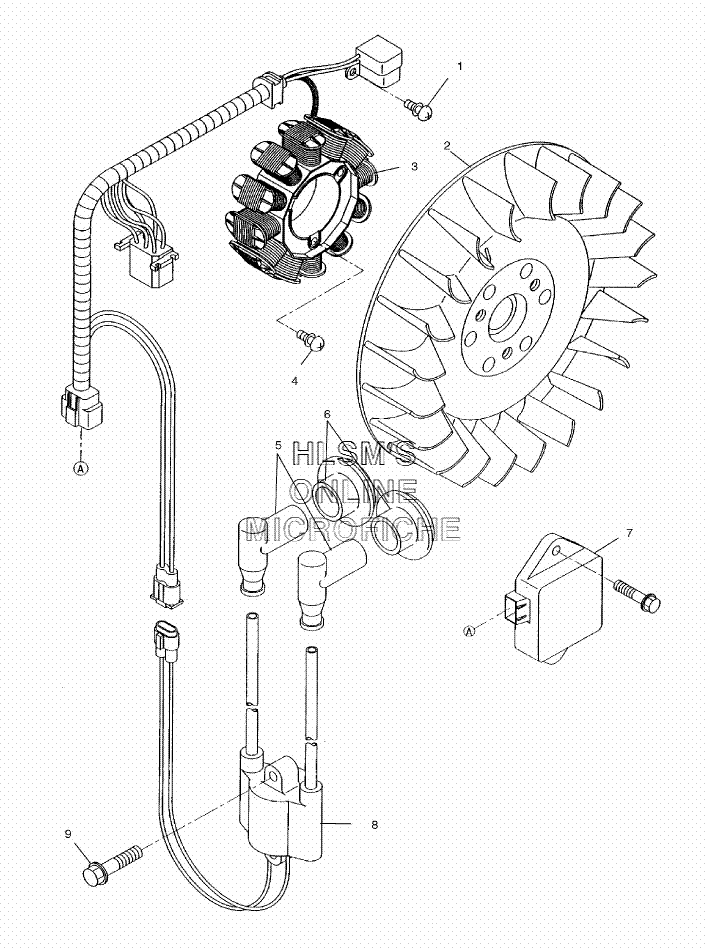

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 550 F/C CLASSIC (S02ND5BS) - 2002 года выпуска
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
23085727 FLYWHEEL ASSY.FLYWHEEL ASSY.
-
33085934 STATORSTATOR
-
43085697 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
53086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
63085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
73087106 CDI SYSTEMCDI SYSTEM
-
83085905 IGNITION COIL COMPL.IGNITION COIL COMPL.
-
93084177 BOLT, FLANGEBOLT, FLANGE
