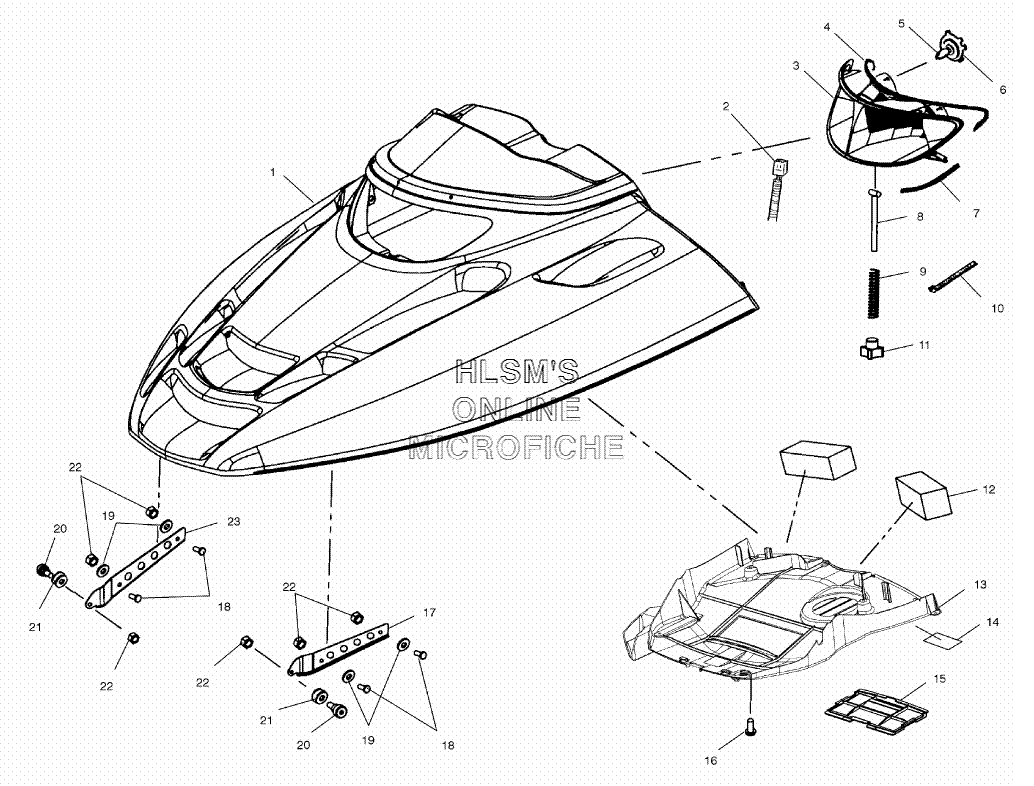

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 550 F/C CLASSIC (S02ND5BS) - 2002 года выпуска
-
№АртикулНазвание
-
12632344-341 HOOD, ASSY. (BLUE) (INCL. FOAM AND FOIL)HOOD, ASSY. (BLUE) (INCL. FOAM AND FOIL)
-
22460791 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
32410132 HEADLAMP ASSY., 2 BULB (INCL. BULBS)HEADLAMP ASSY., 2 BULB (INCL. BULBS)
-
45812175 HEADLIGHT, SEAL ONE PIECEHEADLIGHT, SEAL ONE PIECE
-
52870448 BULB, QUARTZ.HEADLIGHTBULB, QUARTZ.HEADLIGHT
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 HEADLIGHT, SEAT ONE PIECEHEADLIGHT, SEAT ONE PIECE
-
87517872 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
97041954 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
107080138 CABLE TIECABLE TIE
-
117080887 KNOB, HEADLIGHT ADJUST LOCKINGBKNOB, HEADLIGHT ADJUST LOCKINGB
-
125811793 FOAM, PREFILTERFOAM, PREFILTER
-
135433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
147170042 DECAL SUSPENSION SET-UP EDGE (REAR)DECAL SUSPENSION SET-UP EDGE (REAR)
-
155433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
167512068 SCREWSCREW
-
175243567-067 HINGE (UPPER) (LEFT) (BLACK)HINGE (UPPER) (LEFT) (BLACK)
-
187512240 BOLTBOLT
-
197558301 WASHER, FLATWASHER, FLAT
-
207512113 BOLTBOLT
-
215332403 SPACERSPACER
-
227542122 NUT, NYLOCKNUT, NYLOCK
-
235243568-067 HINGE (UPPER) (RIGHT) (BLACK)HINGE (UPPER) (RIGHT) (BLACK)
