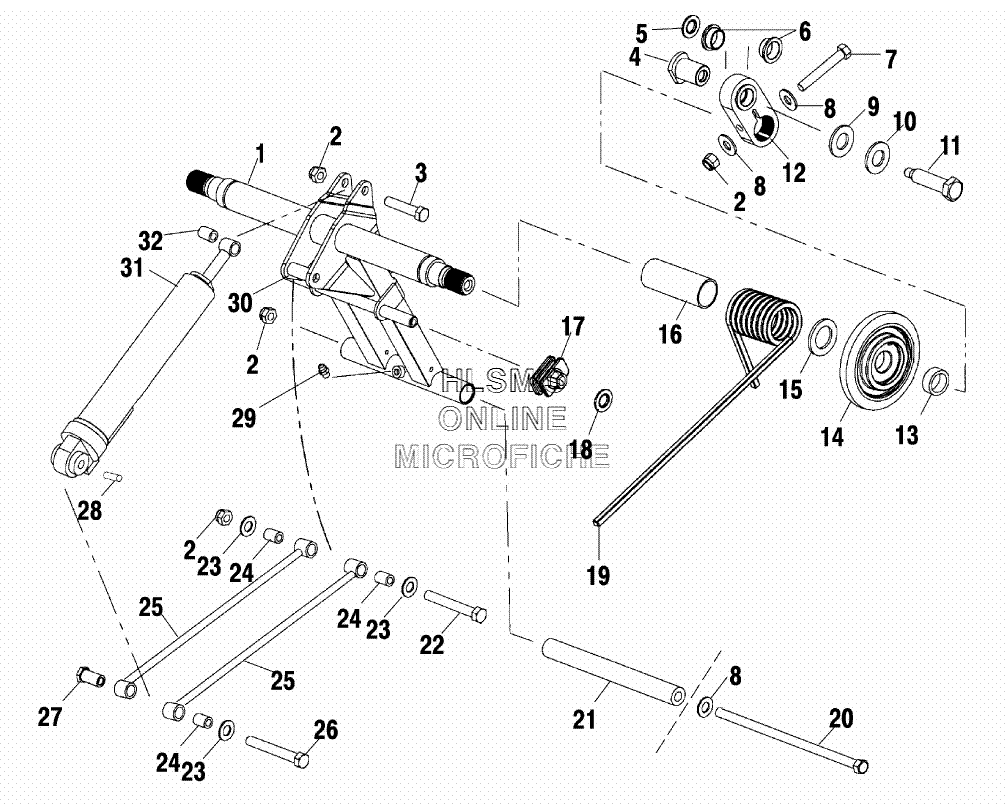

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 XC SP F/O EDGE X (S02NE6ES) - 2002 года выпуска
-
№АртикулНазвание
-
11541561-293 WELD, REAR TORQUE ARM (RED)WELD, REAR TORQUE ARM (RED)
-
11541561-216 WELD, REAR TORQUE ARM (YELLOW)WELD, REAR TORQUE ARM (YELLOW)
-
27542439 NUT, NYLOKNUT, NYLOK
-
37515540 BOLTBOLT
-
45333758 SHAFT, ARMSHAFT, ARM
-
57555945 WASHERWASHER
-
63514331 BUSHING, ARMBUSHING, ARM
-
77515415 BOLTBOLT
-
87555806 WASHERWASHER
-
97555893 WASHERWASHER
-
107552603 WASHERWASHER
-
117517435 BOLTBOLT
-
121541461 ARM, ASSY. (RTA) [INCL. 6]ARM, ASSY. (RTA) [INCL. 6]
-
135132388 SPACER, WHEELSPACER, WHEEL
-
141590278 WHEEL ASSY., PLAIN (BLACK)WHEEL ASSY., PLAIN (BLACK)
-
157555871 WASHER, REVERSEWASHER, REVERSE
-
165431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
175432983 ROLLER, SPRING (ADJ, SQUARE, X10)ROLLER, SPRING (ADJ, SQUARE, X10)
-
187080394 CLIPCLIP
-
197041942-067 SPRING, TORS. (LEFT STD .375/77]SPRING, TORS. (LEFT STD .375/77]
-
197041943-067 SPRING, TORS. (RIGHT STD .375/77]SPRING, TORS. (RIGHT STD .375/77]
-
197041629-067 SPRING, TORSION (LEFT BLACK OPT .359/77]SPRING, TORSION (LEFT BLACK OPT .359/77]
-
197041630-067 SPRING, TORSION(RIGHT BLACK OPT .359/77]SPRING, TORSION(RIGHT BLACK OPT .359/77]
-
197041940-067 SPRING, TORS, (LEFT, BLACK OPT .405/77]SPRING, TORS, (LEFT, BLACK OPT .405/77]
-
197041941-067 SPRING, TORS, (RIGHT, BLACK OPT .405/77]SPRING, TORS, (RIGHT, BLACK OPT .405/77]
-
207517232 SCREWSCREW
-
215333873 SHAFT (.740X.390X7.055, 6066)SHAFT (.740X.390X7.055, 6066)
-
227515514 BOLTBOLT
-
237555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
245132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
251541479-067 SHOCK ROD (12.850, BLACK)SHOCK ROD (12.850, BLACK)
-
267517851 SCREW (3/8, 24X3.75, HX/P, 80, GR8Y)SCREW (3/8, 24X3.75, HX/P, 80, GR8Y)
-
275132390 BUSHING, NUT (.616X1.12X.875)BUSHING, NUT (.616X1.12X.875)
-
285333907 SLEEVE (.385X.560X1.30)SLEEVE (.385X.560X1.30)
-
297080424 FITTING, LUBE.FITTING, LUBE.
-
305333904 SPACER (.397X.562X1.250)SPACER (.397X.562X1.250)
-
317041846 SHOCK (R/T, FOX, PPS)SHOCK (R/T, FOX, PPS)
-
317042196 SHOCK, REAR TRACK (REMOTERES, FOX)SHOCK, REAR TRACK (REMOTERES, FOX)
-
325010422 BUSHINGBUSHING
