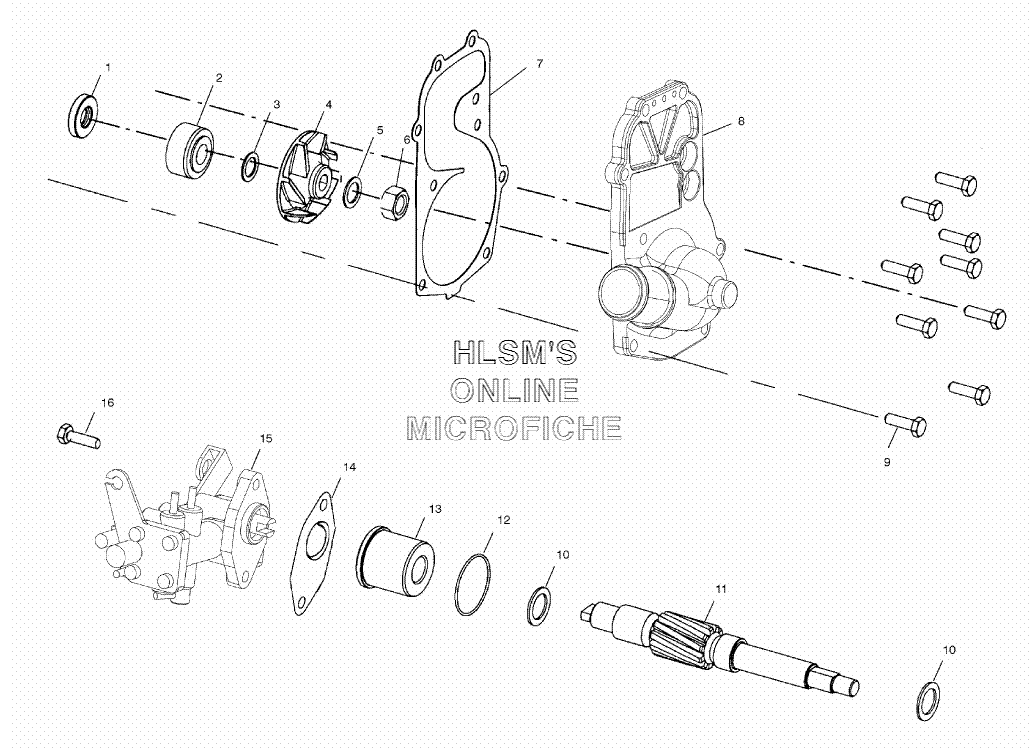

WATER PUMP/OIL PUMP для Polaris 600 XC SP F/O EDGE X (S02NE6ES) - 2002 года выпуска
-
№АртикулНазвание
-
15411197 SEAL (TYPE S, ARS)SEAL (TYPE S, ARS)
-
23610067 SEAL, WATERPUMPSEAL, WATERPUMP
-
37556006 WASHER, FLAT (S.S.)WASHER, FLAT (S.S.)
-
45432330 IMPELLER, WATERPUMPIMPELLER, WATERPUMP
-
57555874 WASHER, FLAT (S.S.)WASHER, FLAT (S.S.)
-
67546804 NUT, HEXNUT, HEX
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER, WATERPUMP (SNOW HI FLOW)COVER, WATERPUMP (SNOW HI FLOW)
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFT (FLANGED)BRNG, PUMP SHAFT (FLANGED)
-
145811789 GASKET, OIL PUMPGASKET, OIL PUMP
-
152540097 OIL PUMP ASSY.OIL PUMP ASSY.
-
167517277 SCREWSCREW
