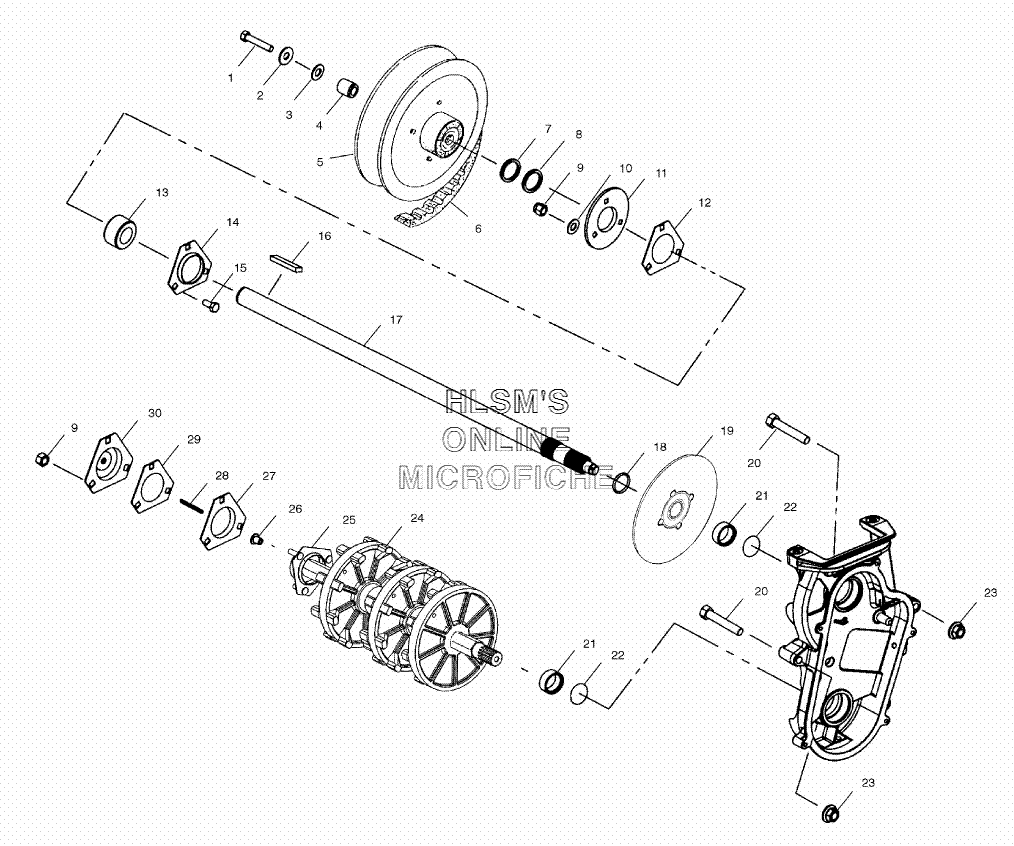

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 CLASSIC BUILT AFTER 1/1/01 (S02ND7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020913 SPACERSPACER
-
51321927 DRIVEN CLUTCH ASSY. (R11) [SEE DRIVEN CLUTCH REF. 9]DRIVEN CLUTCH ASSY. (R11) [SEE DRIVEN CLUTCH REF. 9]
-
63211080 BELT DRIVEBELT DRIVE
-
75020837 SPACERSPACER
-
87555864 BUSHINGBUSHING
-
97556509 WASHER SPECIALWASHER SPECIAL
-
107542324 NUTNUT
-
117558402 WASHER STEELWASHER STEEL
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLTBOLT
-
177721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
181332220 JACKSHAFT ASSY. (15 SPL W/M15 BRG) [INCL. 14, 19]JACKSHAFT ASSY. (15 SPL W/M15 BRG) [INCL. 14, 19]
-
197710422 RING, RETAININGRING, RETAINING
-
201910403 BRAKE DISC (SNOW, 6385 CR) ASSY.BRAKE DISC (SNOW, 6385 CR) ASSY.
-
217515428 BOLTBOLT
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247542423 NUTNUT
-
251590340 DRIVE SHAFT, EDGE ASSY. [INCL. 26, 27]DRIVE SHAFT, EDGE ASSY. [INCL. 26, 27]
-
261012945 FLANGETTE ASSY. (W/SCREWS)FLANGETTE ASSY. (W/SCREWS)
-
273280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
285243529 FLANGETTE, OFFSET, W/HOLEFLANGETTE, OFFSET, W/HOLE
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
317080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
