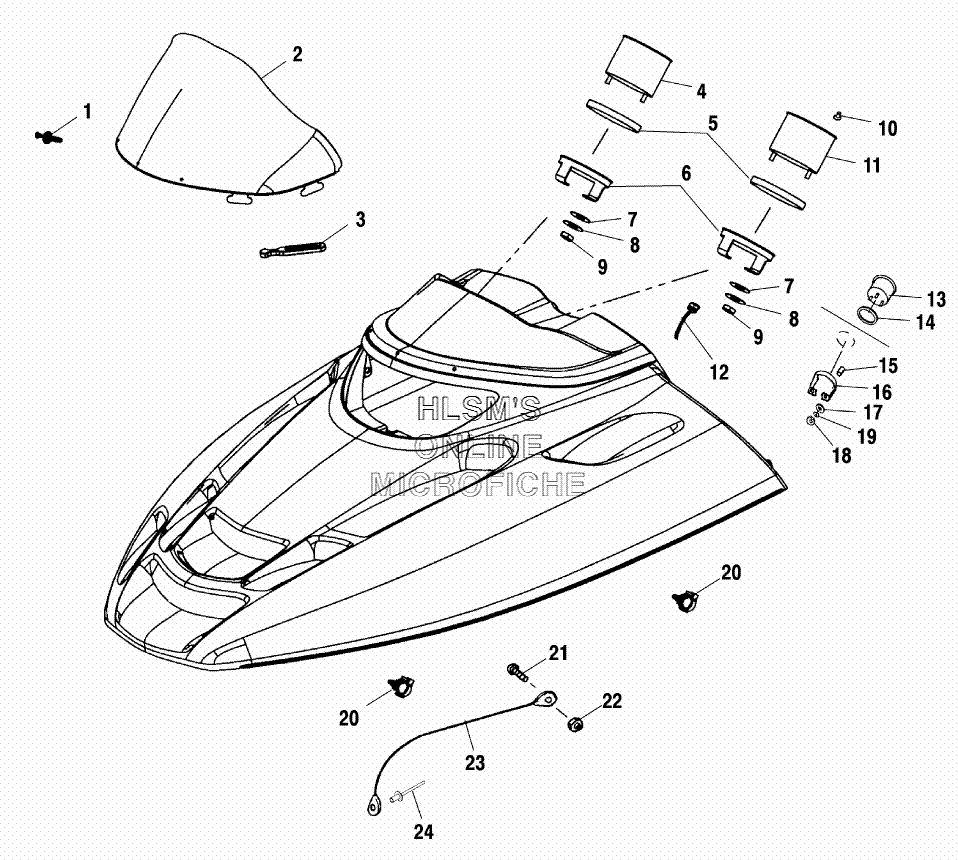

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 700 CLASSIC BUILT AFTER 1/1/01 (S02ND7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI, LOC.RIVET, PLASTI, LOC.
-
25433517 WINDSHIELD (15''FLR SMK, EDGE)WINDSHIELD (15''FLR SMK, EDGE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACH (6 P, WHITE W/FUEL LT)TACH (6 P, WHITE W/FUEL LT)
-
44030015 BULB (TAILLIGHT/TACH/SPEEDO)BULB (TAILLIGHT/TACH/SPEEDO)
-
53280209 CUSHION (TACH/SPEEDO, RUBBER)CUSHION (TACH/SPEEDO, RUBBER)
-
63280210 BRACKET (TACH/SPEEDO, 5'')BRACKET (TACH/SPEEDO, 5'')
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER (LEFT THD.)KNOB, TRIP ODOMETER (LEFT THD.)
-
113280348 SPEEDO (5'', 120MPH, WH, W/OANG)SPEEDO (5'', 120MPH, WH, W/OANG)
-
114030015 BULB (TAILLIGHT/TACH/SPEEDO)BULB (TAILLIGHT/TACH/SPEEDO)
-
123280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
133280334 GUAGE, FUEL (2''BACKLIT)GUAGE, FUEL (2''BACKLIT)
-
134060139 FUSEFUSE
-
143280230 CUSHION, FUELGAUGE (2'', RUBBER)CUSHION, FUELGAUGE (2'', RUBBER)
-
153280228 SPACER, BRACKET (FUELGAUGE)SPACER, BRACKET (FUELGAUGE)
-
163280229 BRACKET, FUELGAUGE (2'')BRACKET, FUELGAUGE (2'')
-
173280231 WASHERWASHER
-
183280232 NUTNUT
-
193280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
204010589 CLIP, PLASTIC, DART NYLONCLIP, PLASTIC, DART NYLON
-
217512018 SCREWSCREW
-
227541925 NUTNUT
-
237080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
247661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
