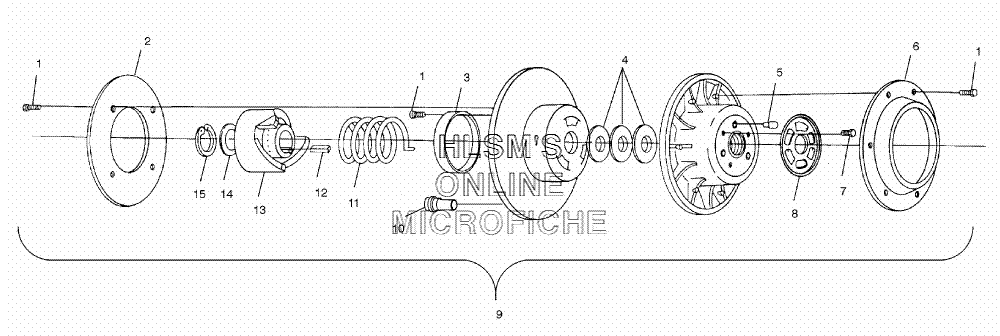

CLUTCH - DRIVEN для Polaris 700 XC SP M-10 F/O (S02NE7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE, DRIVEN VENTEDPLATE, DRIVEN VENTED
-
33569803 BUSHING, D.U.BUSHING, D.U.
-
47556804 WASHER (.03)WASHER (.03)
-
47555898 WASHER (.02)WASHER (.02)
-
47556076 WASHER (.025)WASHER (.025)
-
47555865 WASHER, DRIVE CLUTCH (.075)WASHER, DRIVE CLUTCH (.075)
-
55020653 PIN, CLUTCHPIN, CLUTCH
-
65243157 CAP, DRIVENCAP, DRIVEN
-
65243157 CAP, DRIVENCAP, DRIVEN
-
77515133 SCREWSCREW
-
85222878 CAM, DRIVEN ADJUSTABLECAM, DRIVEN ADJUSTABLE
-
91321927 DRIVEN CLUTCH ASSY.DRIVEN CLUTCH ASSY.
-
105430466 BUTTON, RAMPBUTTON, RAMP
-
117041646 SPRING, CLUTCH (SILVER/BLUE)SPRING, CLUTCH (SILVER/BLUE)
-
127721103 KEY, SQUAREKEY, SQUARE
-
135131298 RAMP, DRIVENRAMP, DRIVEN
-
147556804 WASHERWASHER
-
157714804 RING, RETAININGRING, RETAINING
