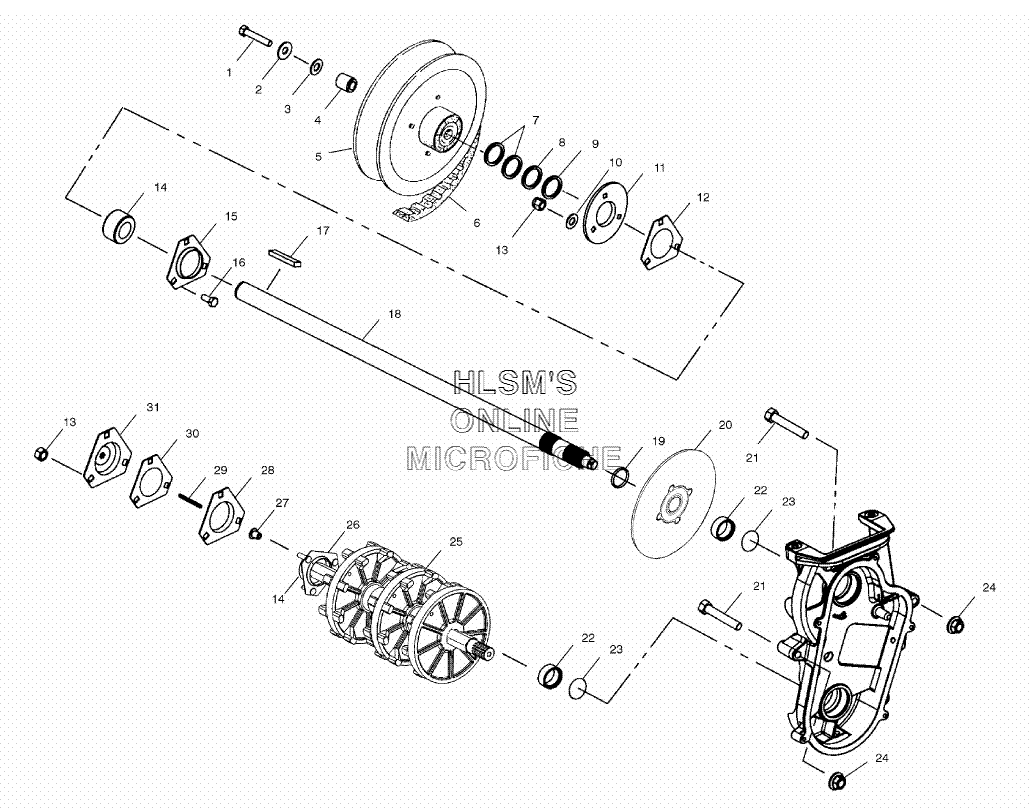

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 XC SP M-10 F/O (S02NE7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17517820 BOLT (MANUAL START)BOLT (MANUAL START)
-
17515369 BOLT (ELECTRIC START)BOLT (ELECTRIC START)
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACER (MANUAL START)SPACER (MANUAL START)
-
45020913 SPACER (ELECTRIC START)SPACER (ELECTRIC START)
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHER (MANUAL START)WASHER (MANUAL START)
-
75020837 SPACER (ELECTRIC START)SPACER (ELECTRIC START)
-
87555864 BUSHINGBUSHING
-
97556509 WASHER, SPECIALWASHER, SPECIAL
-
107558402 WASHER, STEELWASHER, STEEL
-
115241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
137542324 NUTNUT
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLTBOLT
-
177721128 KEYKEY
-
181332220 JACKSHAFT ASSY. (15 SPLINE) (INCL. 14, 19)JACKSHAFT ASSY. (15 SPLINE) (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910403 BRAKE DISC ASSY.BRAKE DISC ASSY.
-
217515428 BOLTBOLT
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247542423 NUTNUT
-
251590314 DRIVESHAFT ASSY. (INCL. 26, 27)DRIVESHAFT ASSY. (INCL. 26, 27)
-
261012945 FLANGETTE ASSY. W/SCREWSFLANGETTE ASSY. W/SCREWS
-
273280019 BUSHING, METAL SPEEDOMETERBUSHING, METAL SPEEDOMETER
-
285243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
