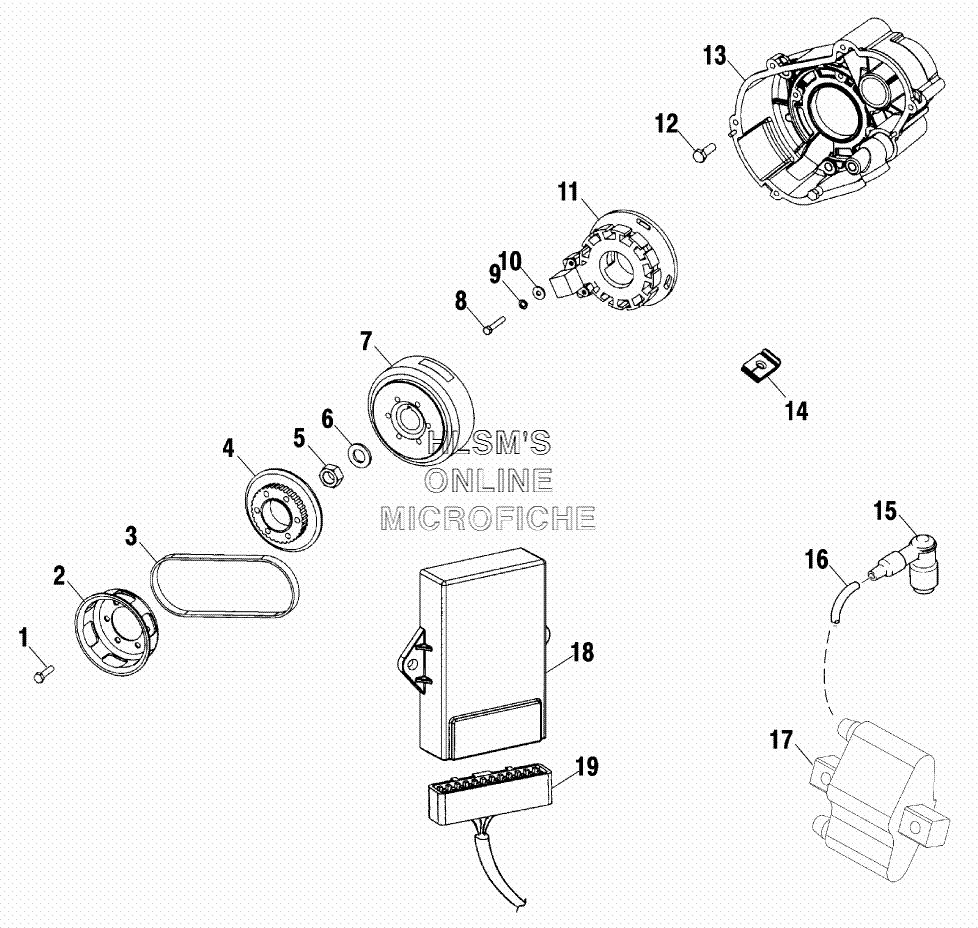

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 RMK F/O 151 STOCK (S02NL8CSA) - 2002 года выпуска
-
№АртикулНазвание
-
17516823 SCREWSCREW
-
23021144 PULLEY, RECOILPULLEY, RECOIL
-
35411998 WATERPUMP BELT KITWATERPUMP BELT KIT
-
45630824 PULLEY, WATER PUMP DRIVEPULLEY, WATER PUMP DRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010629 FLYWHEEL, IGNITION W/O GLUEFLYWHEEL, IGNITION W/O GLUE
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCKWASHER, LOCK
-
107555970 WASHER, FLATWASHER, FLAT
-
114010297 STATOR, IGNITIONSTATOR, IGNITION
-
127516734 SCREWSCREW
-
131202161 HOUSING, IGNITION ASSY.HOUSING, IGNITION ASSY.
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020155 CAP, SPARKPLUGCAP, SPARKPLUG
-
164010124-305 WIRE, IGNITIONWIRE, IGNITION
-
174060229 COIL, IGNITIONCOIL, IGNITION
-
182201924 CDI KIT (INCL. 18, NYOGEL AND DECAL)CDI KIT (INCL. 18, NYOGEL AND DECAL)
-
187077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
194010549 HARNESS, IGNITIONHARNESS, IGNITION
