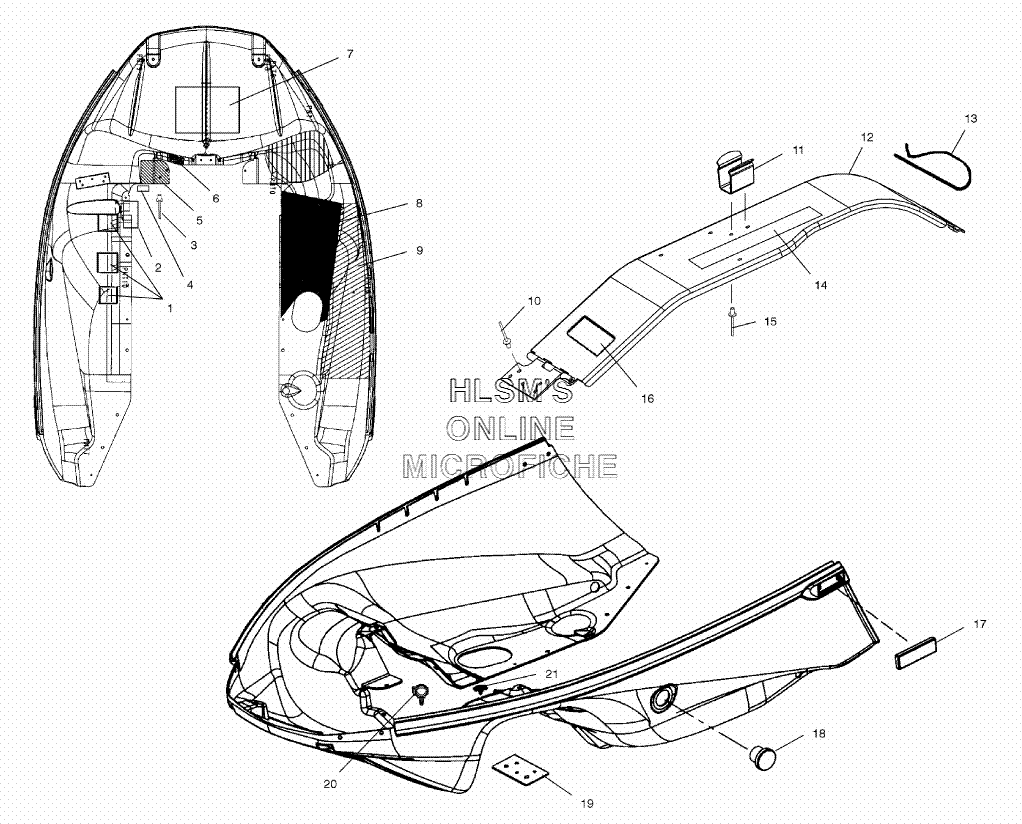

NOSEPAN ASSEMBLY #1 для Polaris 800 RMK F/O 151 STOCK (S02NL8CSA) - 2002 года выпуска
-
№АртикулНазвание
-
17670130 SPEED-CLIP-''U'' TYPESPEED-CLIP-''U'' TYPE
-
25811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
37621435 RIVETRIVET
-
47080963 RETAINER, ''J''CLPRETAINER, ''J''CLP
-
55812020 FOIL, TAPE NOSEPANFOIL, TAPE NOSEPAN
-
65810949 FOIL, TAPE (1.5X6)FOIL, TAPE (1.5X6)
-
75812036 FOIL, NOSEPAN (10X10)FOIL, NOSEPAN (10X10)
-
85812019 FOIL, TAPE NOSEPAN (LOWER/RIGHT)FOIL, TAPE NOSEPAN (LOWER/RIGHT)
-
95812018 FOIL, TAPE NOSEPAN (UPPER/RIGHT)FOIL, TAPE NOSEPAN (UPPER/RIGHT)
-
107621402 POP RIVETPOP RIVET
-
115222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
121013069 CLUTCH GUARD ASSY.CLUTCH GUARD ASSY.
-
137080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
147075350 DECAL, 97-99 ENG/CLUTCHDECAL, 97-99 ENG/CLUTCH
-
157621429 RIVETRIVET
-
167170043 DECAL, TROUBLE SHOOTDECAL, TROUBLE SHOOT
-
172670134 REFLECTOR ASSY. (AMBER)REFLECTOR ASSY. (AMBER)
-
185433926 PLUG, NOSE PANPLUG, NOSE PAN
-
195211722 PLATE, BACKER CLUTCH GUARDPLATE, BACKER CLUTCH GUARD
-
204020149 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
217670131 PLUG, NYLONPLUG, NYLON
