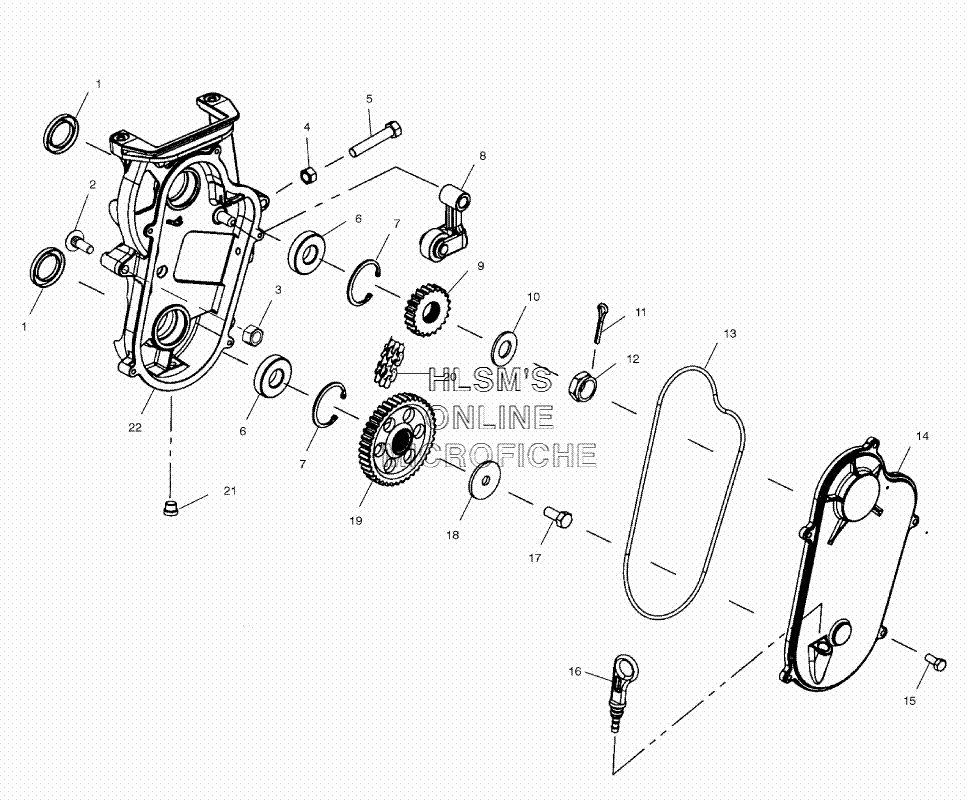

CHAINCASE ASSEMBLY для Polaris 800 XC SP F/O BUILT AFTER 3/1/01 (S02NP8CS) - 2002 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27515477 BOLTBOLT
-
37542451 NUT, NYLOCNUT, NYLOC
-
45132237 NUT, CHAIN ADJUSTER (3/8-16)NUT, CHAIN ADJUSTER (3/8-16)
-
57512470 SCREWSCREW
-
63514309 BEARING, BALLBEARING, BALL
-
77718406 RING, RETAININGRING, RETAINING
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
85630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
93221102 SPROCKET (25 TEETH) 3/4W, 15 SPL, HV, PMSPROCKET (25 TEETH) 3/4W, 15 SPL, HV, PM
-
107571620 WASHER, SLOTTEDWASHER, SLOTTED
-
117661401 COTTER PINCOTTER PIN
-
127542811 NUTNUT
-
135411497 GASKET, CRANKCASE O-RINGGASKET, CRANKCASE O-RING
-
145132368 COVER, CHAINCASE 7.92 CD, ALUMCOVER, CHAINCASE 7.92 CD, ALUM
-
157512242 SCREWSCREW
-
161332250 DIPSTICK W/MAGNET, EDGE ASSY.DIPSTICK W/MAGNET, EDGE ASSY.
-
177517979 SCREW (5/16-18 3/4 HXHD/NYL, GR8-P)SCREW (5/16-18 3/4 HXHD/NYL, GR8-P)
-
187571618 WASHERWASHER
-
193222099 SPROCKET (40/15 TEETH) SPL, HYVO, PMSPROCKET (40/15 TEETH) SPL, HYVO, PM
-
203221108 CHAIN, HYVO (23-149, 76P, 3/4W)CHAIN, HYVO (23-149, 76P, 3/4W)
-
217052115 PLUGPLUG
-
225132773 CHAINCASE 7.92 CD, ALUMCHAINCASE 7.92 CD, ALUM
