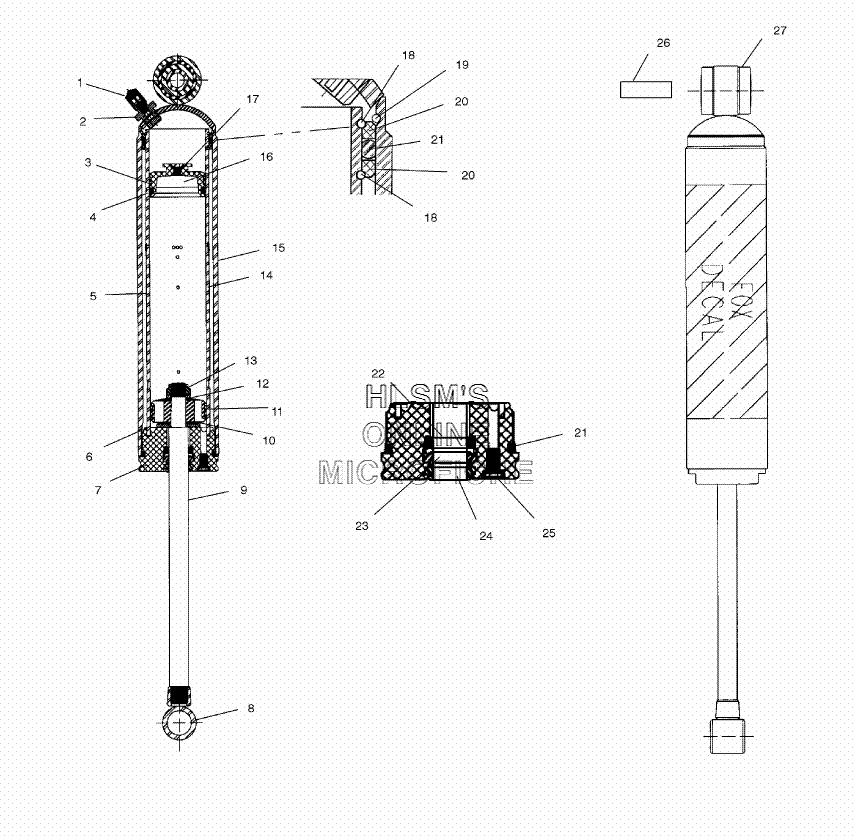

SUSPENSION - FOX SHOCK - GAS- REAR TRACK для Polaris 800 XC SP F/O BUILT AFTER 3/1/01 (S02NP8CS) - 2002 года выпуска
-
№АртикулНазвание
-
1A7041846 SHOCK, R/T, FOX, PPSSHOCK, R/T, FOX, PPS
-
11500210 CAP, SHRADER VALVECAP, SHRADER VALVE
-
21500206 VALVE, AIR COMPLETEVALVE, AIR COMPLETE
-
31500006 RING, PISTON, FLOATING, FOXRING, PISTON, FLOATING, FOX
-
41500003 O-RING, ENDCAP, FOXO-RING, ENDCAP, FOX
-
51500306 VALVE, CHECK, NBR DURO A 90VALVE, CHECK, NBR DURO A 90
-
61500459 O-RING (.070CSX1.489ID)O-RING (.070CSX1.489ID)
-
71500334 BEARING, W/P.S. GROOVEBEARING, W/P.S. GROOVE
-
81500302 EYELET (.88W 1.38TLG 808-05-002)EYELET (.88W 1.38TLG 808-05-002)
-
91500333 SHAFT (.5X8.35 TLG)SHAFT (.5X8.35 TLG)
-
101500017 PLATE, TOP OUTPLATE, TOP OUT
-
111500002 DAMPER, PISTONRING, FOXDAMPER, PISTONRING, FOX
-
121500015 BUSHING, BACKUPBUSHING, BACKUP
-
131500016 NUT, LOCKNUT, LOCK
-
141500331 BODY ASSY., INNER P.S.BODY ASSY., INNER P.S.
-
151500332 BODY ASSY., OUTER P.S.BODY ASSY., OUTER P.S.
-
161500187 PISTON, FLOATINGPISTON, FLOATING
-
171500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
181500097 RING, RETAIN. (FOX)RING, RETAIN. (FOX)
-
191500236 RING, RETAININGRING, RETAINING
-
201500336 COLLAR, ALUMCOLLAR, ALUM
-
211500228 SEAL, O-RINGSEAL, O-RING
-
221500297 SEAL, Q-RING (.139CS 035-00-206)SEAL, Q-RING (.139CS 035-00-206)
-
231500025 U-CUP-4300 URETH,036-01-006U-CUP-4300 URETH,036-01-006
-
241500024 WIPER, CLR, OUTERWIPER, CLR, OUTER
-
251500295 SCREW (#10-24X.375 800-10-000)SCREW (#10-24X.375 800-10-000)
-
251500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
261500311 SLEEVE (.56X.81X1.28)SLEEVE (.56X.81X1.28)
-
271500307 BUSHING (.35ILG, .63TLG)BUSHING (.35ILG, .63TLG)
