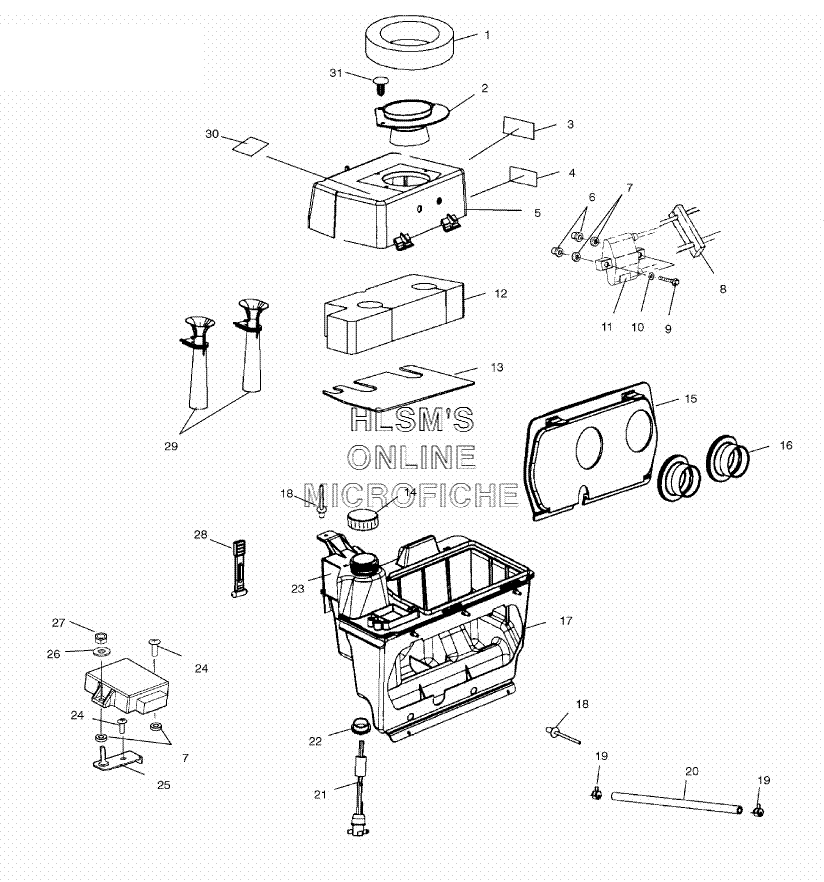

AIR BOX для Polaris 800 XC SP M-10 F/O (S02NE8CS) - 2002 года выпуска
-
№АртикулНазвание
-
15811983 FOAM, AIR BOX, CHIMNEY, EDGEFOAM, AIR BOX, CHIMNEY, EDGE
-
25433734 DUCT, AIR INLETDUCT, AIR INLET
-
37073820 DECAL, ADJ.DRIVEN CLUTCHDECAL, ADJ.DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
51253324 AIR SILENCER COVER ASSY. [INCL. 2, 3, 4, 30, 31]AIR SILENCER COVER ASSY. [INCL. 2, 3, 4, 30, 31]
-
67547103 NUTNUT
-
77555932 WASHER, NYLONWASHER, NYLON
-
87080471 T-CLIPT-CLIP
-
97517610 SCREWSCREW
-
107552604 WASHERWASHER
-
117077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
125811979 FOAM, AIR BOX, PLATEFOAM, AIR BOX, PLATE
-
135433665 PLATE, INTAKE, EDGEPLATE, INTAKE, EDGE
-
141240094 CAP, OIL, VENTED/CUSTOM COLORCAP, OIL, VENTED/CUSTOM COLOR
-
155433690 PLATE, CARB ADAPTERPLATE, CARB ADAPTER
-
165411676 BOOT, CARB., MIKUNI (TM40)BOOT, CARB., MIKUNI (TM40)
-
171253336 AIR SILENCER ASSY.AIR SILENCER ASSY.
-
187621472 RIVETRIVET
-
197080307 CLAMPCLAMP
-
208450003-1525 FUEL LINE (1/4 ID 1525 CM.)FUEL LINE (1/4 ID 1525 CM.)
-
214010224 FITTING, OIL SENDERFITTING, OIL SENDER
-
227052305 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
237079003 DECAL, OIL VESDECAL, OIL VES
-
247512098 SCREWSCREW
-
251013201 WELD, BRACKET, KOKUSAN, CDI, TPSWELD, BRACKET, KOKUSAN, CDI, TPS
-
267555746 BURR, RIVETBURR, RIVET
-
277541925 NUTNUT
-
285433150 STRAP, RUBBERSTRAP, RUBBER
-
295433662 TUBE, INTAKE, OUTERTUBE, INTAKE, OUTER
-
307075351 DECAL, CAUTION, AIR BOXDECAL, CAUTION, AIR BOX
-
317670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
Все узлы модели:
- • AIR BOX
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CHAINCASE (REVERSE MODELS)
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVEN
- CLUTCH DRIVE (ELECTRIC START MODELS)
- CLUTCH DRIVE (MANUAL START MODELS)
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DECALS (EDGE X)
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SHIFT LINKAGE
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK AND RESERVOIR (REAR TRACK)
- SUSPENSION - SHOCK COMPRESSION DAMPING RESERVOIR
- SUSPENSION SHOCK (FRONT TRACK EDGE)
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
